Instrument Panel Harness-Clock Spring
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

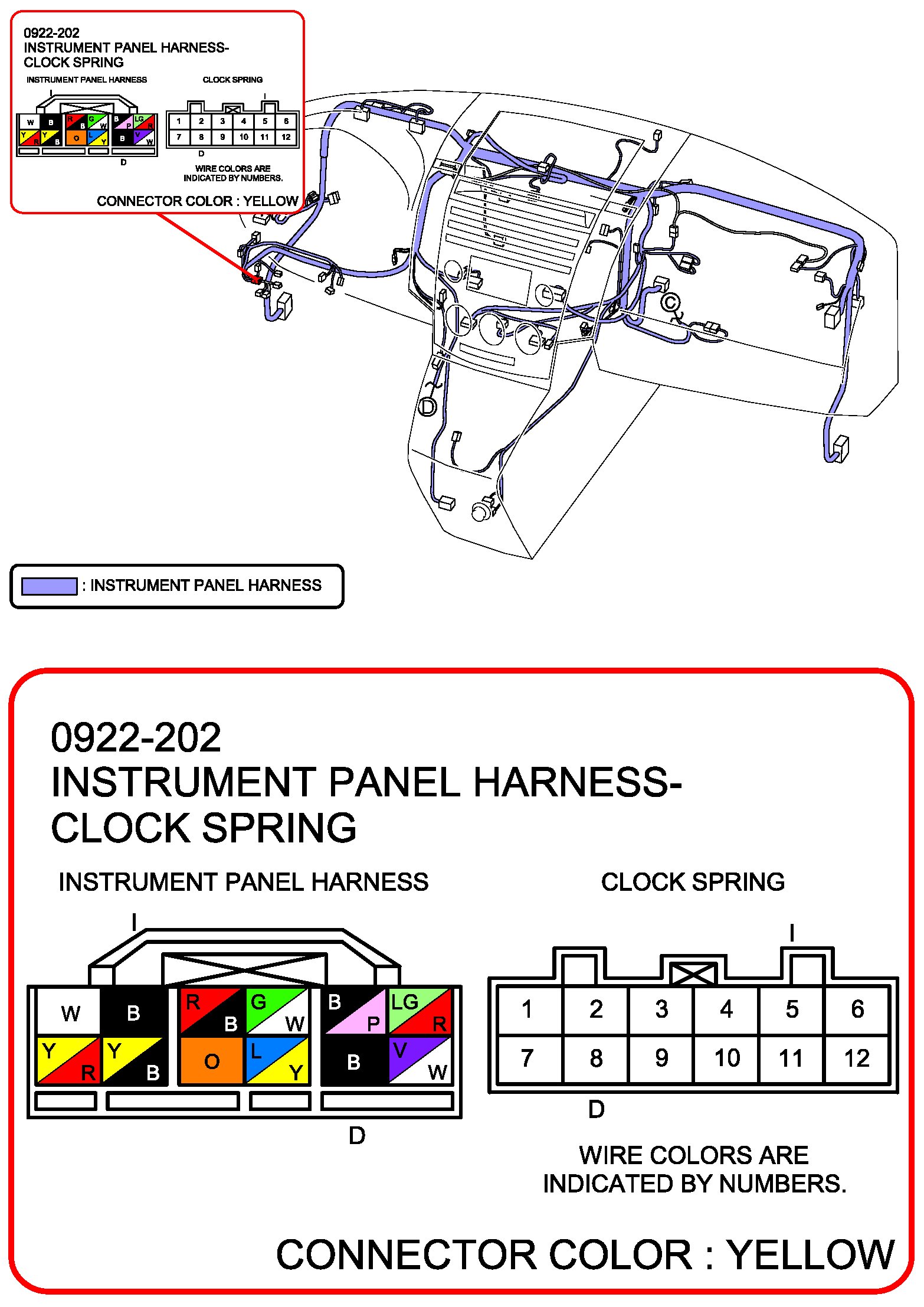

Instrument Panel Harness-Clock Spring
Instrument Panel Harness-Clock Spring:
