Power Locks

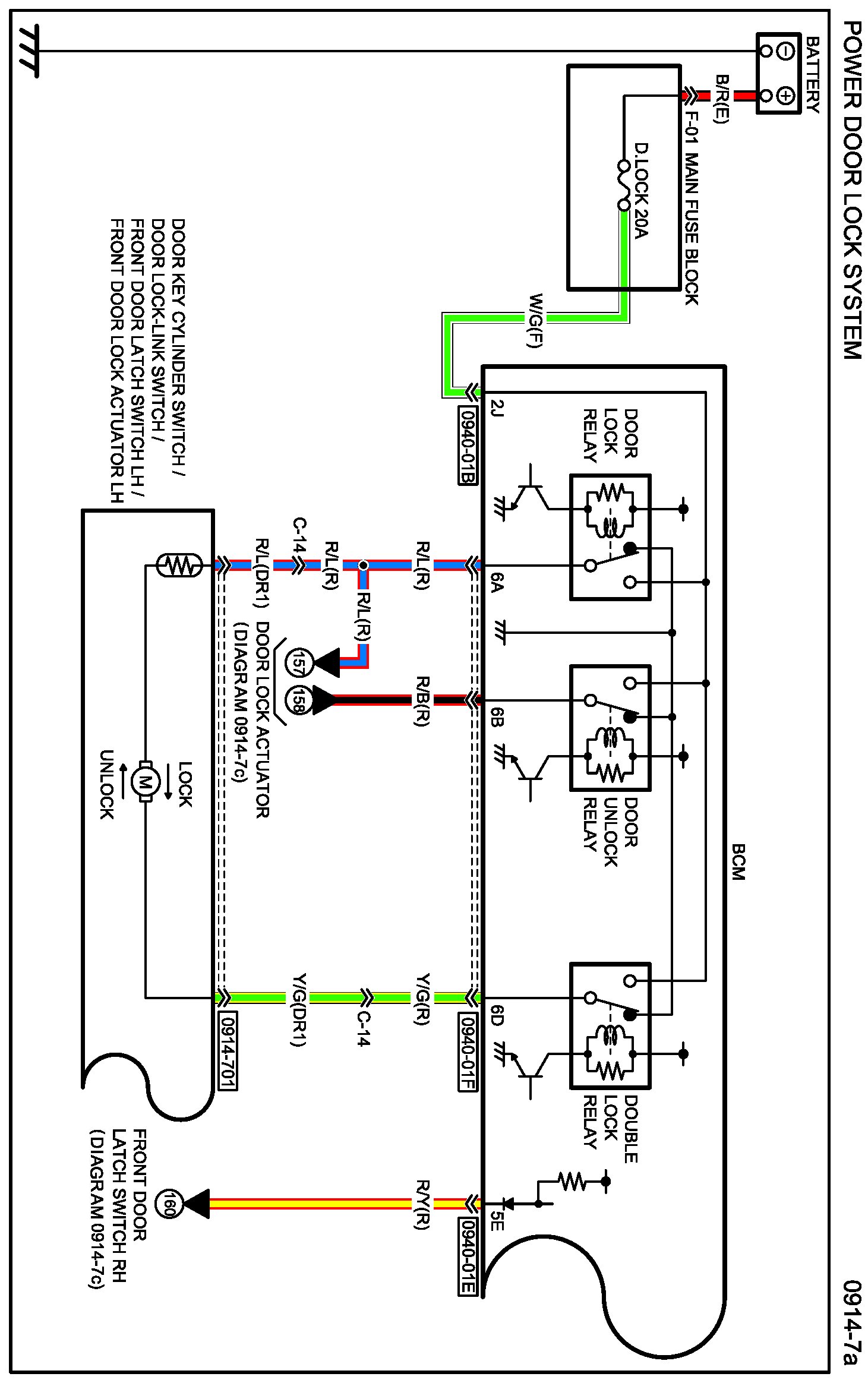

Diagram 0914-7a:

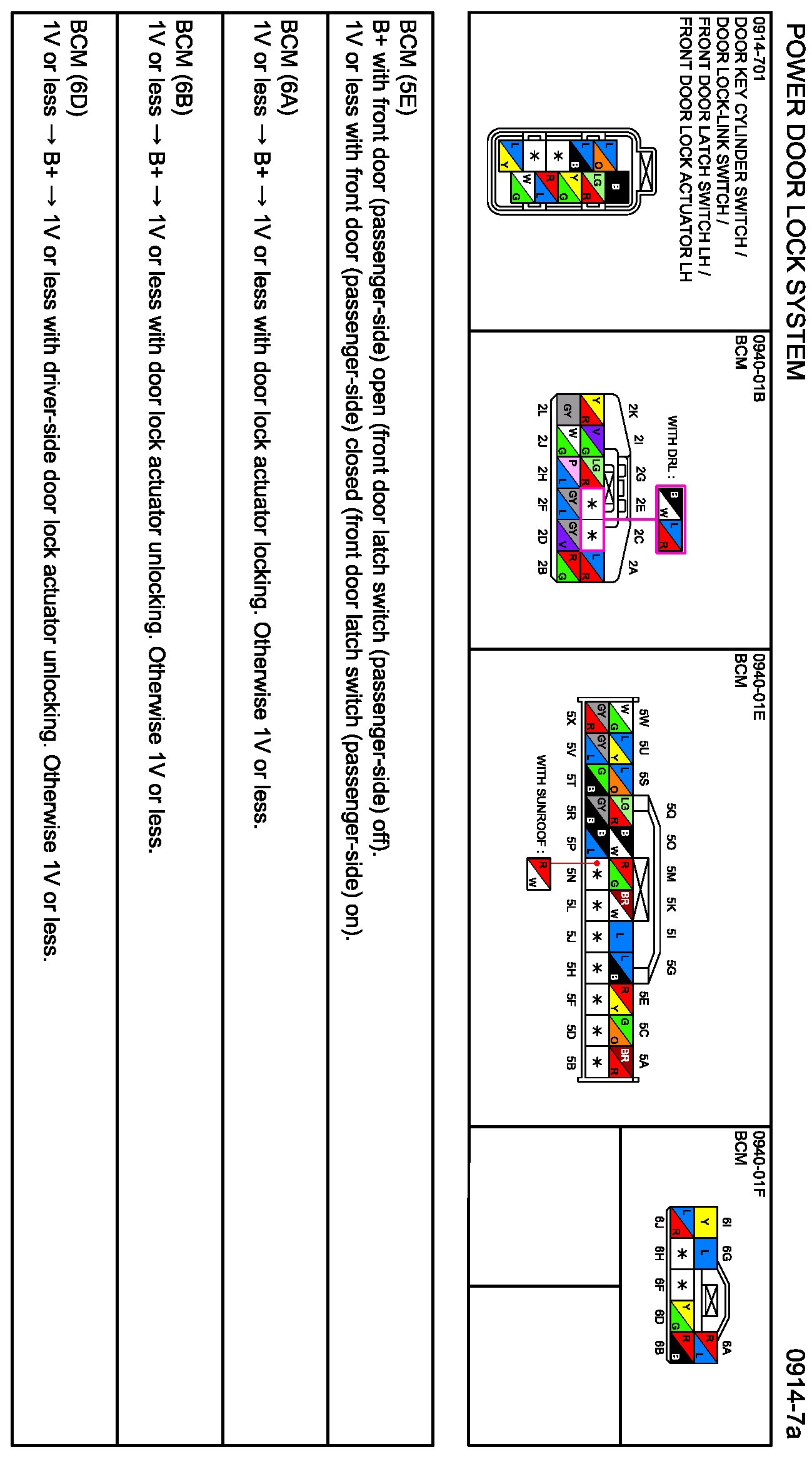

Connectors 0914-7a:

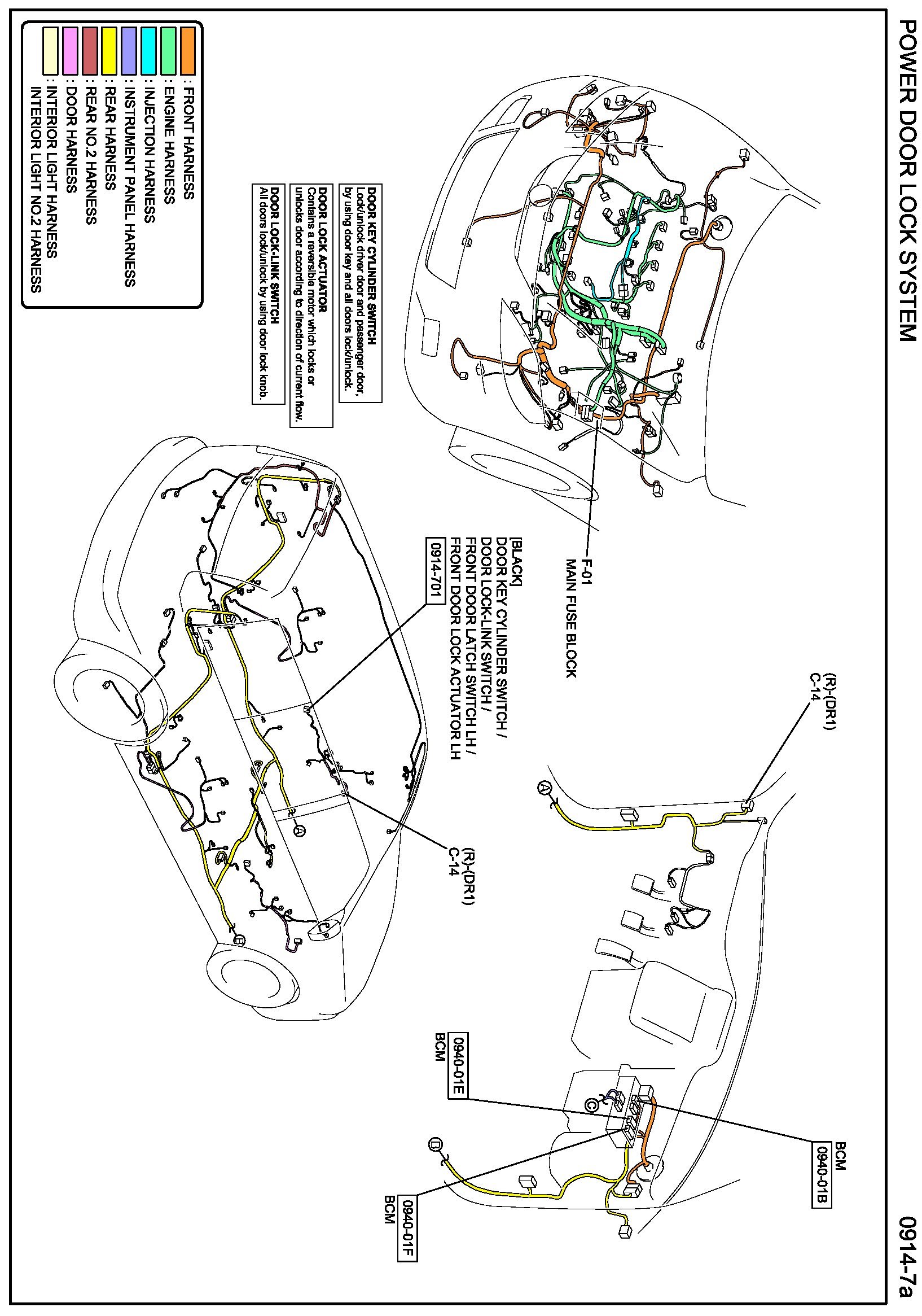

Routing View 0914-7a:

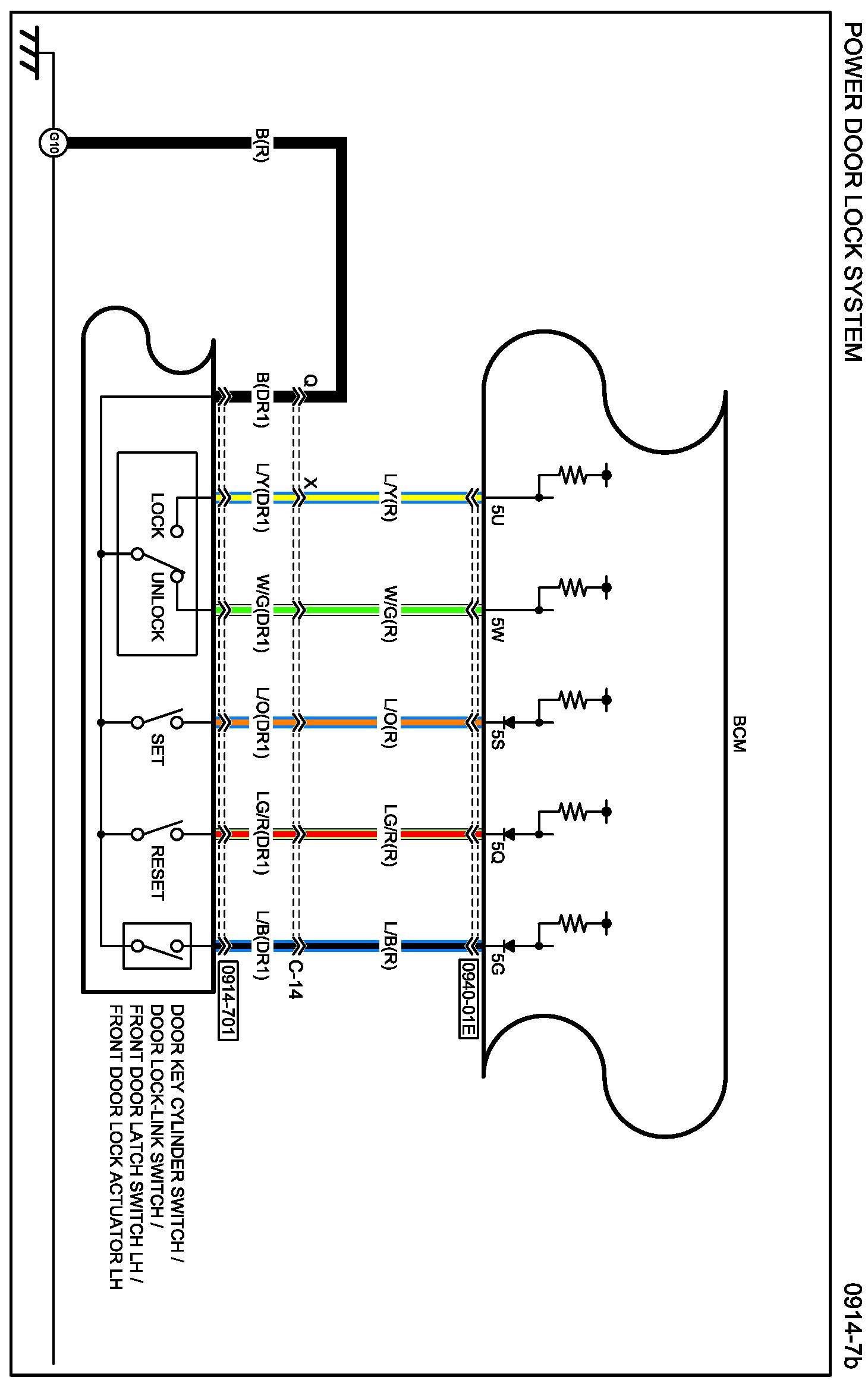

Diagram 0914-7b:

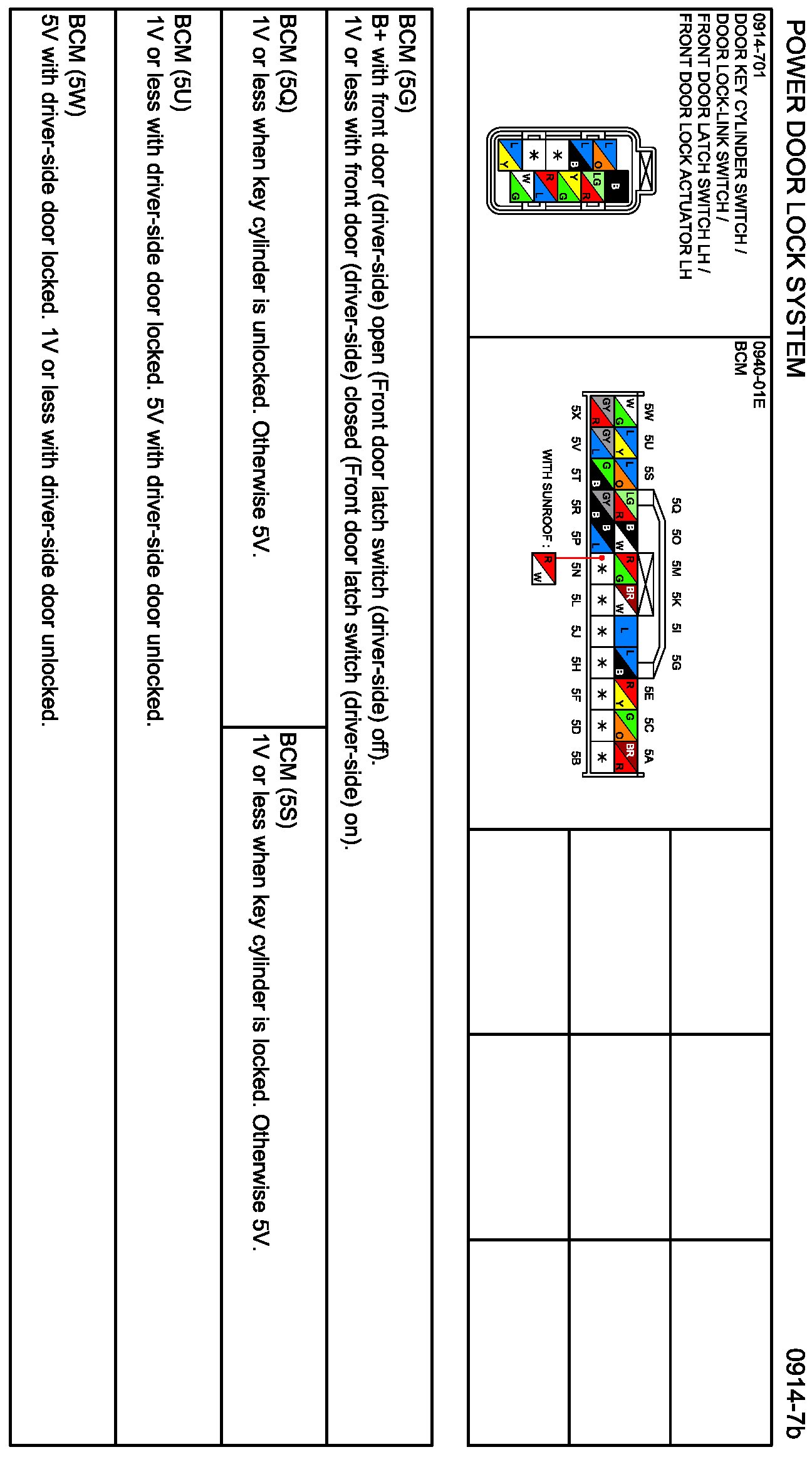

Connectors 0914-7b:

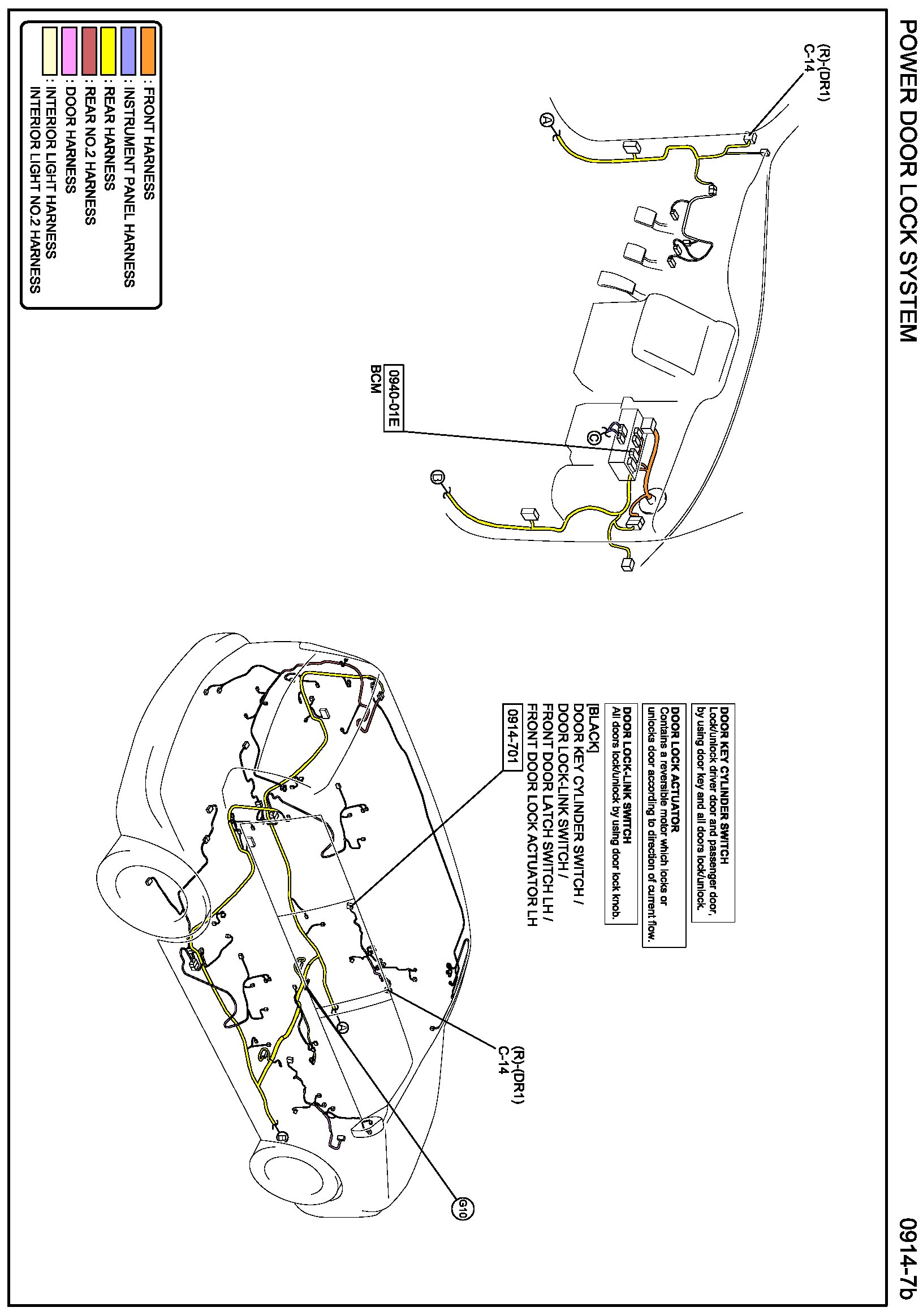

Routing View 0914-7b:

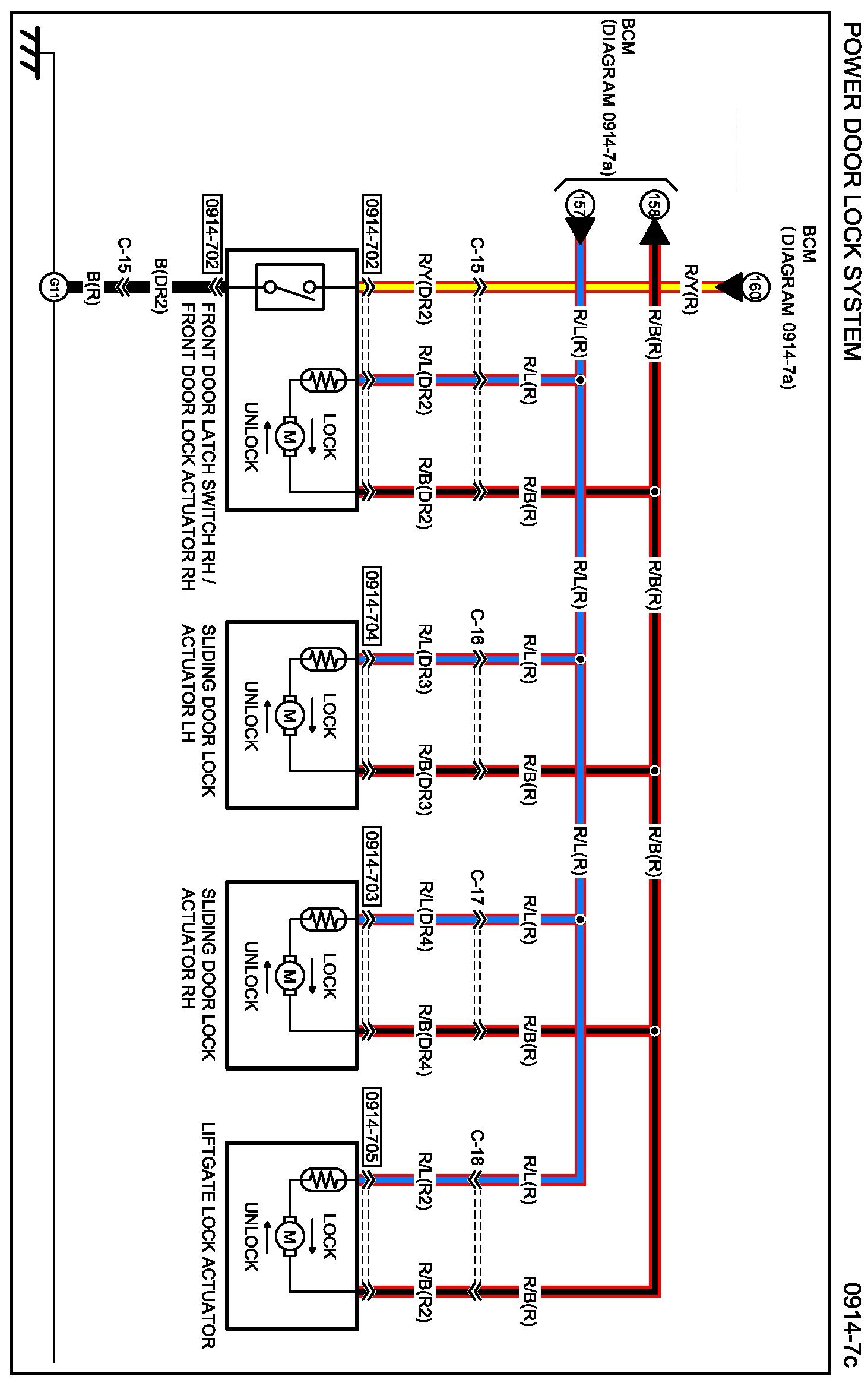

Diagram 0914-7c:

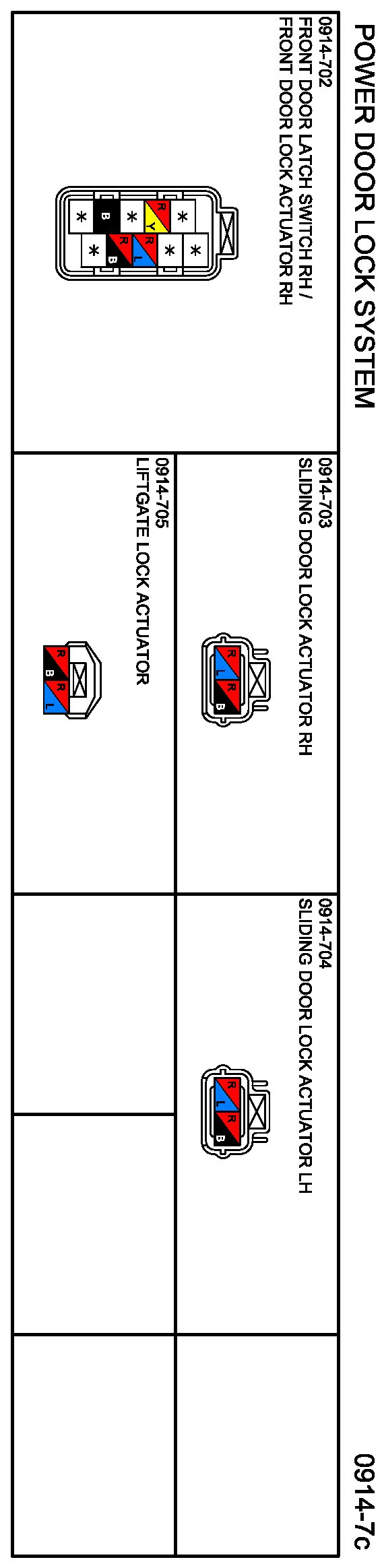

Connectors 0914-7c:

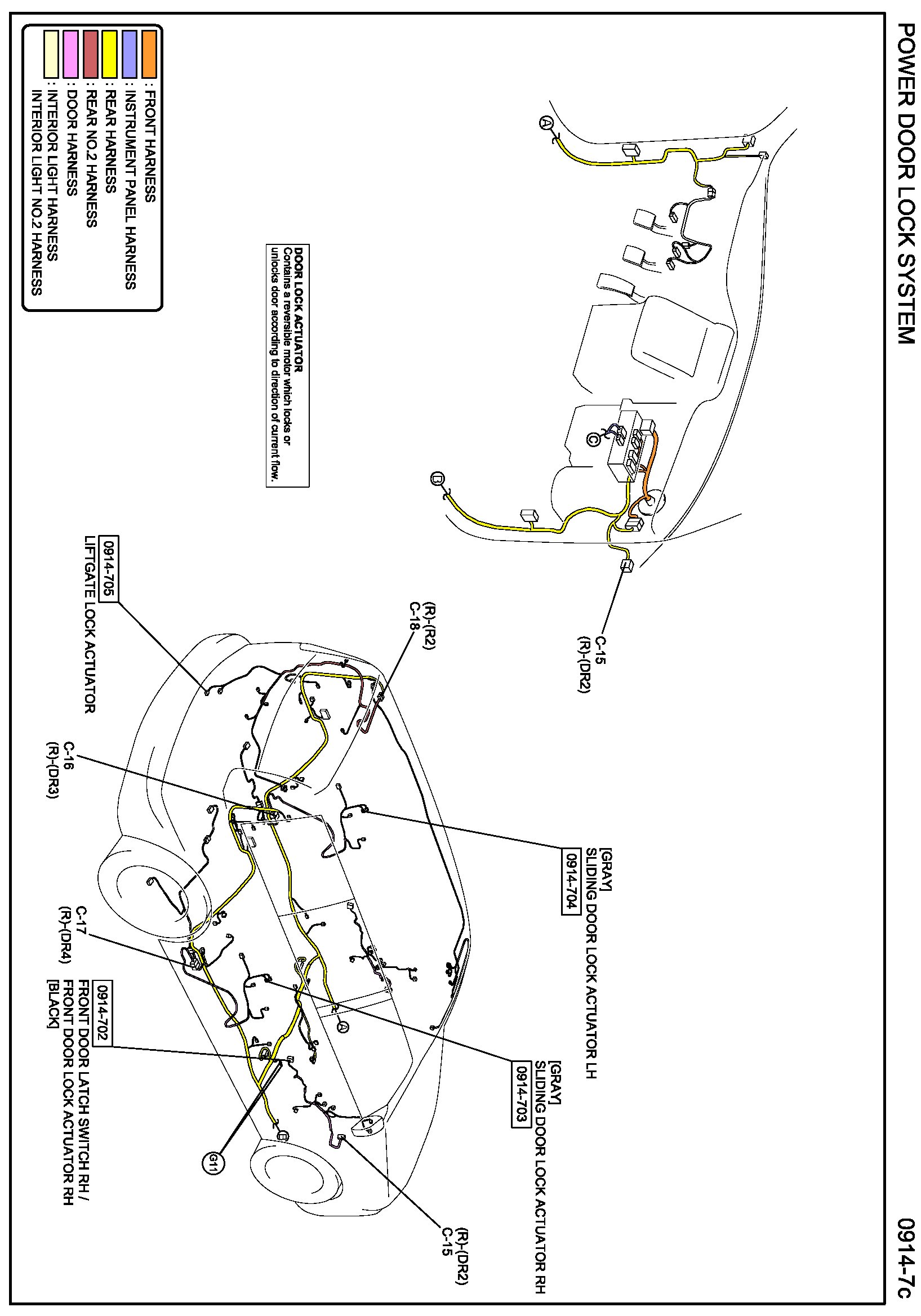

Routing View 0914-7c:

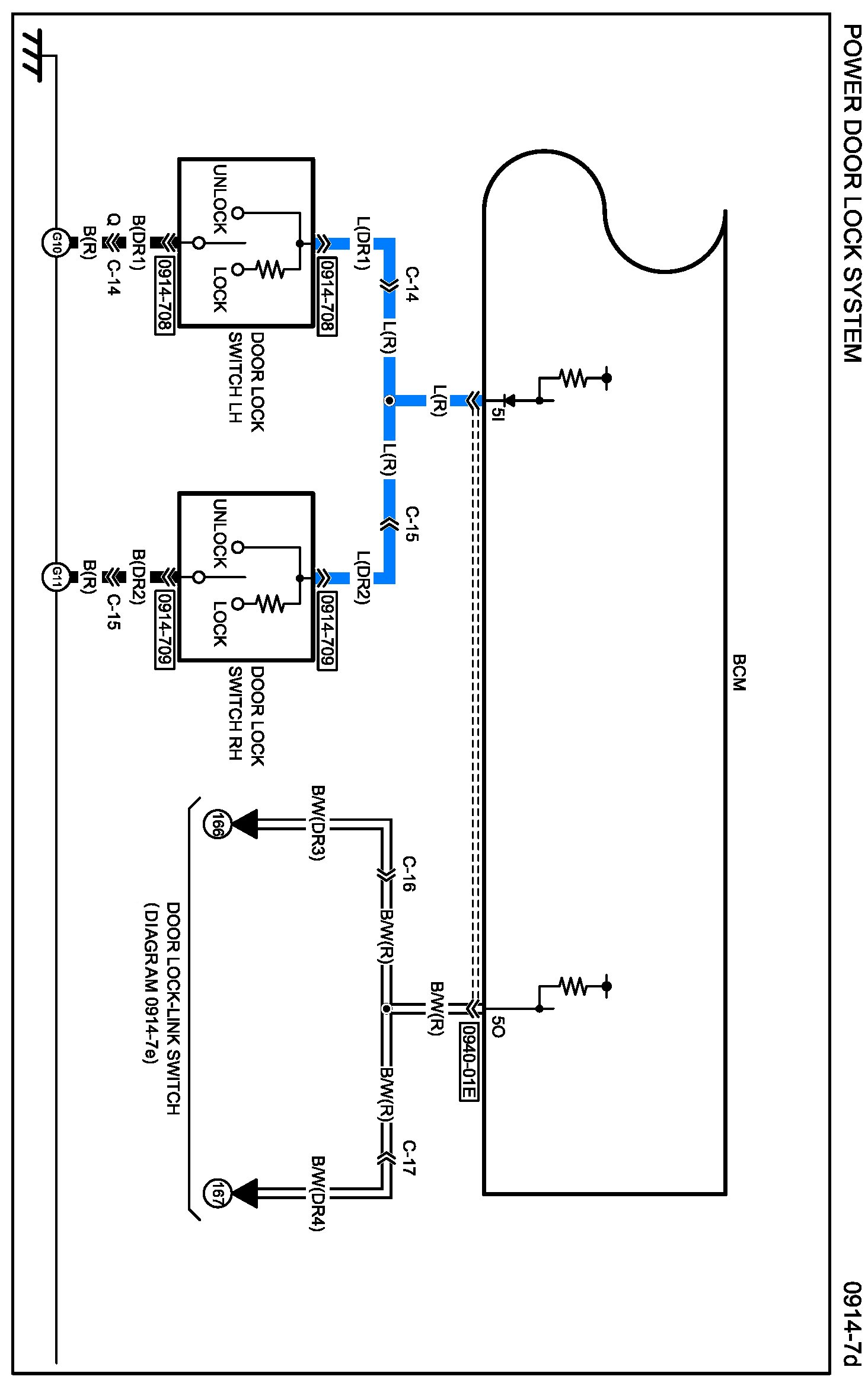

Diagram 0914-7d:

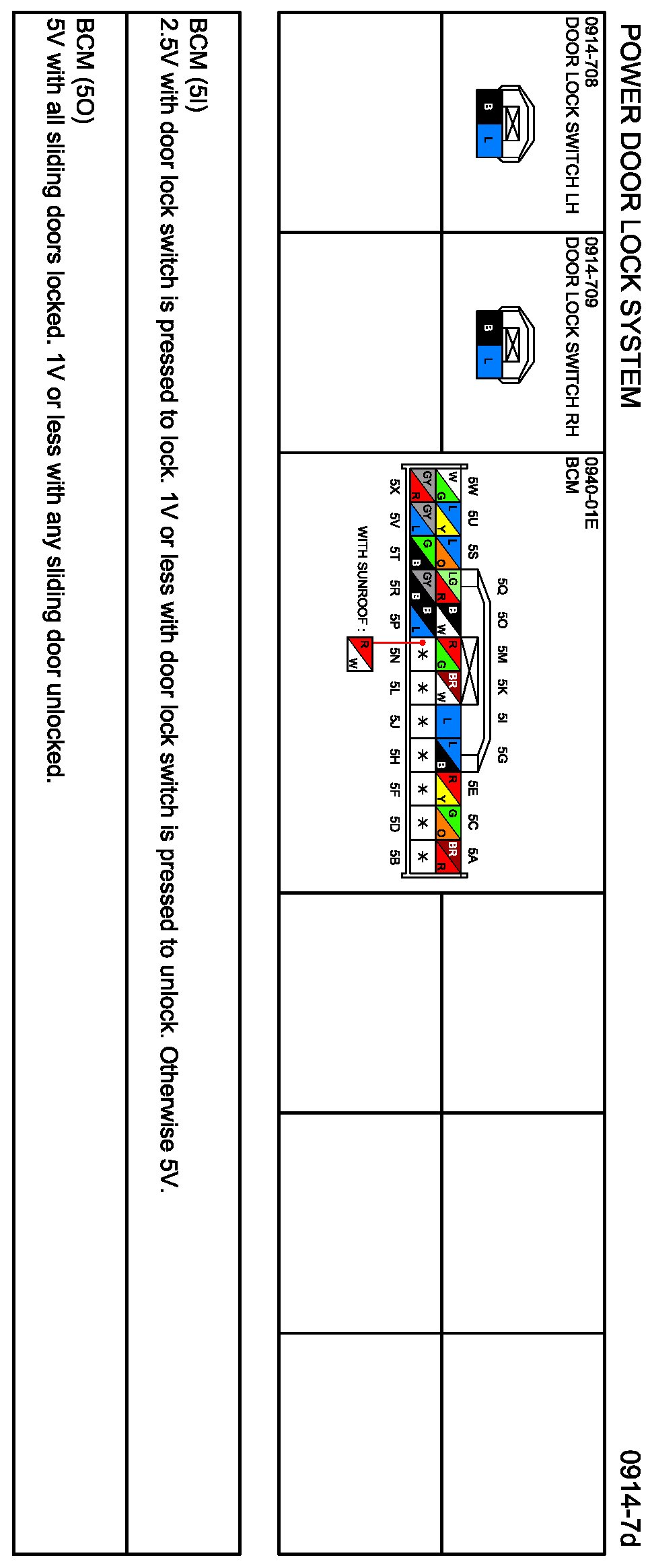

Connectors 0914-7d:

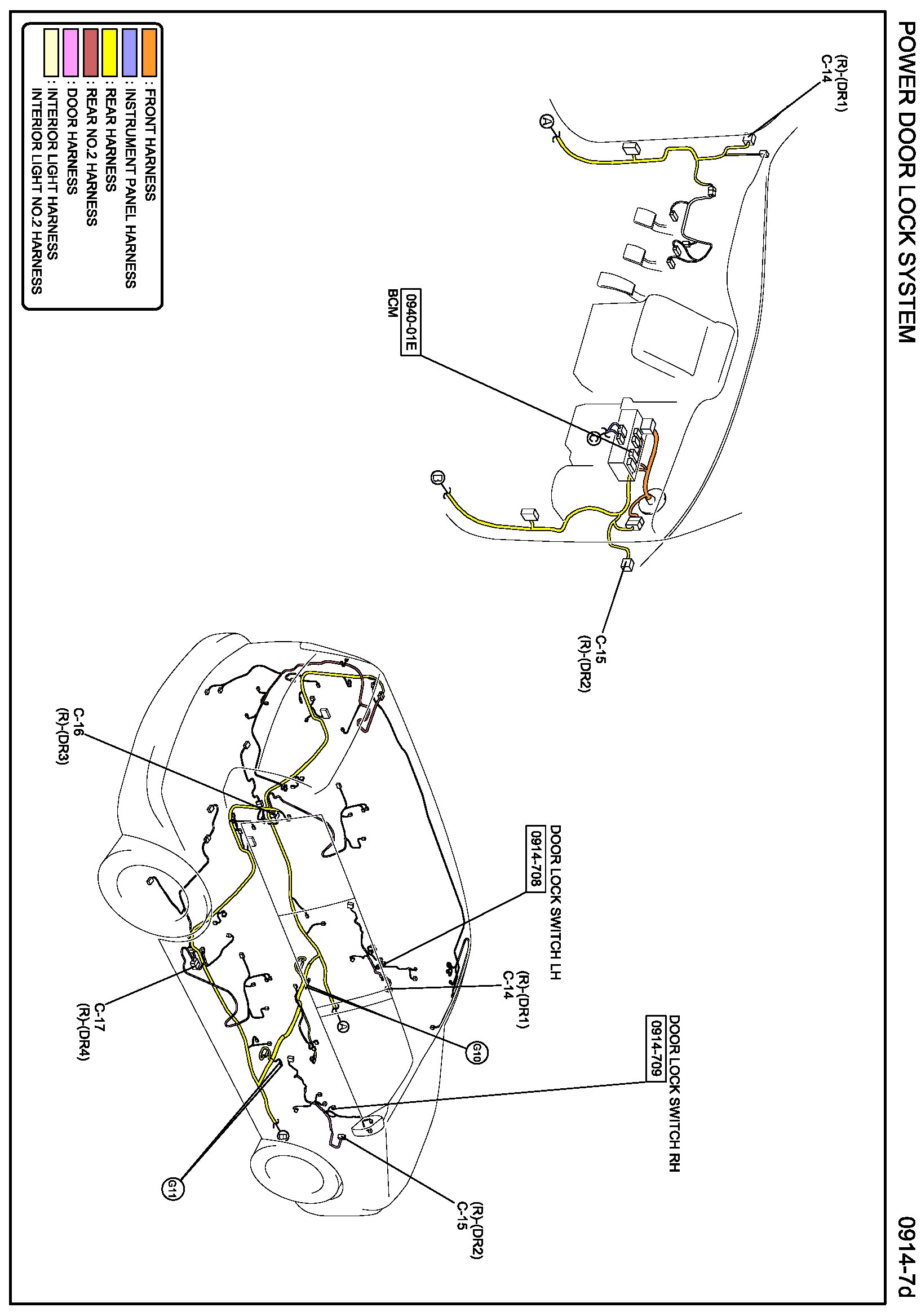

Routing View 0914-7d:

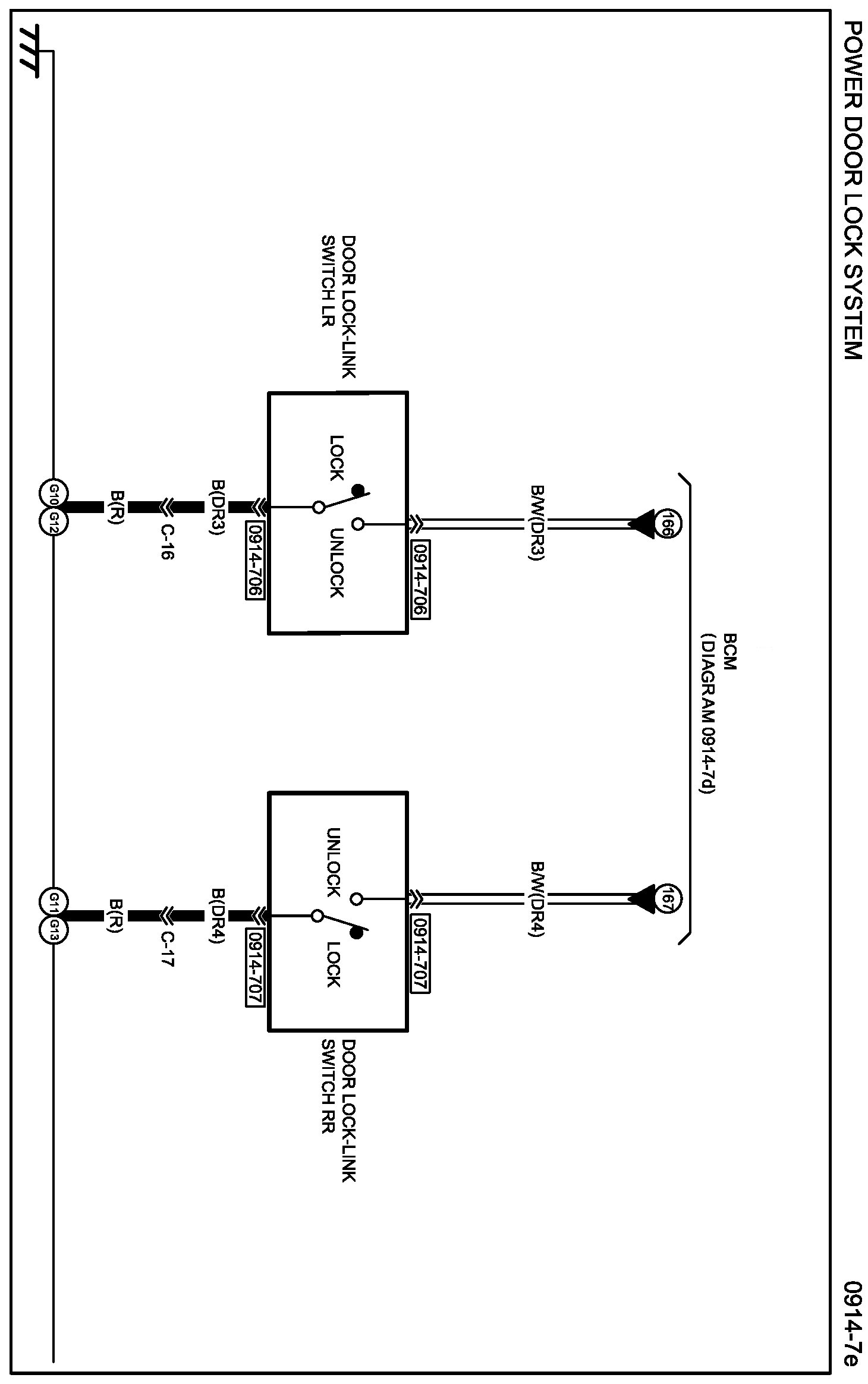

Diagram 0914-7e:

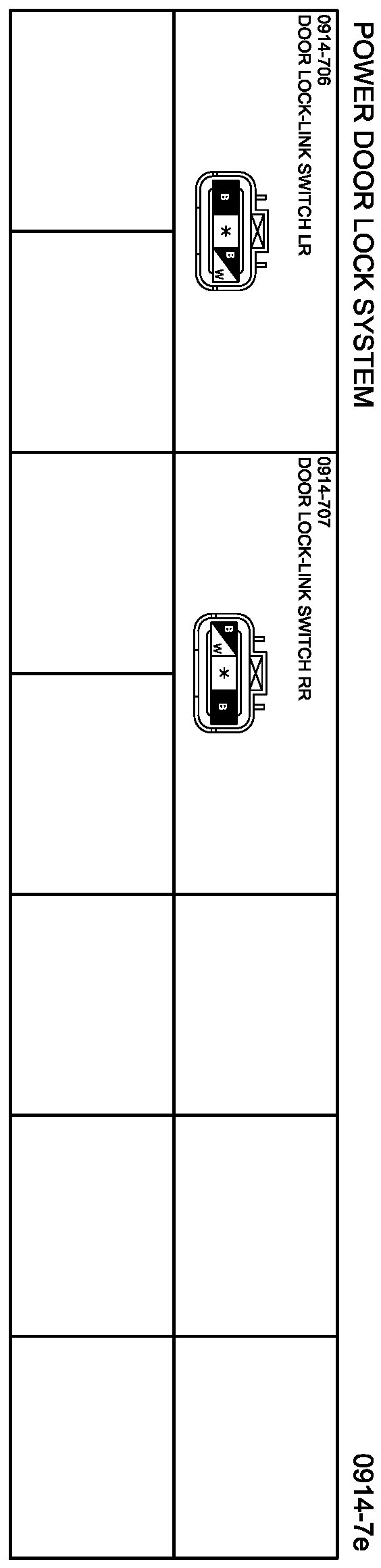

Connectors 0914-7e:

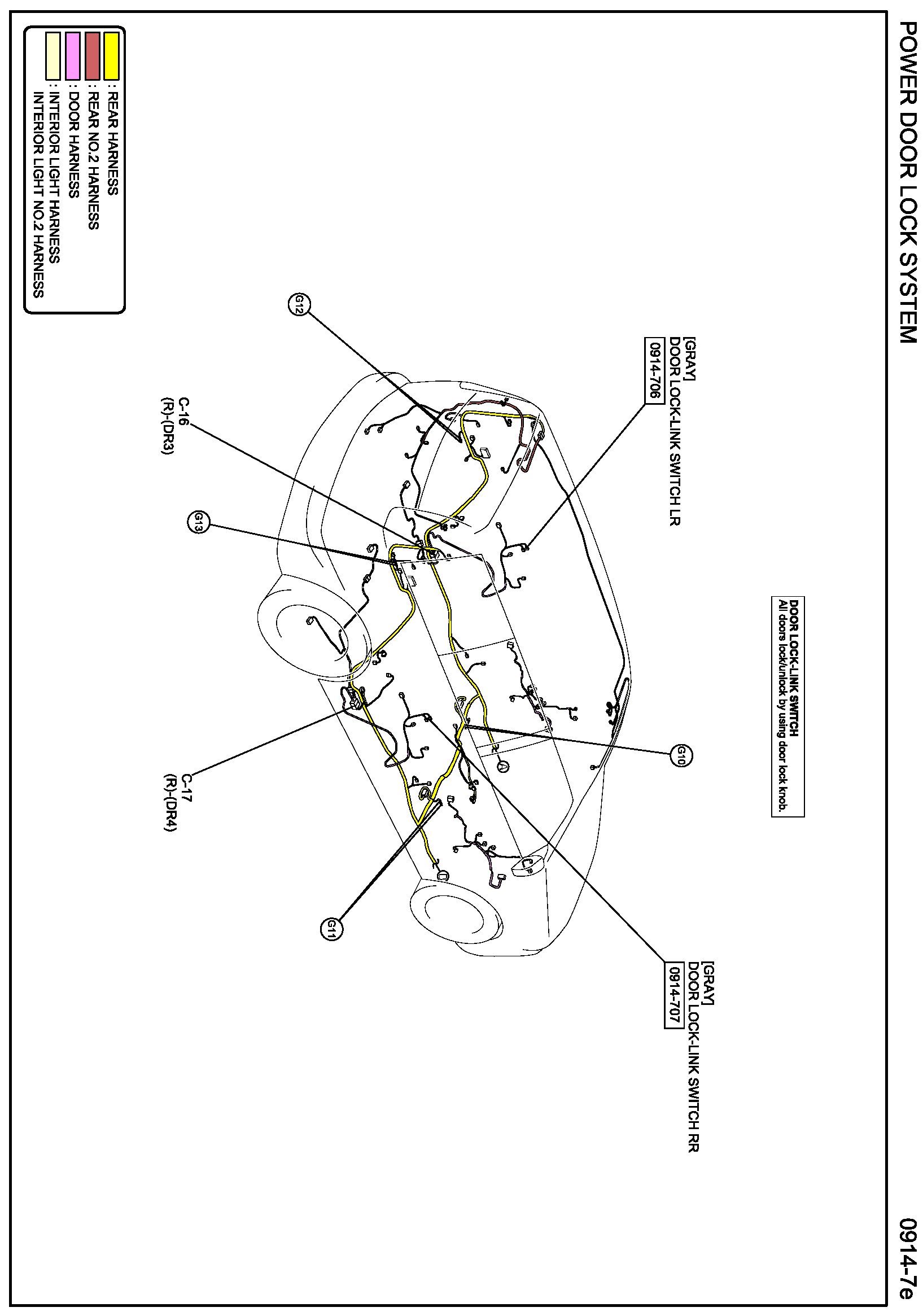

Routing View 0914-7e:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
