Keyless Entry Receiver: Service and Repair

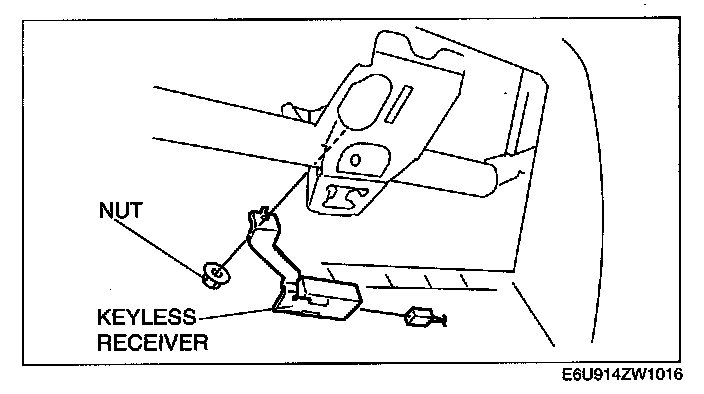

KEYLESS RECEIVER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the glove compartment.
3. Disconnect the keyless receiver module connector.

4. Remove the nut, then remove the keyless receiver.
5. Install in the reverse order of removal.
