Keyless Entry System (Without Advanced Keyless System)

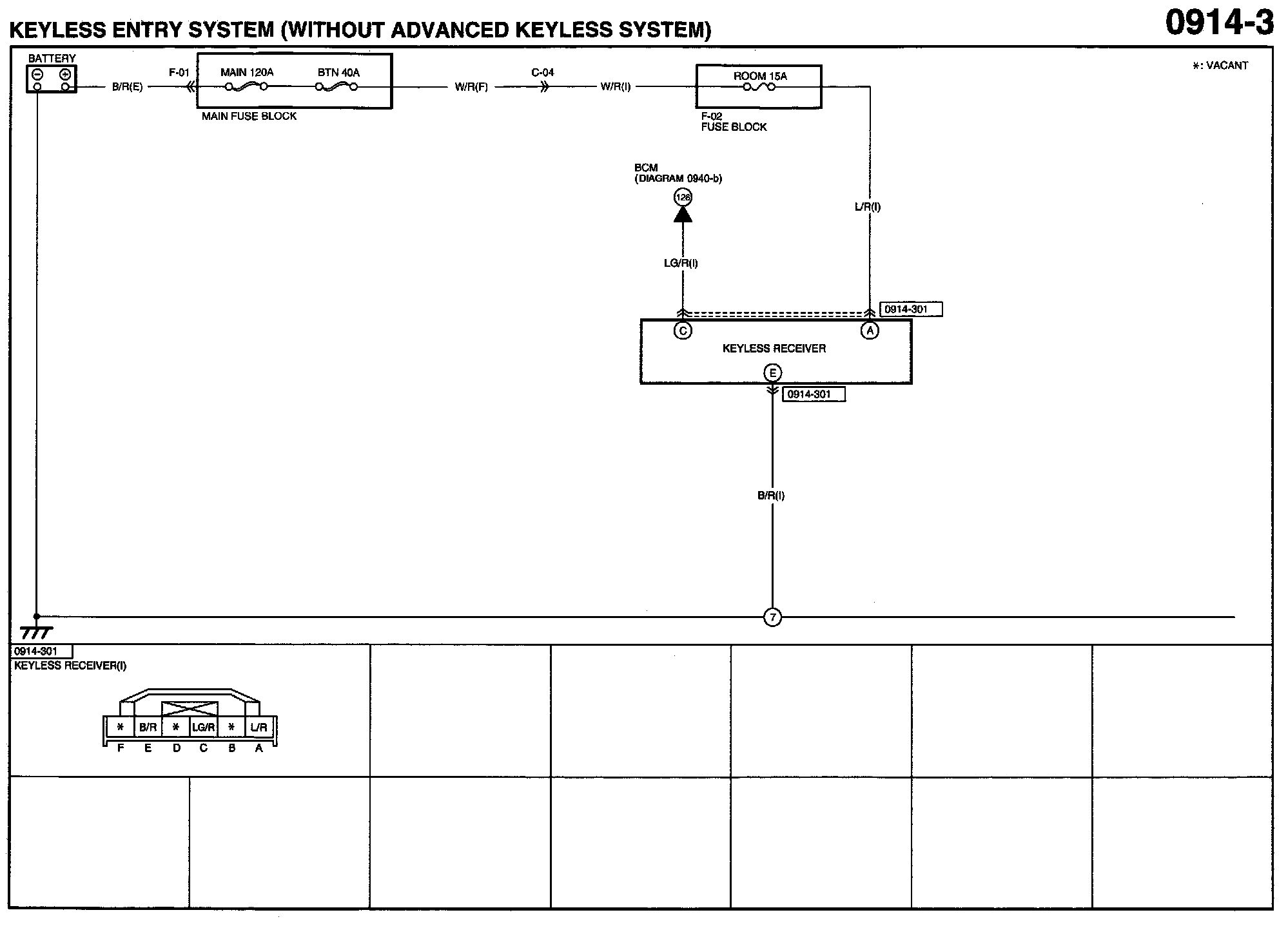

Diagram 0914-3:

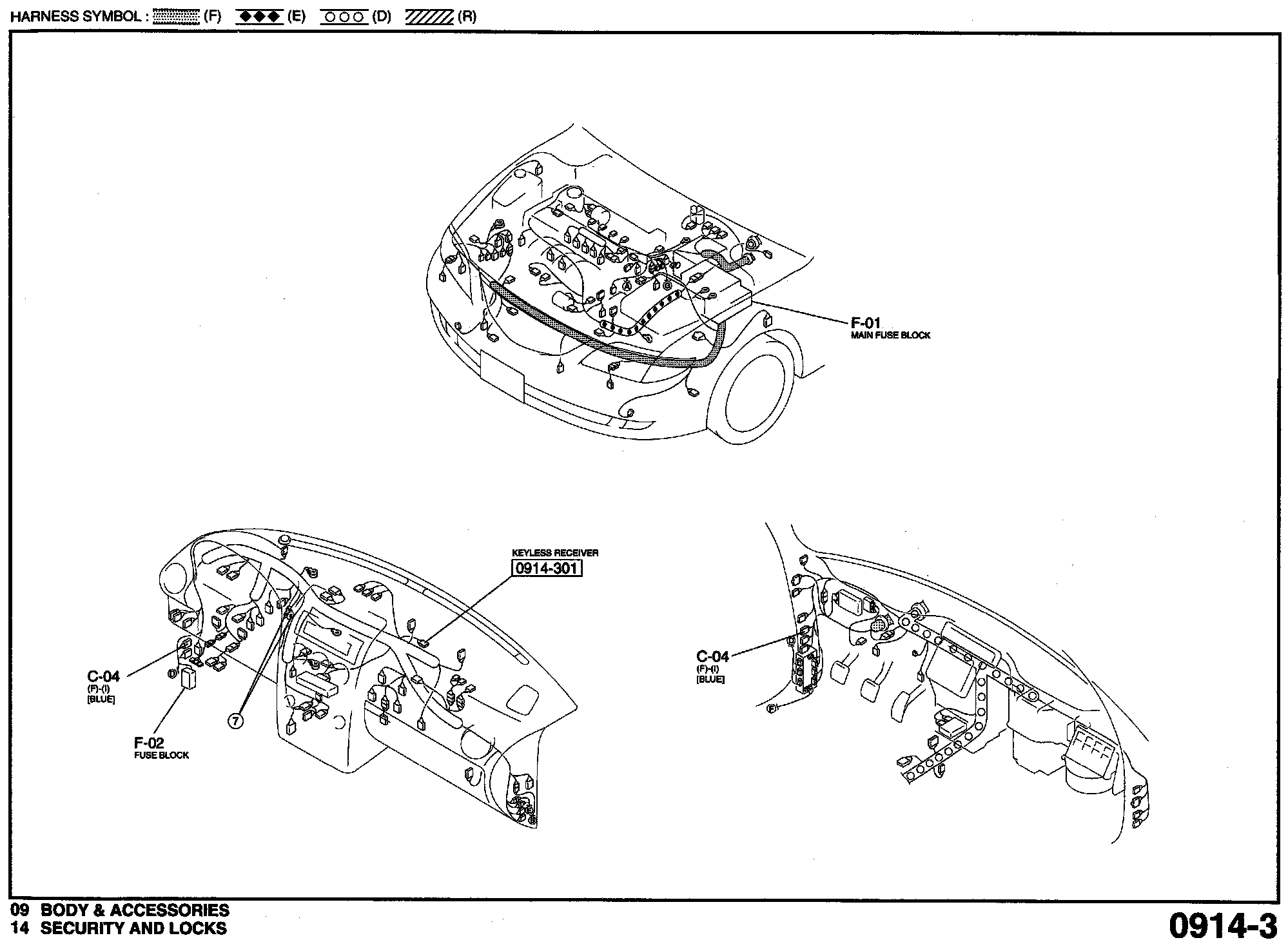

Routing View 0914-3:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
