Control Assembly: Adjustments

CLIMATE CONTROL UNIT WIRE ADJUSTMENT

Air Mix Wire

1. Set the temperature control dial to max hot.

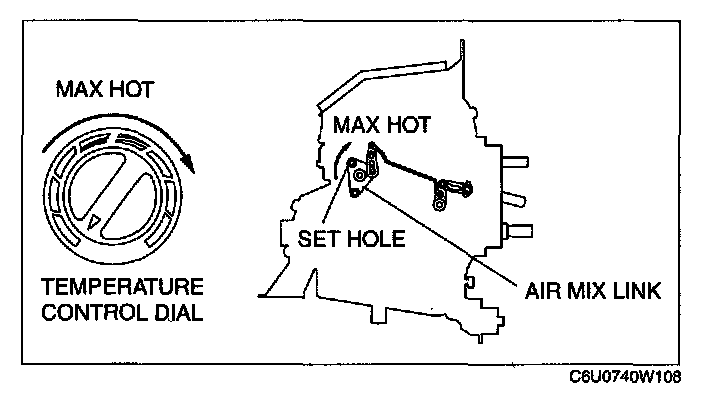

2. Set the air mix link to max hot in the direction shown by the arrow and insert a screwdriver at the set hole.
3. Connect the air mix wire to the air mix link.
4. Clamp the air mix wire to the wire clamp.
5. Verity that the temperature control dial rotates at full stroke.
