Maximum Steering Angle Adjustment

Maximum Steering Angle Adjustment
1. Loosen the tie-rod end locknuts.
2. Remove the steering gear boot clamp.

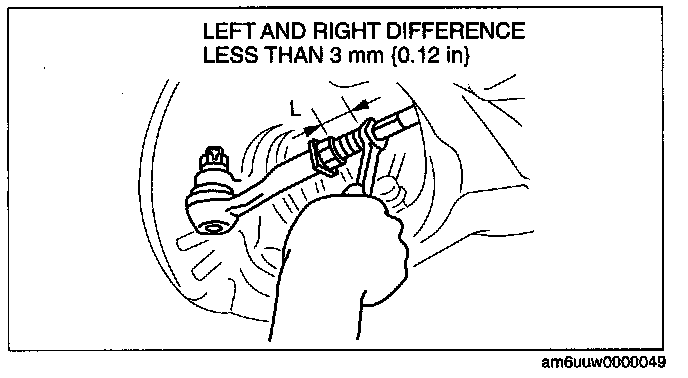

3. Turn the tie rods to equalize the length L.
Maximum left/right difference 3 mm (0.12 in)
4. Turn the tie rods equally to provide the correct maximum steering angle.
5. Tighten the tie-rod end locknuts.
Tightening torque 68.6-98.0 N-m (7.00-9.99 kgf-m, 50.6-72.2 ft-lbf)
6. Verify that the boot is not twisted, and install the boot clamp.
7. Adjust the toe-in after adjusting the steering angle.
