Coolant Temperature Sensor/Switch (For Computer): Service and Repair

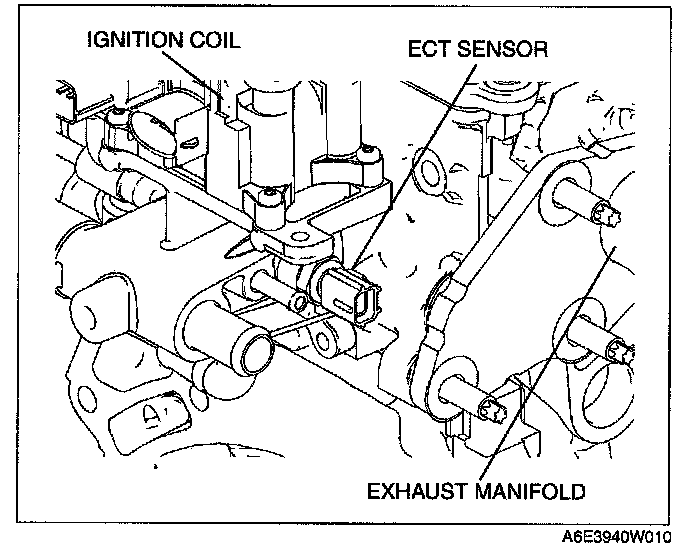

ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION[L3]

WARNING: A hot engine can cause severe burns. Turn oft the engine and wait until it is cool before removing the ECT sensor.

1. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS[L3, AJ]. )
2. Disconnect the ECT sensor connector.




3. Remove the ECT sensor.
4. Install in the reverse order of removal.

Tightening torque: 10-14 N.m{1.02-1.42 kgf.m, 7.38-10.32 ft.lbf)

5. Refill the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS[L3, AJ].)
