Manifolds

Manifolds

Exhaust Manifold

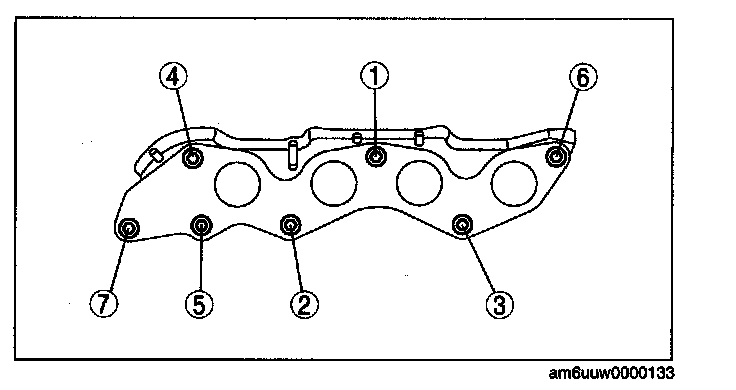

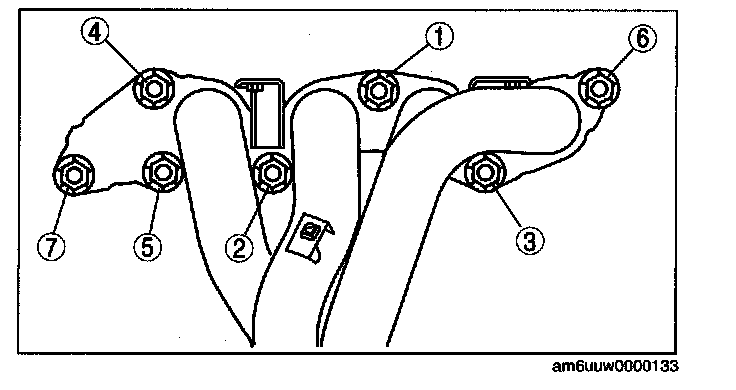

Tighten the exhaust manifold installation nuts in the order shown.

California emission regulation applicable ATX model

Except for California emission regulation applicable ATX model

Tightening torque 43-64 N-m (4.4-6.5 kgf-m, 32-47 ft-lbf)

Intake Manifold

Remove in the order indicated in the table.
Install in the reverse order of removal.
