Wheel Hub Bolt Replacement

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake caliper component and disc plate.

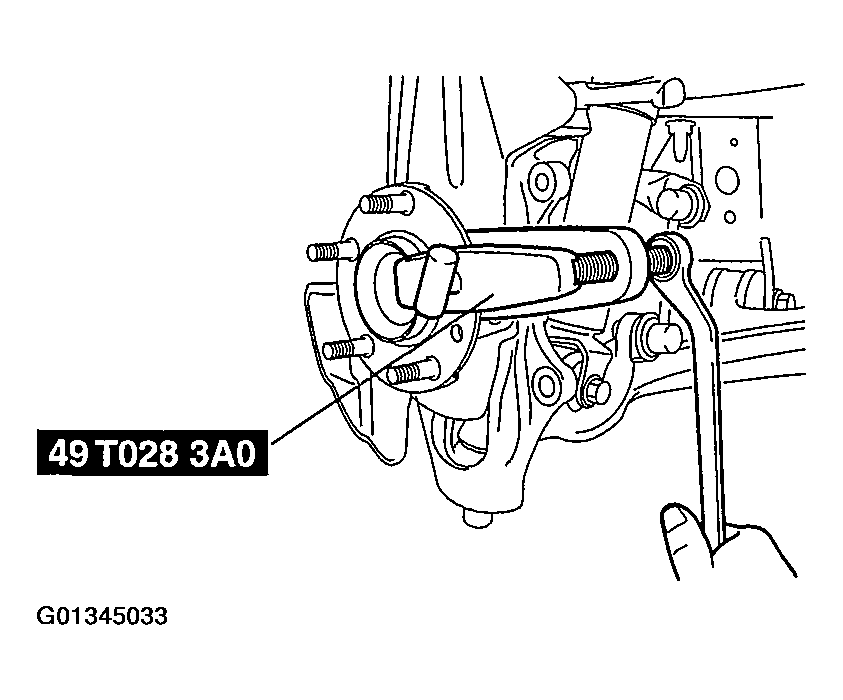

Remove the wheel hub bolt using the SST as shown in the figure.
Place a new wheel hub bolt in the wheel hub.

Fig 1: Removing Wheel Hub Using Special Service Tool
Courtesy of MAZDA MOTORS CORP.

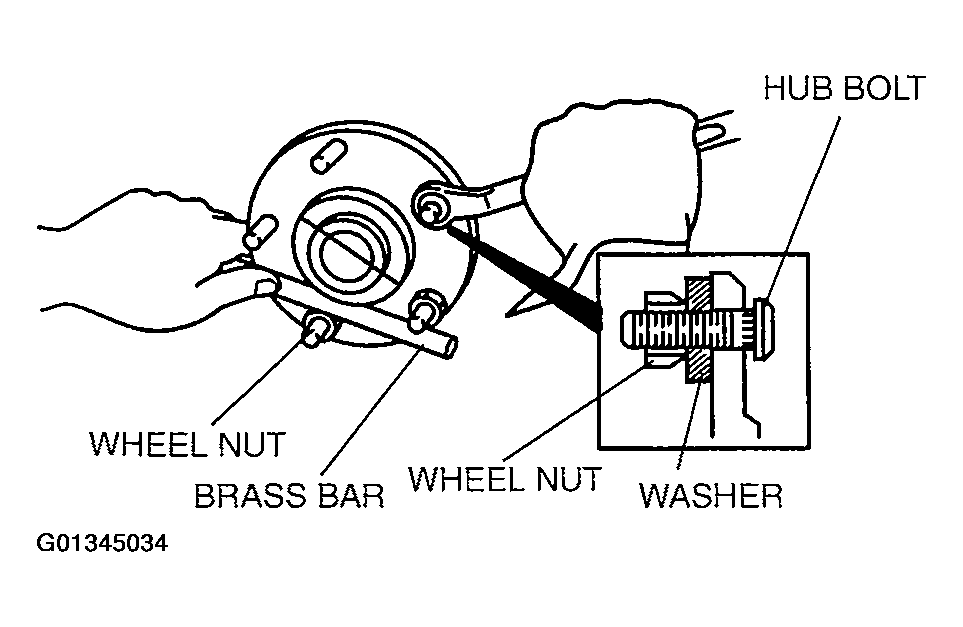

Install the wheel hub bolt by placing a proper sized washer on the hub, and tightening the nut as shown. See Fig 2 .

Fig 2: Identifying Wheel Hub Bolt Installation Method & Hub Bolt

Courtesy of MAZDA MOTORS CORP.
