Fuel Tank Pressure Sensor: Service and Repair

FUEL TANK PRESSURE SENSOR REMOVAL / INSTALLATION

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.

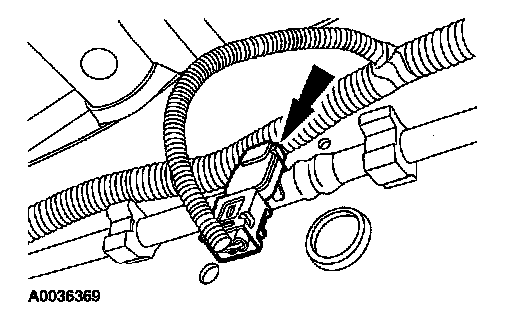

2. Disconnect the electrical connector.






NOTE: A new vapor line assembly must be installed for a new pressure sensor to be installed.

3. Remove the fuel tank pressure sensor and fuel line assembly.

4. To install, reverse the removal procedure.
- Perform Leak Test. See EVAPORATIVE EMISSION SYSTEM LEAK TEST. Testing and Inspection
- Perform the Evaporative Emission Running Loss Monitor Repair Verification Drive Cycle Test. See DRIVE CYCLES. Driver Cycles
