Powertrain Control Module (2 Of 2) Connector End View (C175E) (2 Of 2)

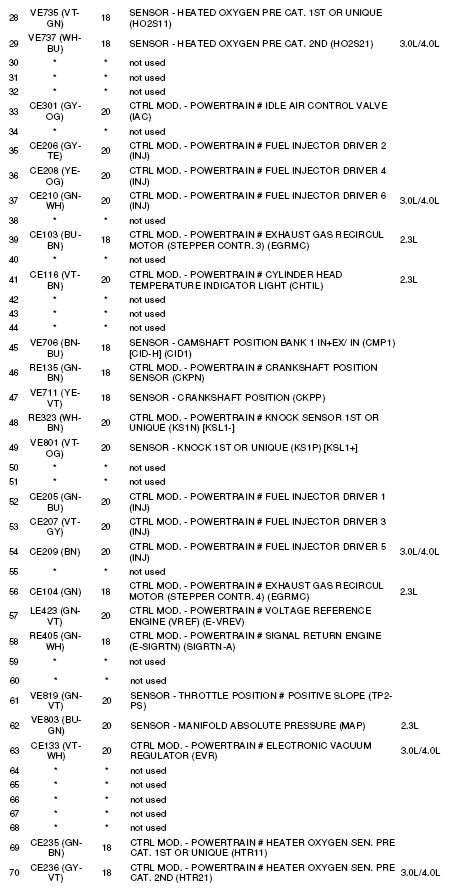

Fig 1: Powertrain Control Module (2 Of 2) Connector End View (C175E) (2 Of 2)
G05603063
