Removal and Installation

Remove the mode select switch (MSS) knob.

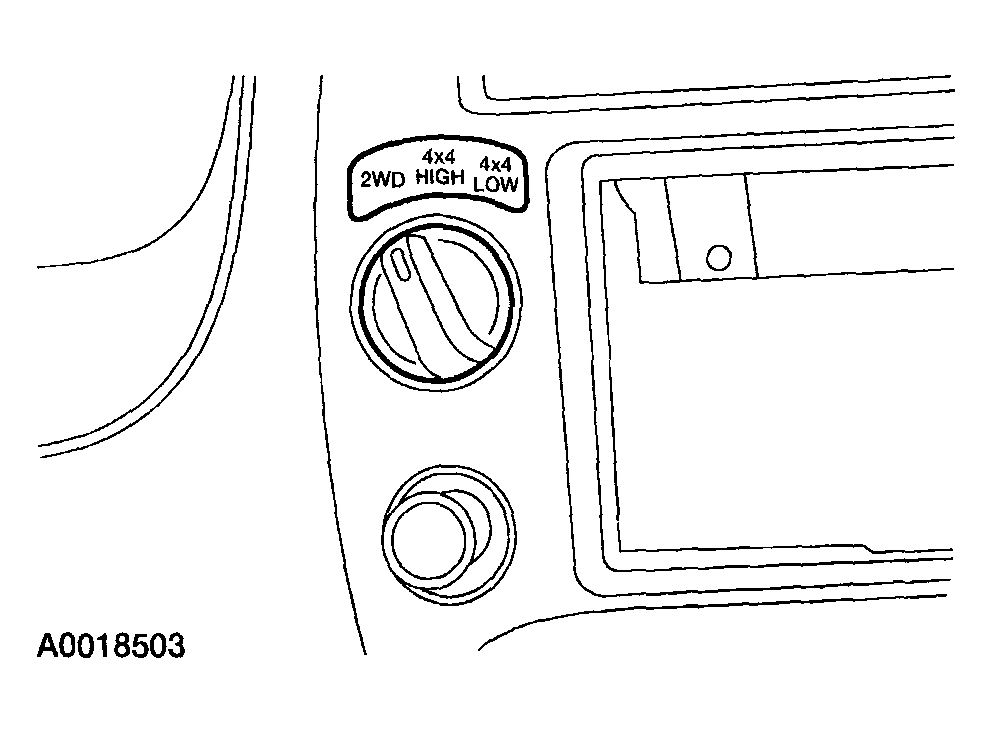

Fig 1: Removing Mode Select Switch (MSS) Knob
Courtesy of MAZDA MOTORS CORP.
Remove the audio unit; see AUDIO UNIT .
Remove the screws and pull out the instrument panel center finish panel out of the instrument panel.

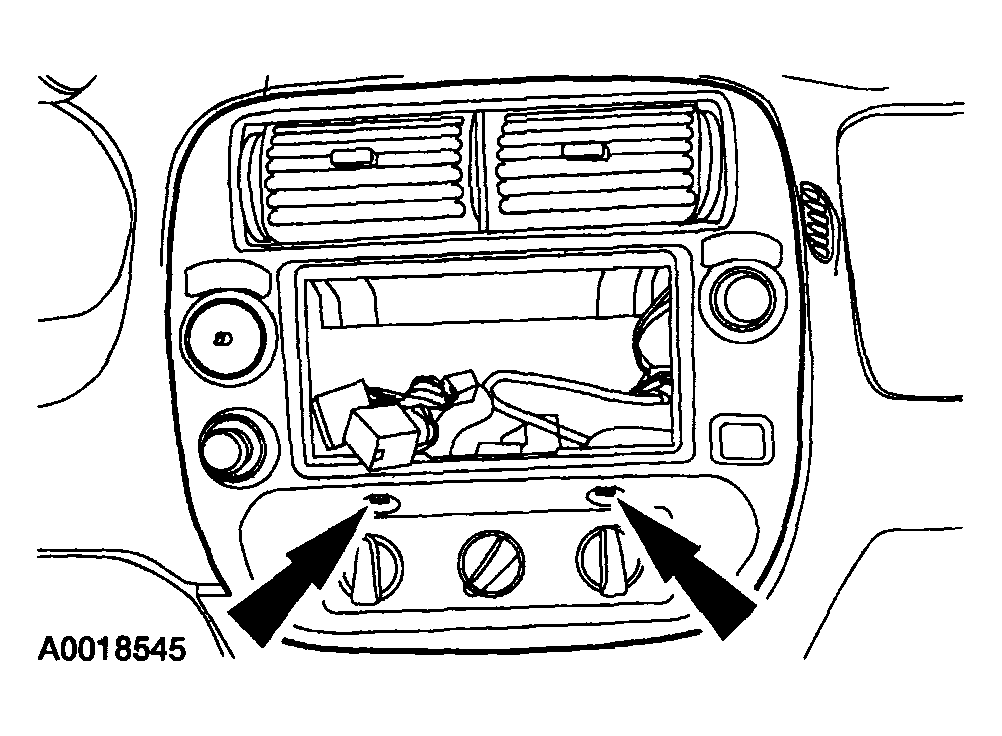

Fig 2: Locating Two Screws Retaining Switch
Courtesy of MAZDA MOTORS CORP.
Remove the two screws retaining the switch, and remove the switch.

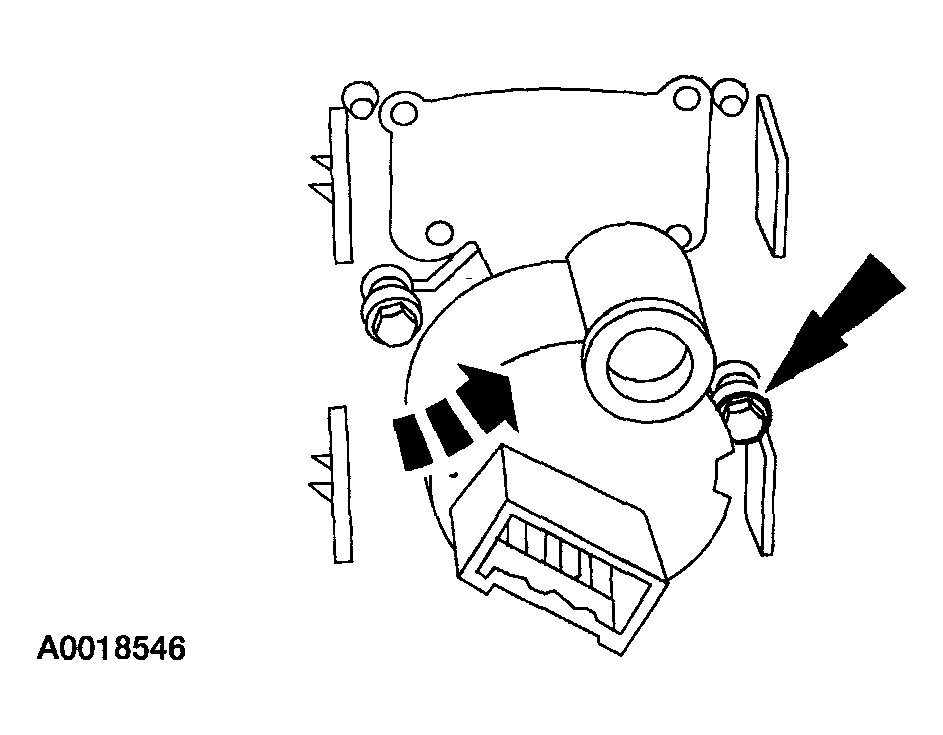

Fig 3: Locating Switch Bolt
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
