Keyless Entry System on-Board Diagnosis [Keyless Entry System]

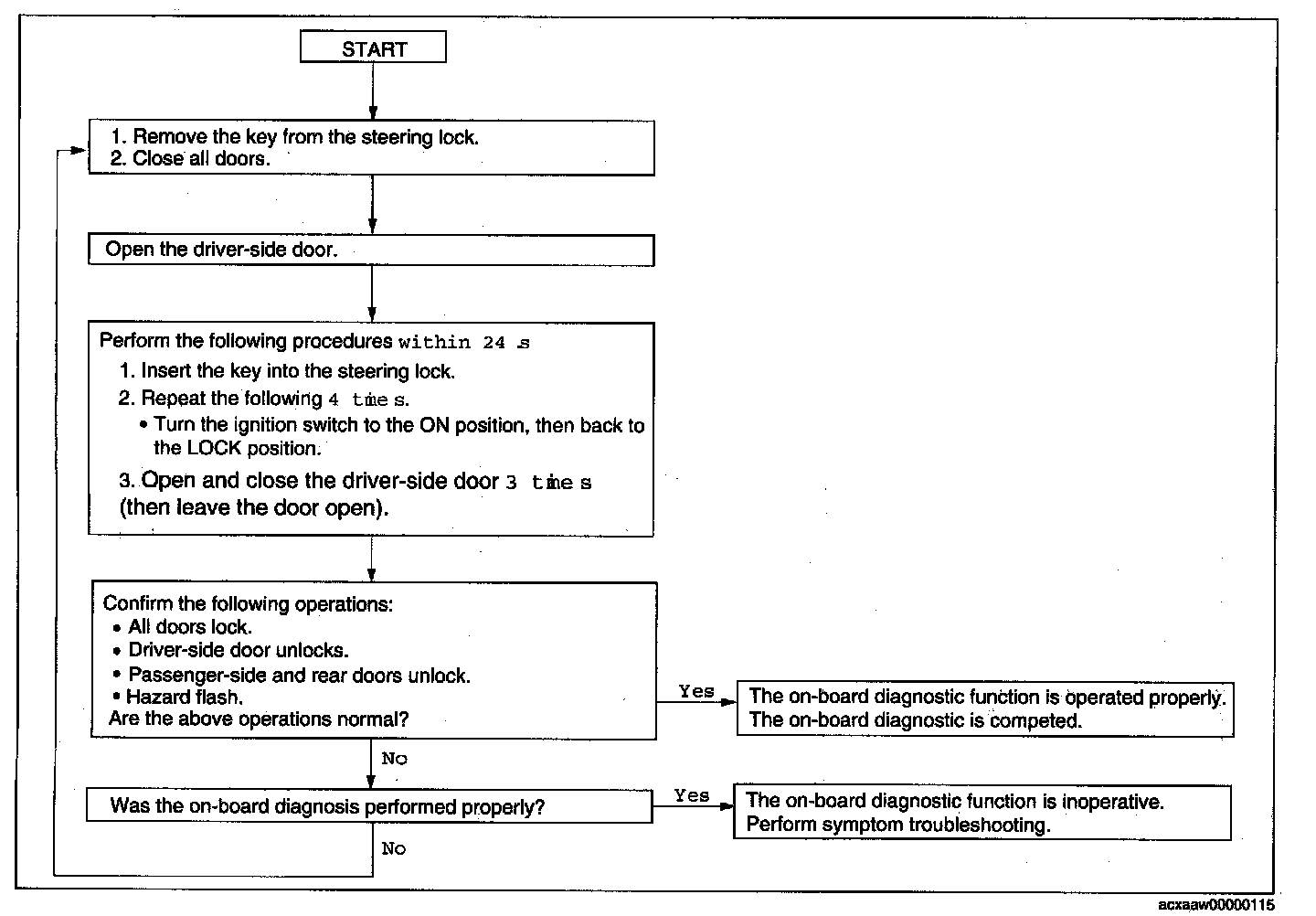

KEYLESS ENTRY SYSTEM ON-BOARD DIAGNOSIS [KEYLESS ENTRY SYSTEM]

NOTE: "All doors" includes the liftgate.

Symptom Troubleshooting[Keyless Entry System]:
