Keyless Entry System (Without Advanced Keyless System)

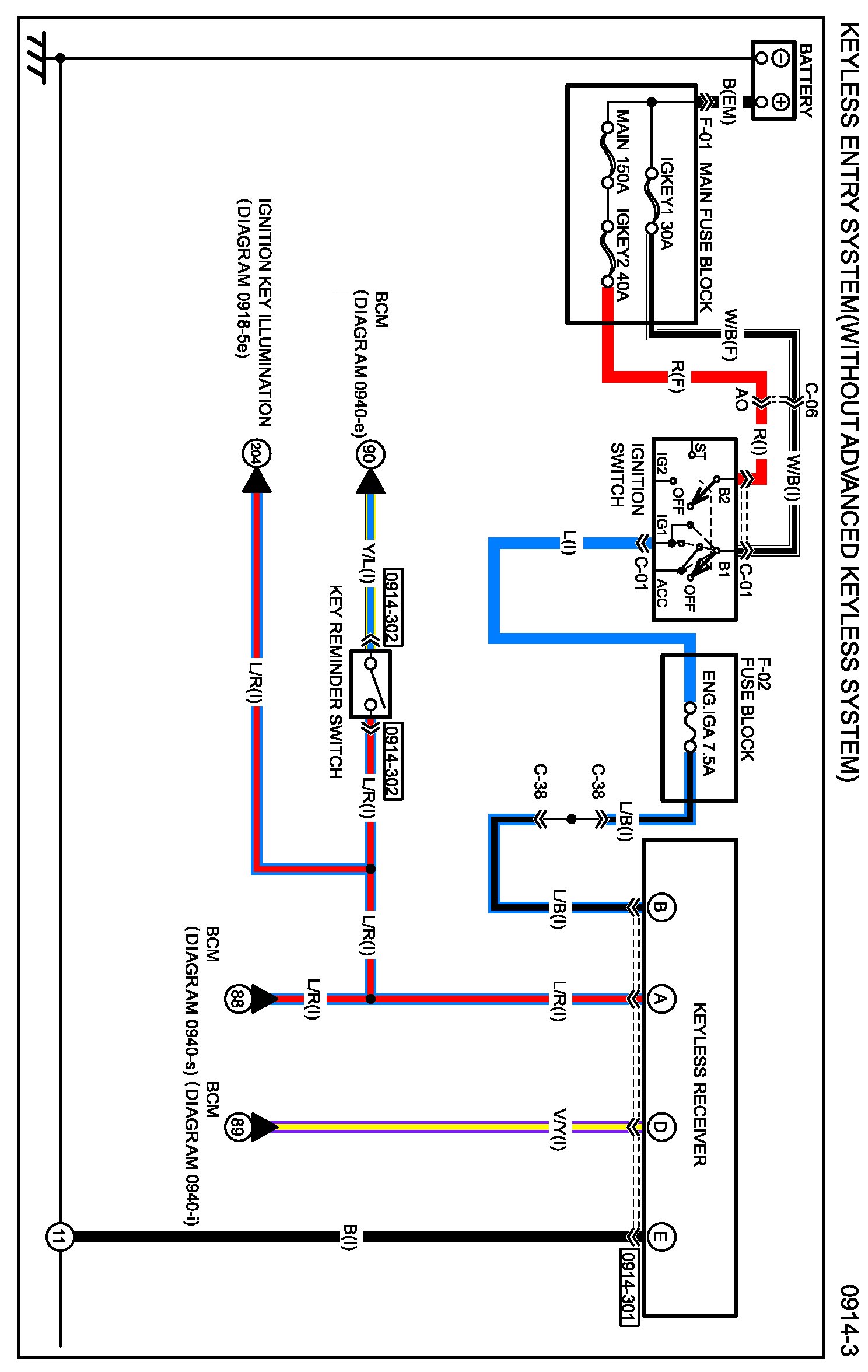

Diagram 0914-3:

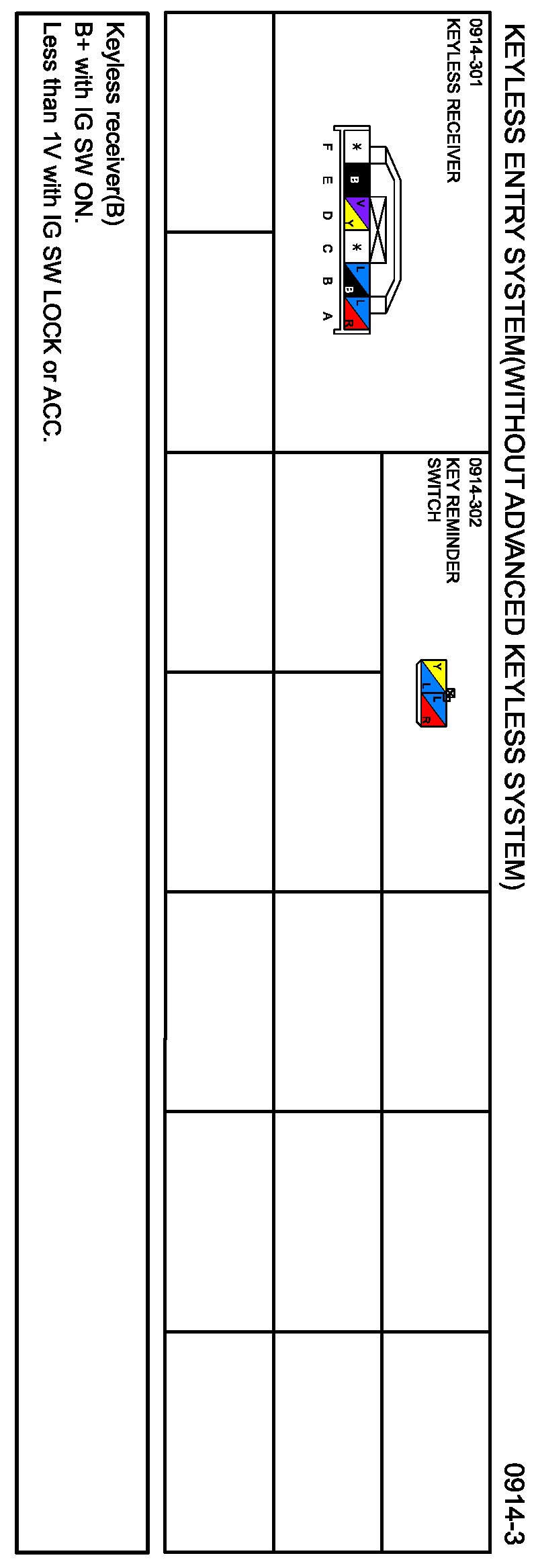

Connectors 0914-3:

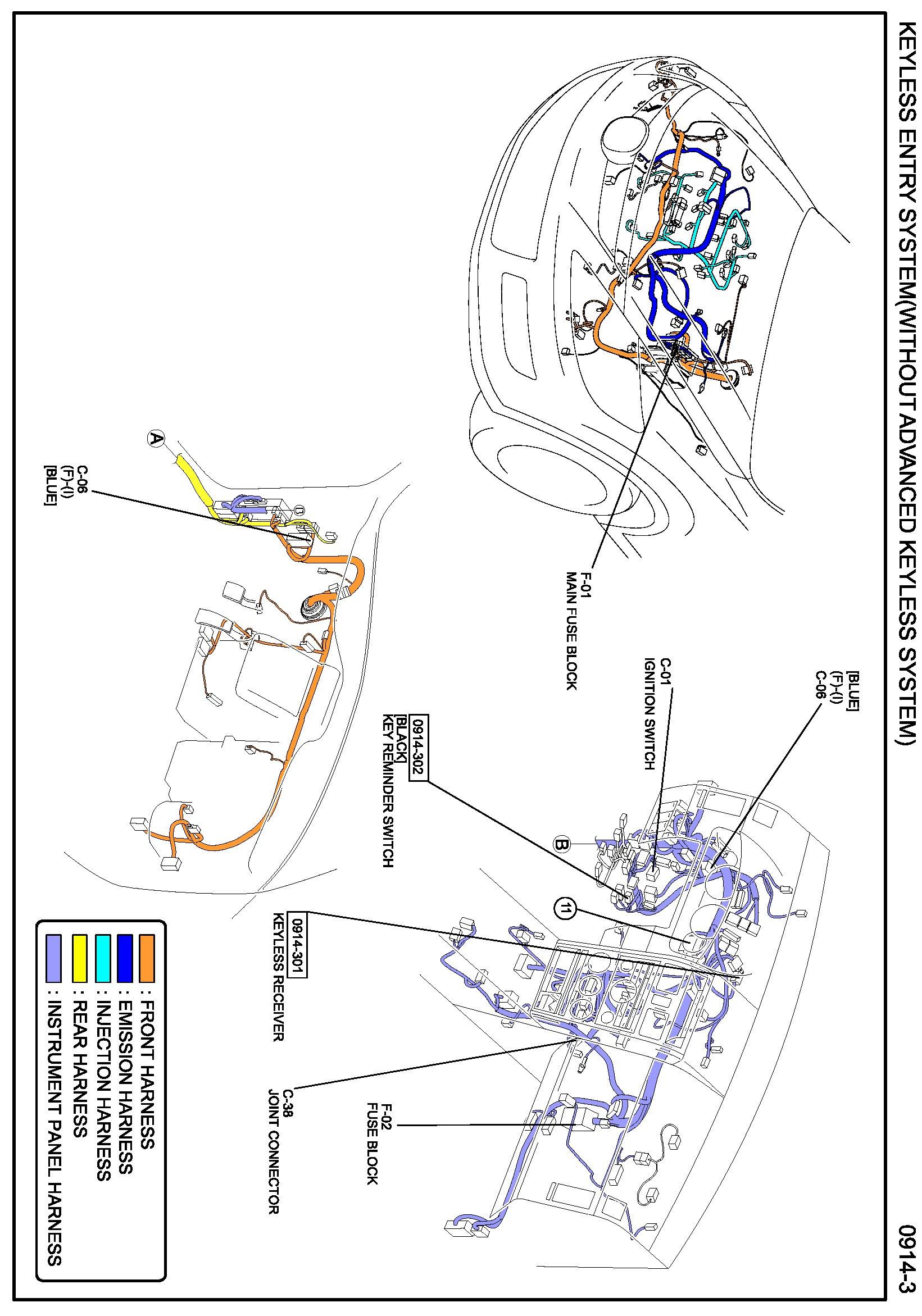

Routing View 0914-3:
