Component Tests and General Diagnostics

KEYLESS CONTROL MODULE INSPECTION [ADVANCED KEYLESS SYSTEM]

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.

Terminal Voltage Table (Reference)

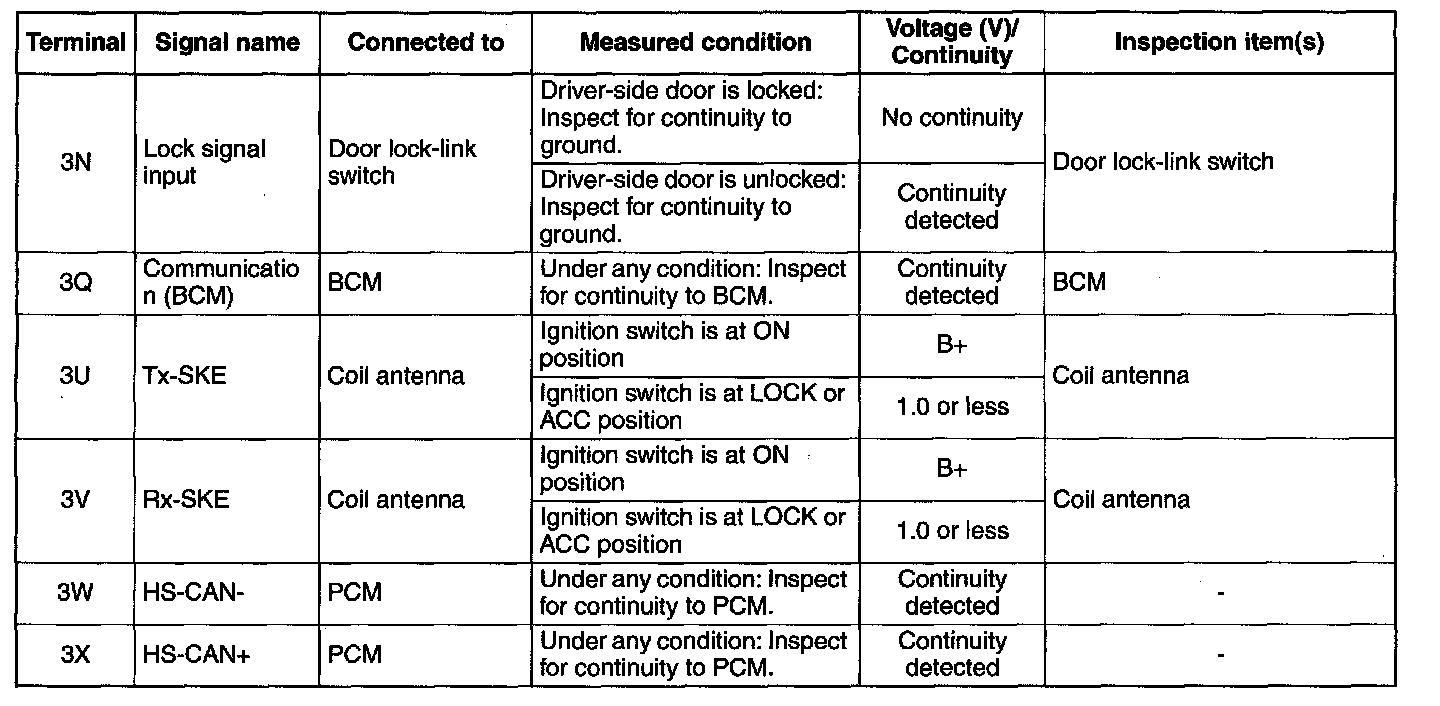

Terminal Voltage Table (Reference) (Part 1):

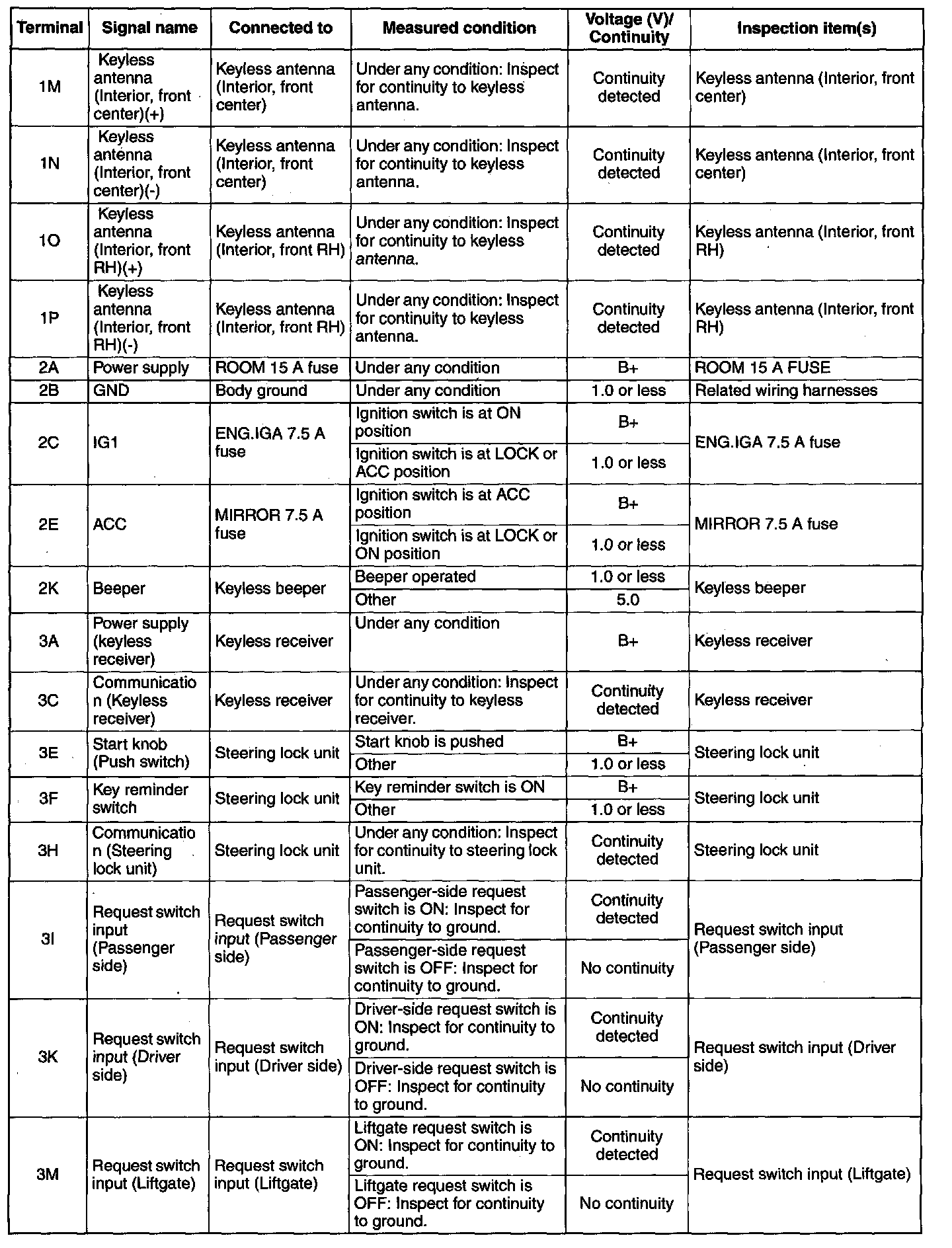

Terminal Voltage Table (Reference) (Part 2):

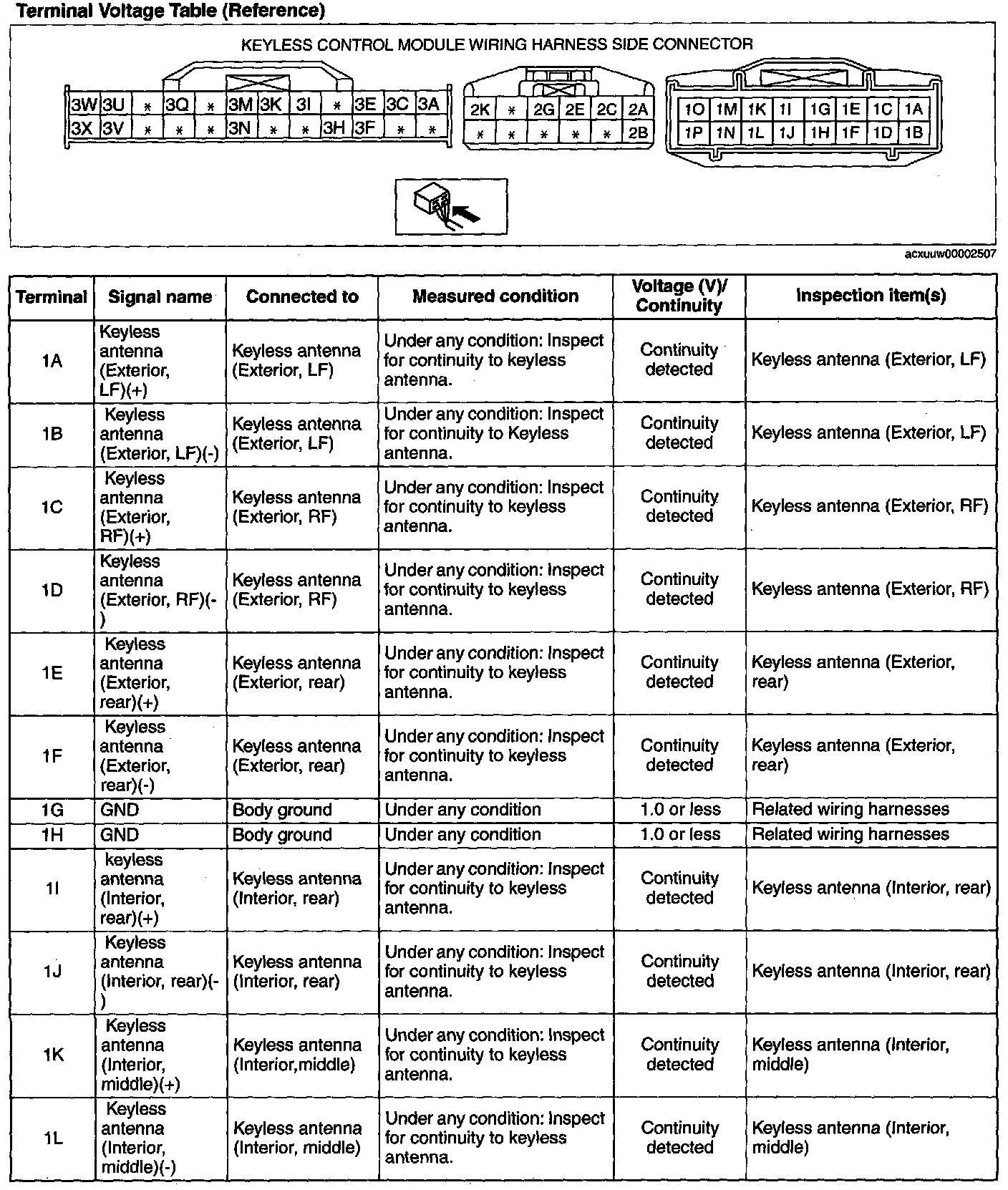

Terminal Voltage Table (Reference) (Part 3):
