Keyless Entry Receiver: Service and Repair

KEYLESS RECEIVER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Decoration panel
2. Front console box mat
3. Indicator panel
4. Front console box.
5. Center panel.
6. Upper column cover
7. Meter hood.

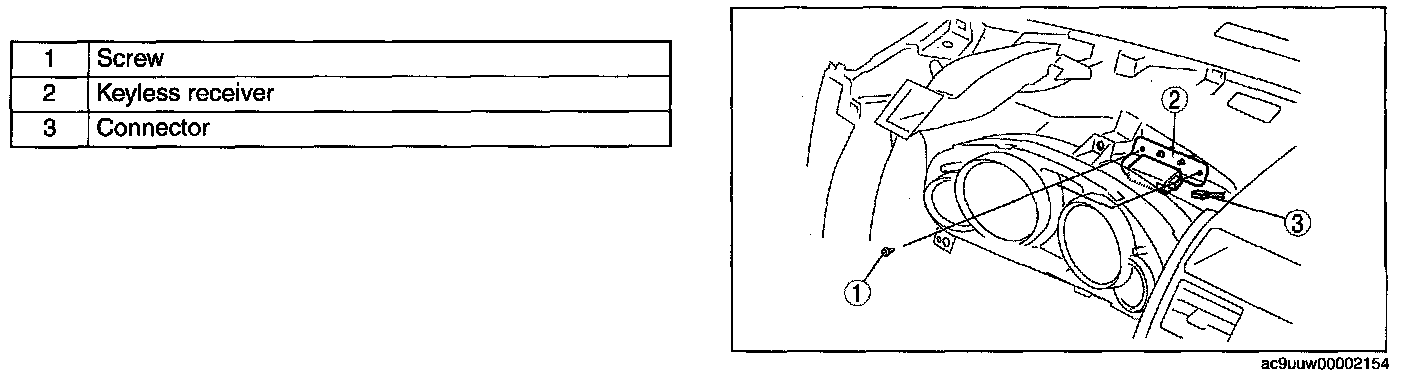

3. Remove in the order indicated in the table.






4. Install in the reverse order of removal.
