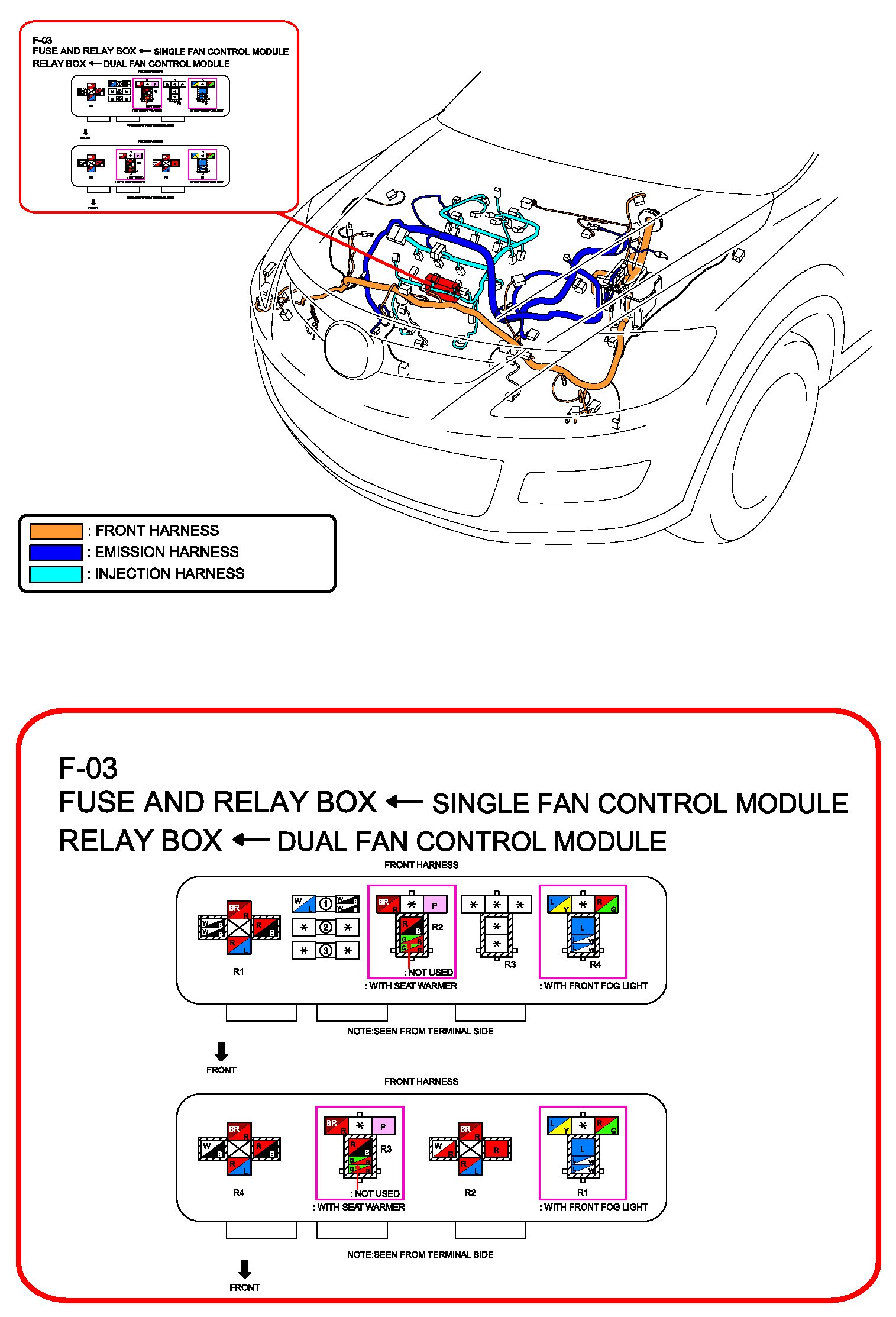

F-03 (Fuse and Relay Box-Single Fan Control Module, Relay Box-Dual Fan Control Module)
F-03 Fuse And Relay Box:
