Specification (Unloaded)

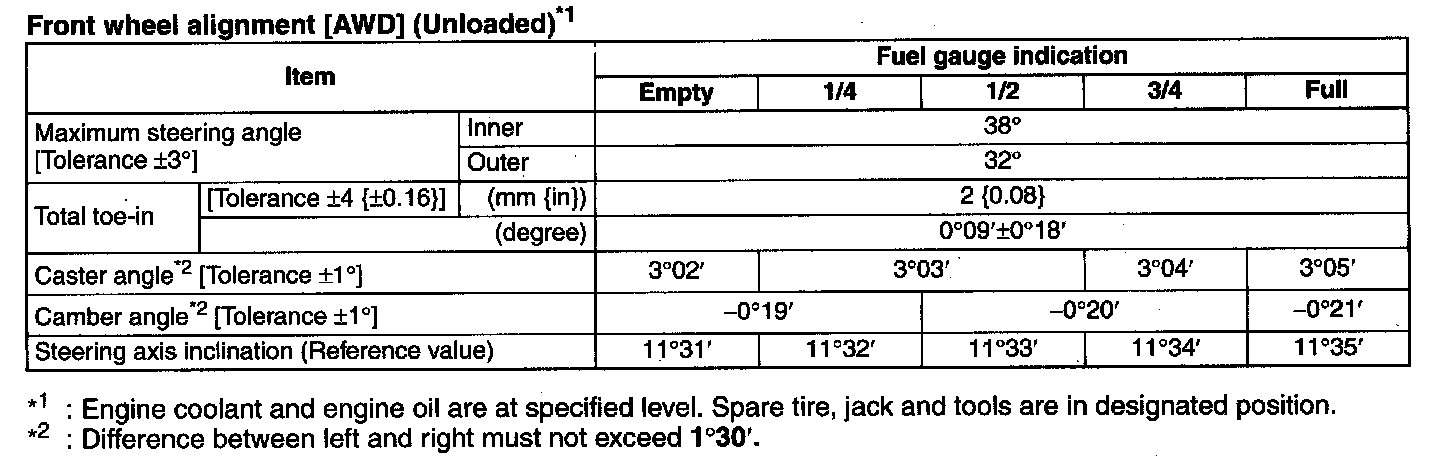

Front wheel alignment [AWD] (Unloaded)*1

Front wheel alignment [AWD] (Unloaded)*1:
