Wheel Alignment

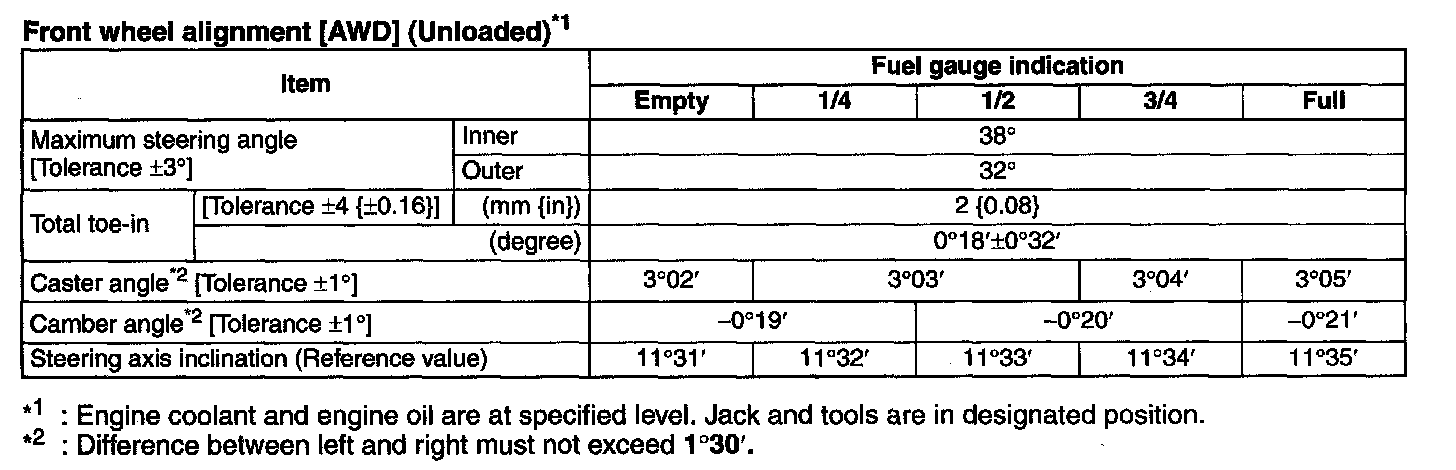

Front Wheel Alignment [AWD] (Unloaded) *1

Front wheel alignment [AWD] (Unloaded) *1:

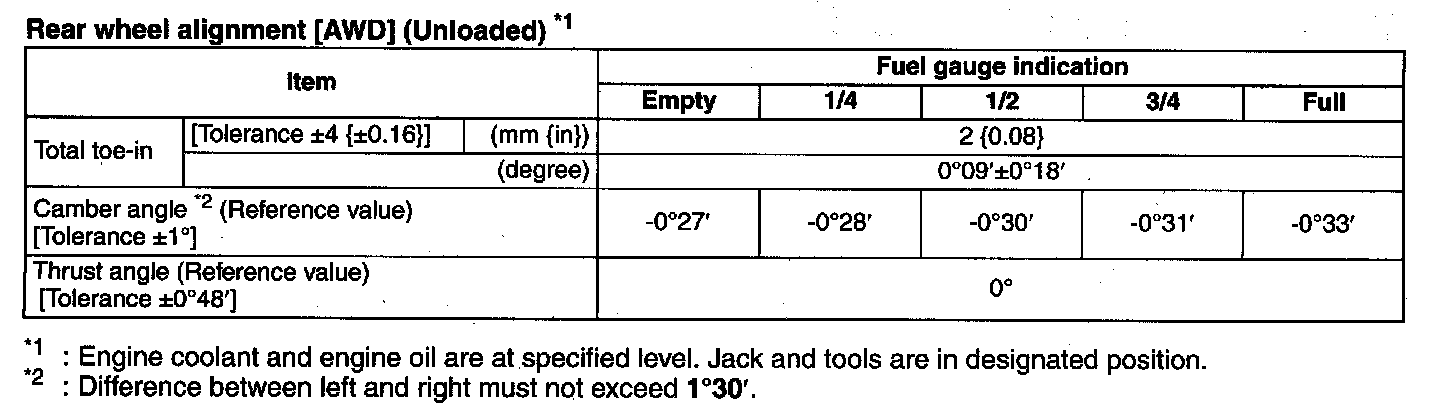

Rear Wheel Alignment [AWD] (Unloaded) *1

Rear wheel alignment [AWD] (Unloaded) *1:
