Pinout Values and Diagnostic Parameters

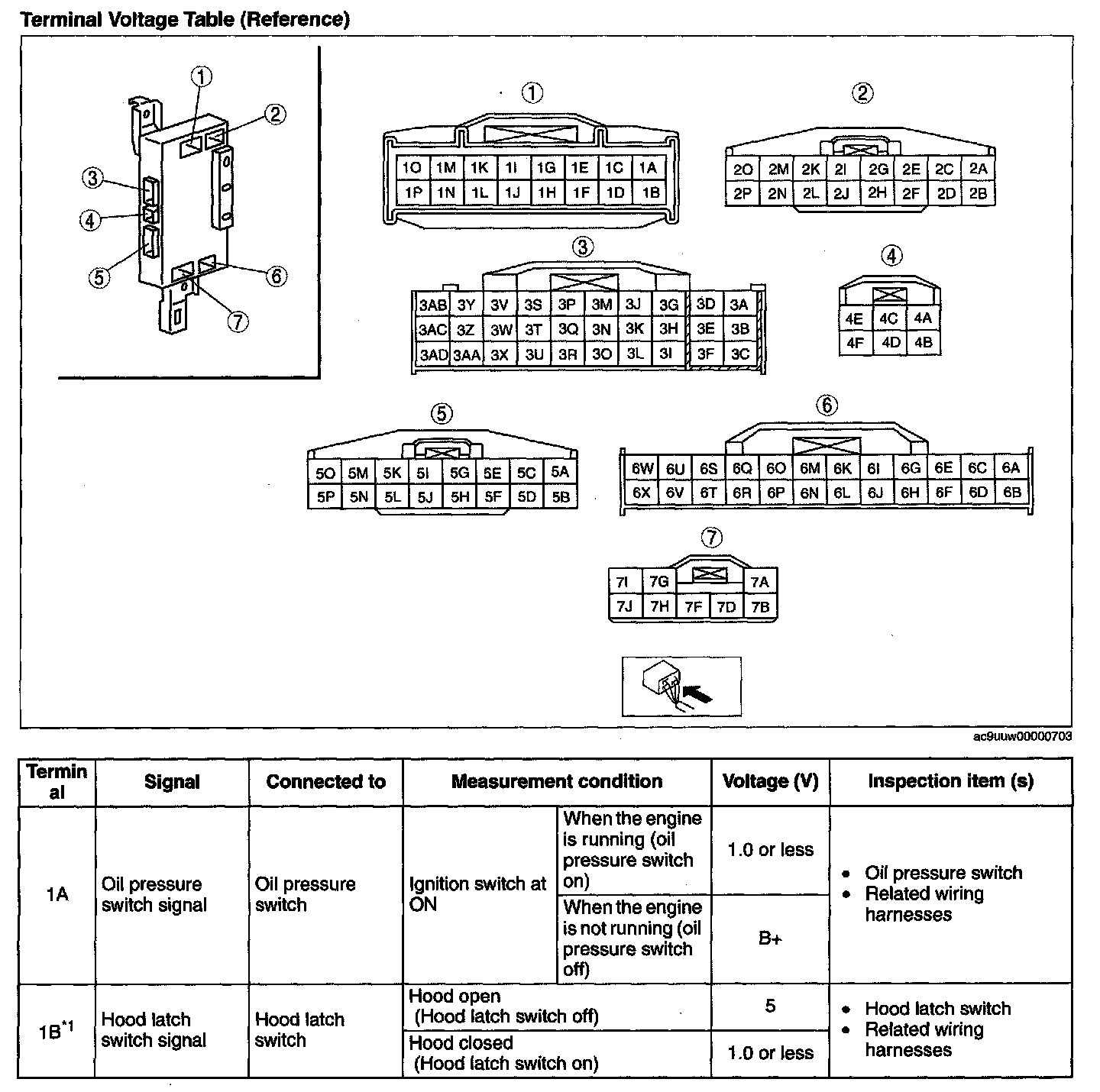

Terminal Voltage Table (Reference) (Part 1):

Terminal Voltage Table (Reference) (Part 2):

Terminal Voltage Table (Reference) (Part 3):

Terminal Voltage Table (Reference) (Part 4):

Terminal Voltage Table (Reference) (Part 5):

Terminal Voltage Table (Reference) (Part 6):

Terminal Voltage Table (Reference) (Part 7):

Terminal Voltage Table (Reference) (Part 8):

Terminal Voltage Table (Reference) (Part 9):
