Engine Technical Data

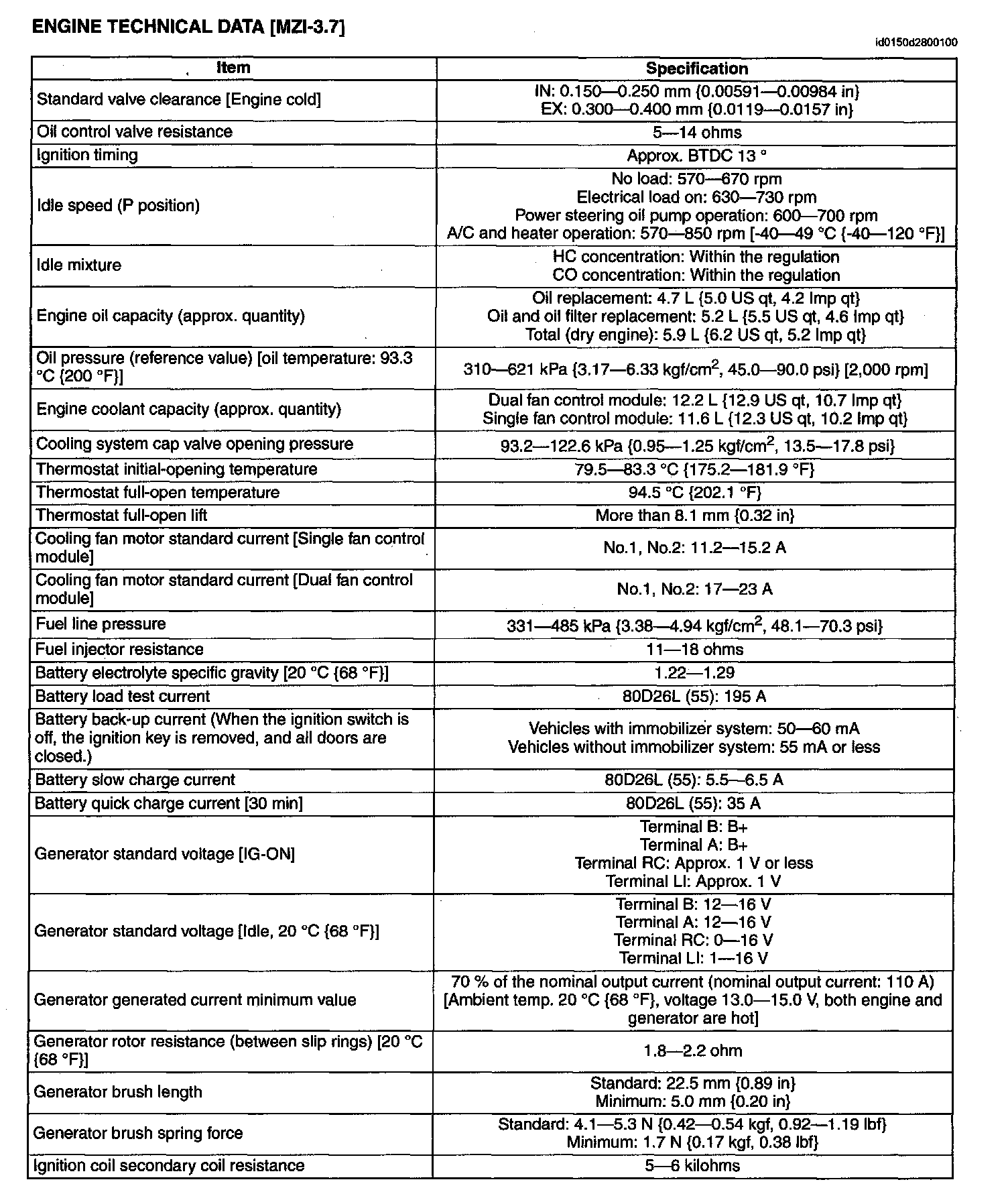

Engine Technical Data [MZI-3.7] (Part 1):

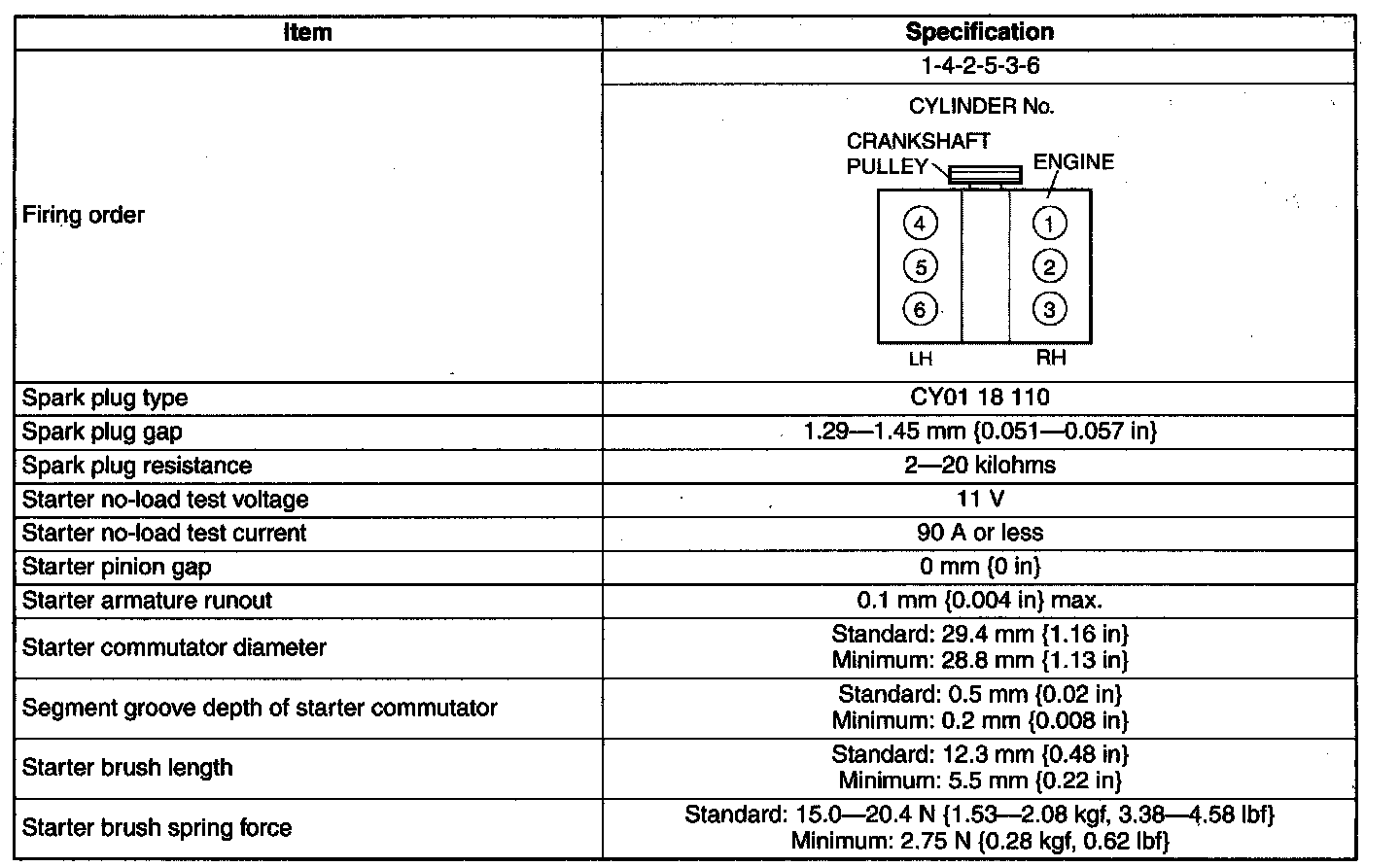

Engine Technical Data [MZI-3.7] (Part 2):
