Wheel Alignment

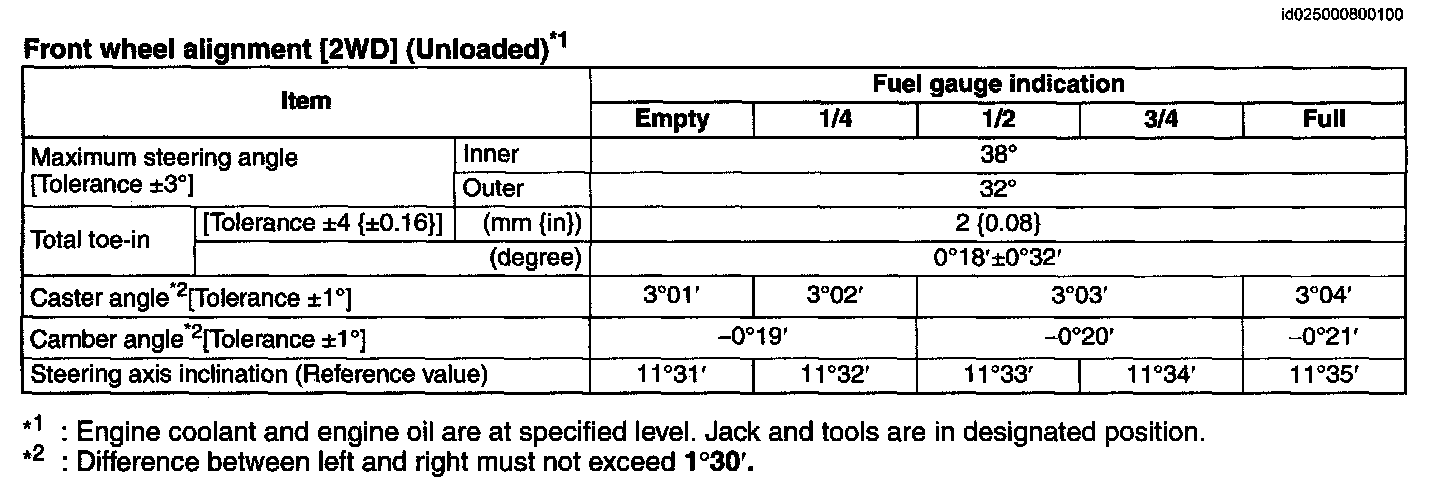

Front Wheel Alignment [2WD] (Unloaded) *1

Front wheel alignment [2WD] (Unloaded) *l:

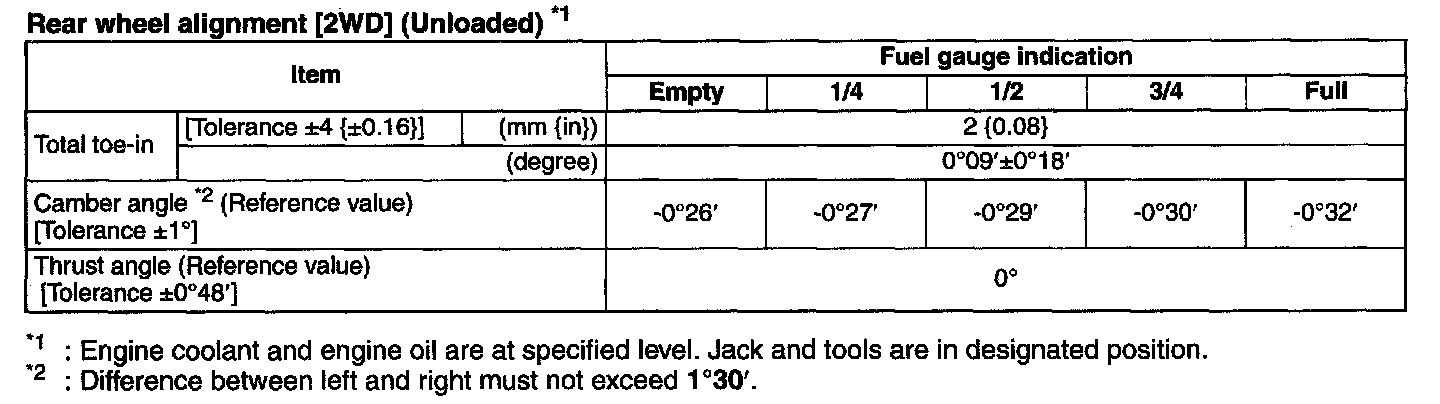

Rear Wheel Alignment [2WD] (Unloaded) *1

Rear wheel alignment [2WD] (Unloaded) *1:
