Disassembled Views

DISASSEMBLED VIEWS

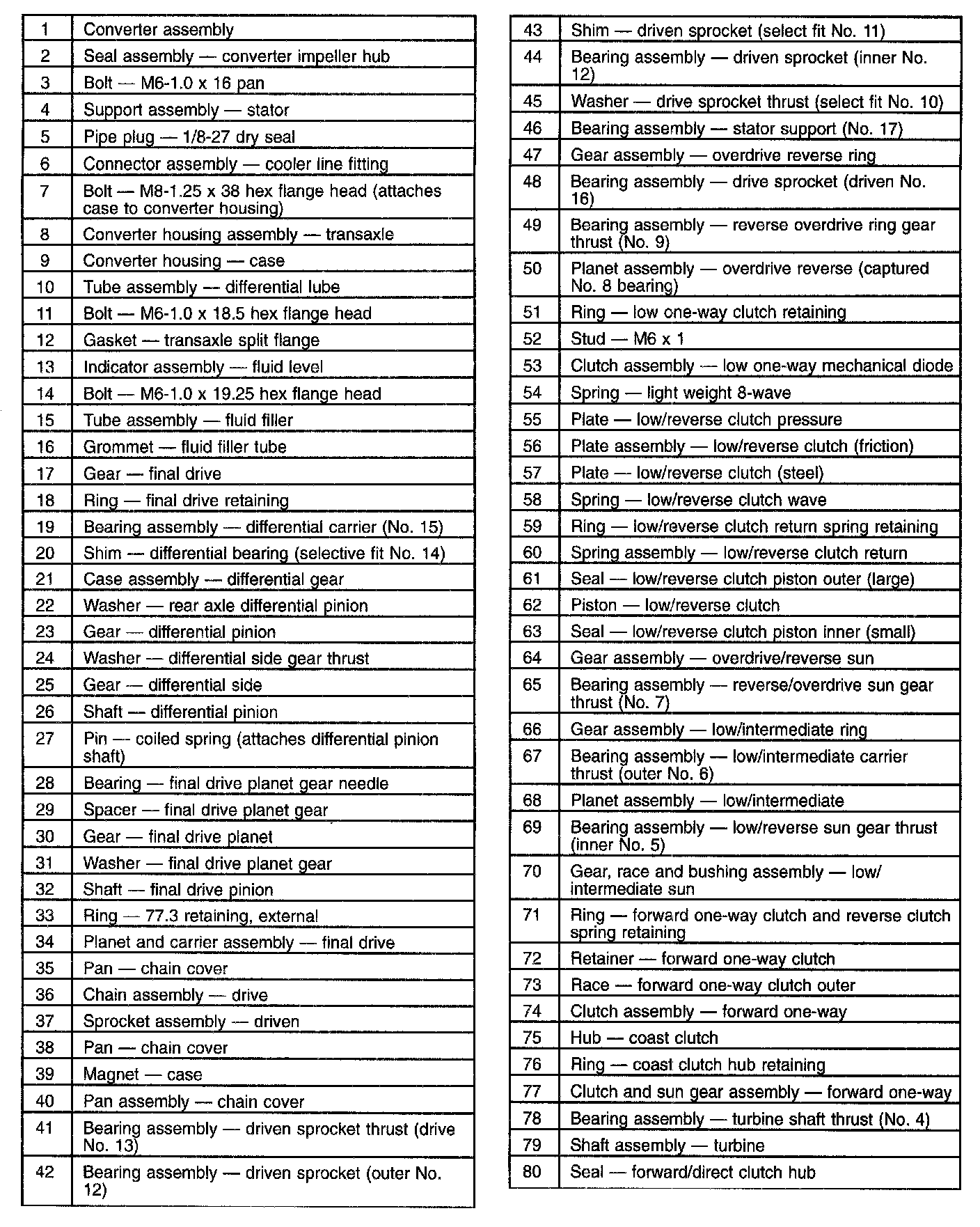

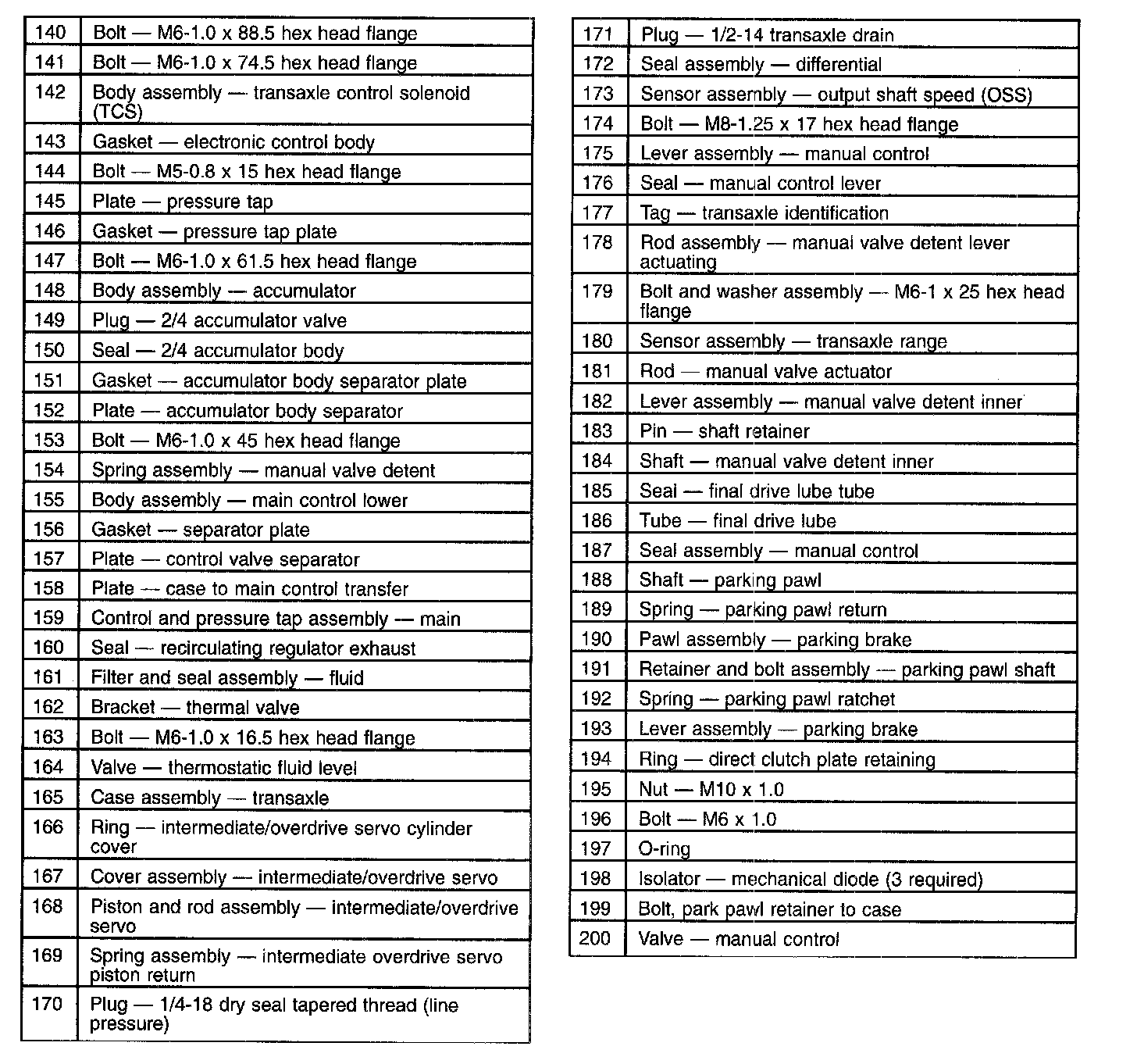

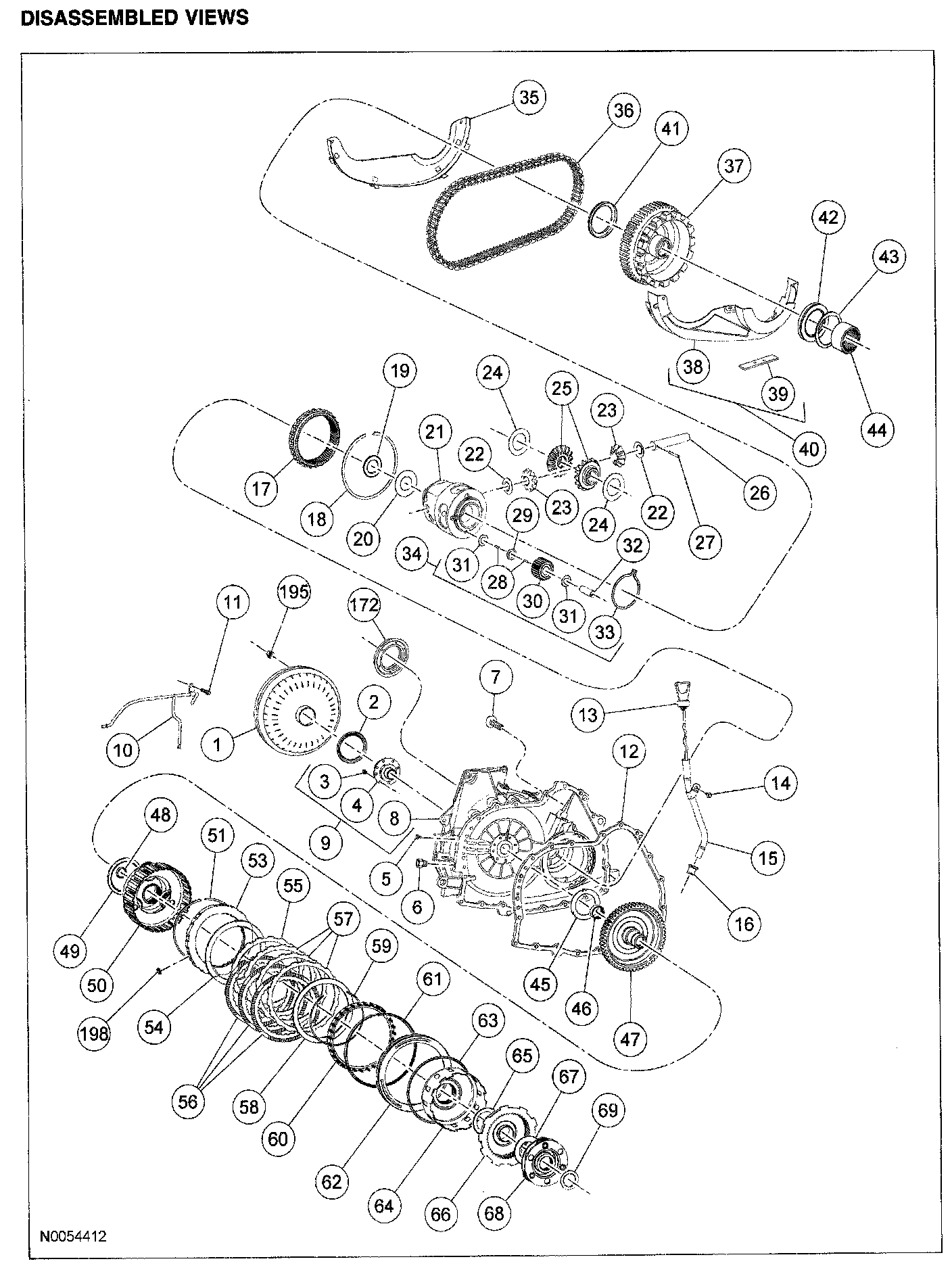

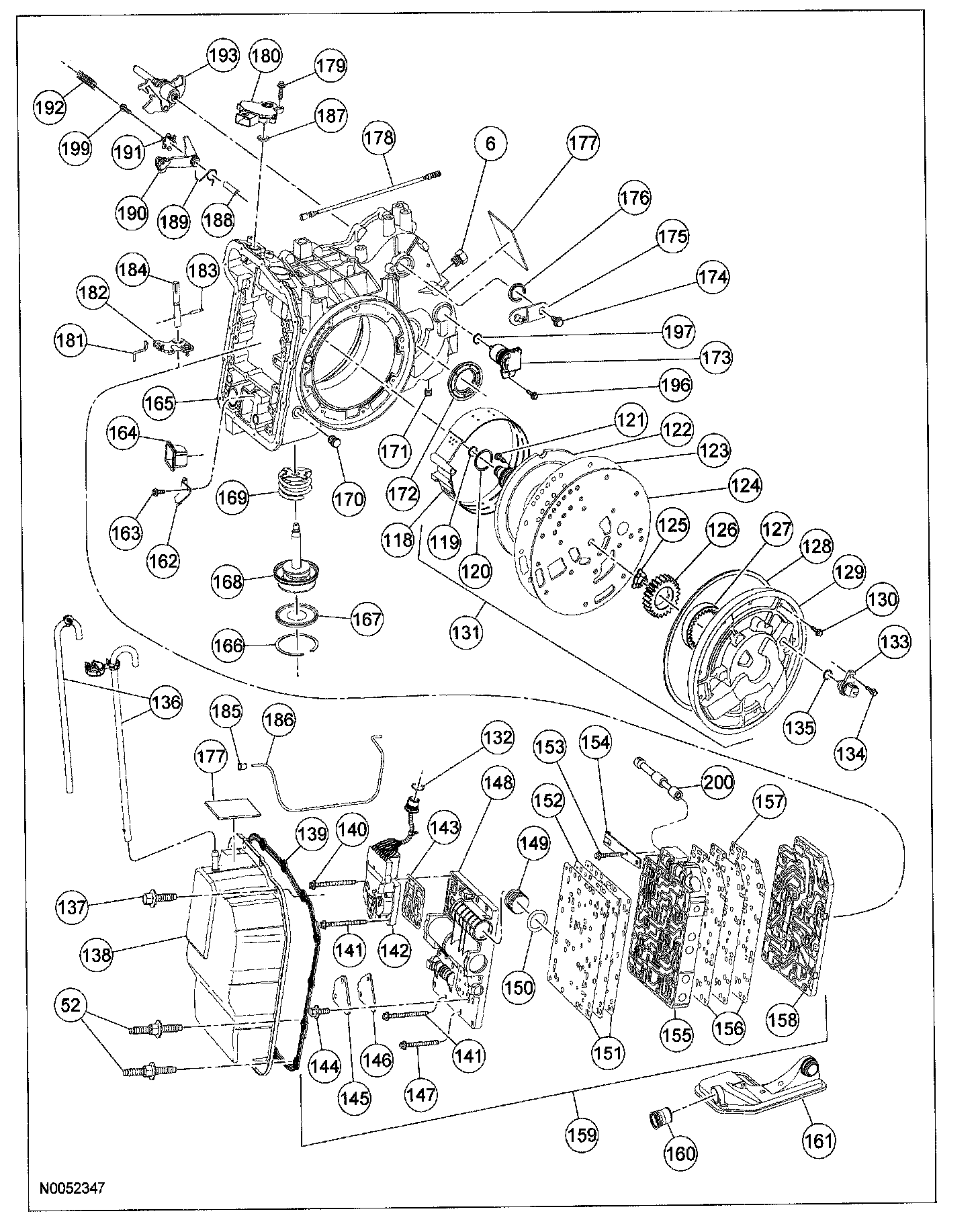

Disassembled Views (Part 1):




Disassembled Views (Part 2):




Disassembled Views (Part 3):




Disassembled Views (Part 4):




Disassembled Views (Part 5):




Disassembled Views (Part 6):
