Engine

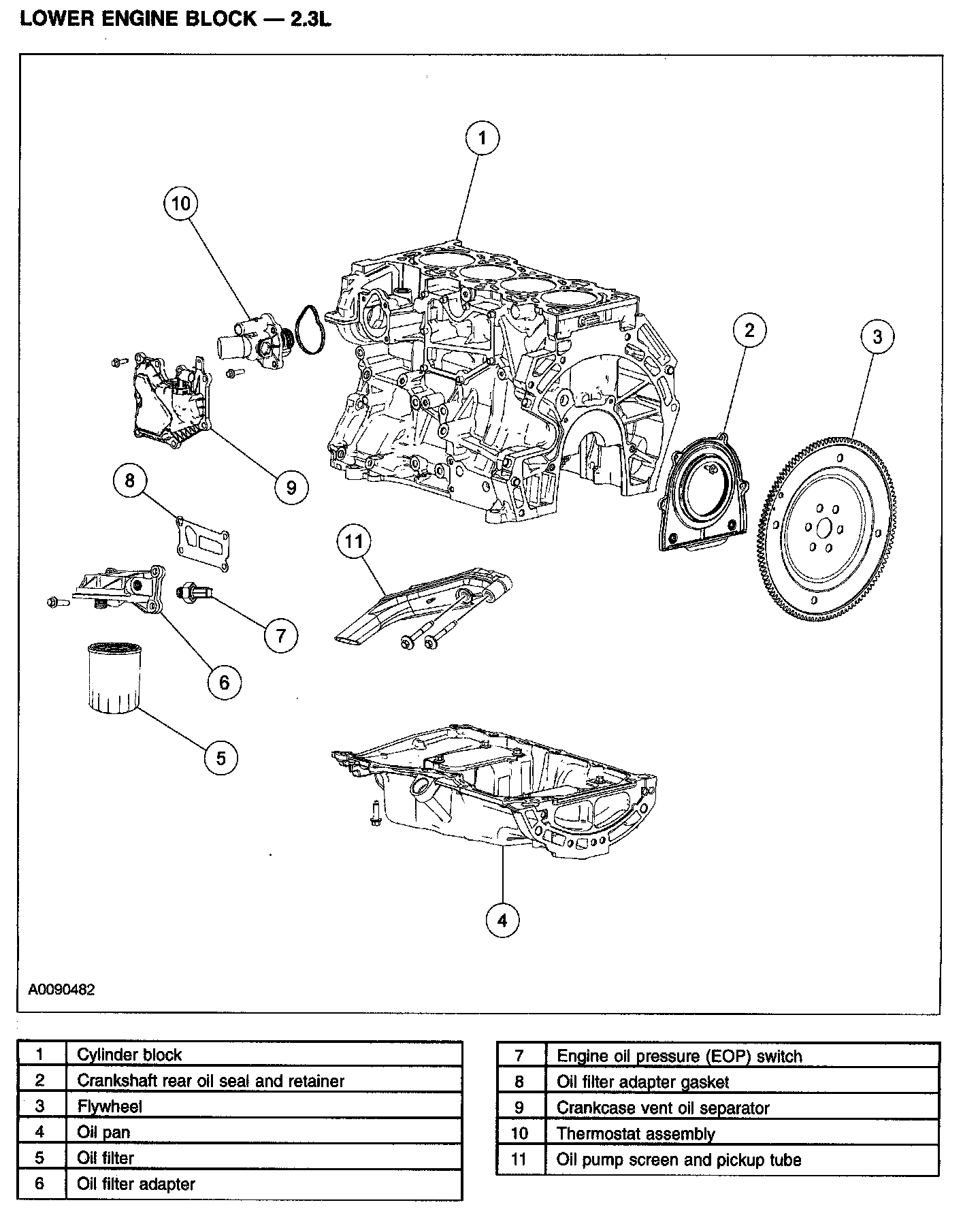

LOWER ENGINE BLOCK - 2.3L EXPLODED VIEWLower Engine Block - 2.3L:

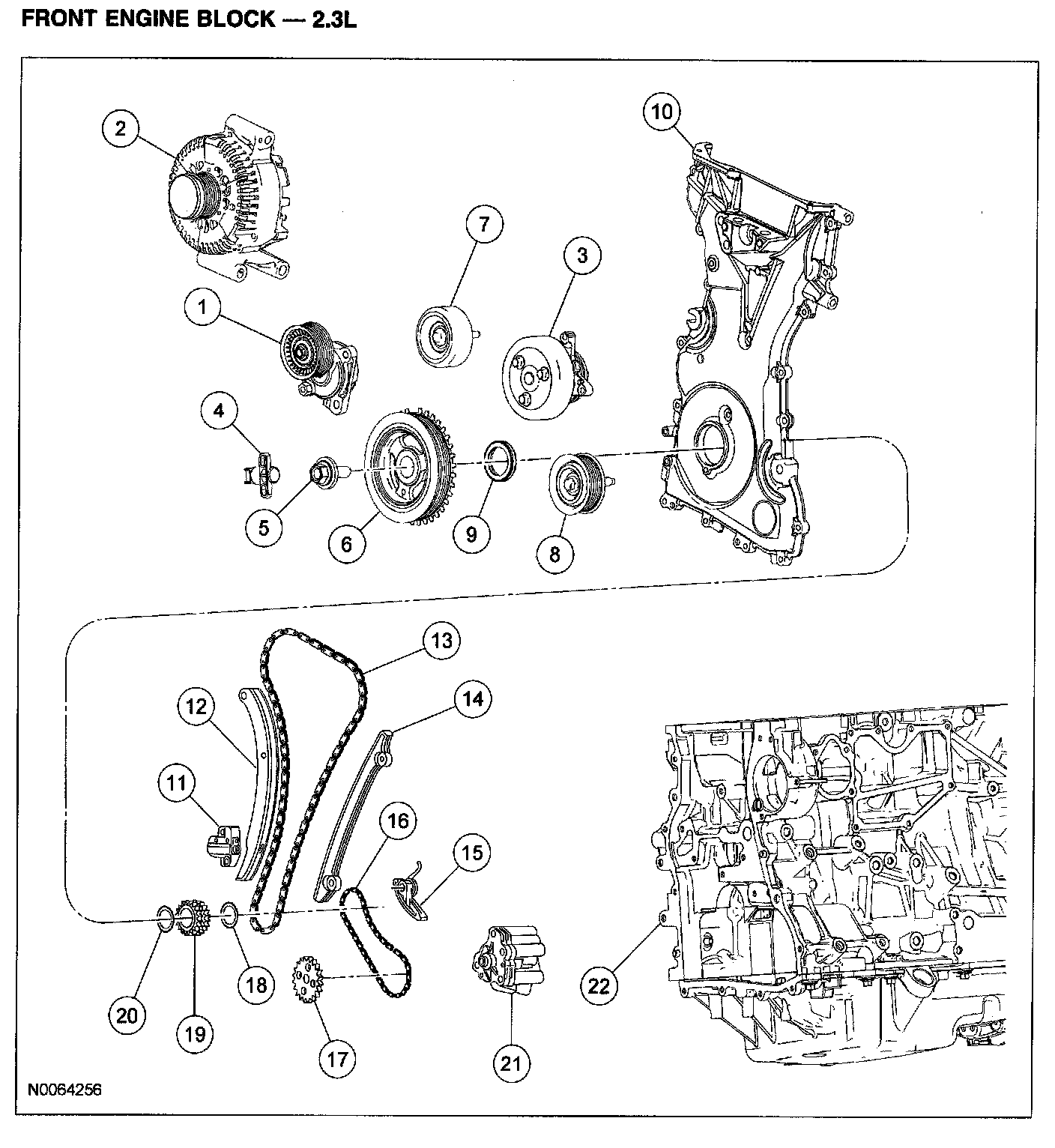

FRONT ENGINE BLOCK - 2.3L EXPLODED VIEW

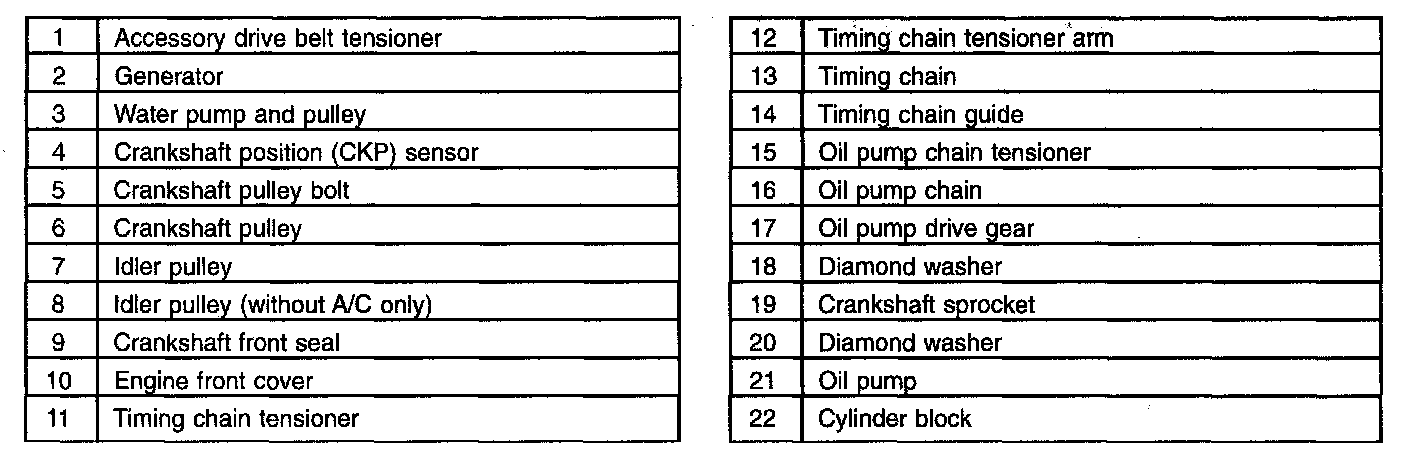

Front Engine Block - 2.3L (Part 1):
Front Engine Block - 2.3L (Part 2):
INTAKE MANIFOLD - 2.3L EXPLODED VIEW
Intake Manifold - 2.3L:

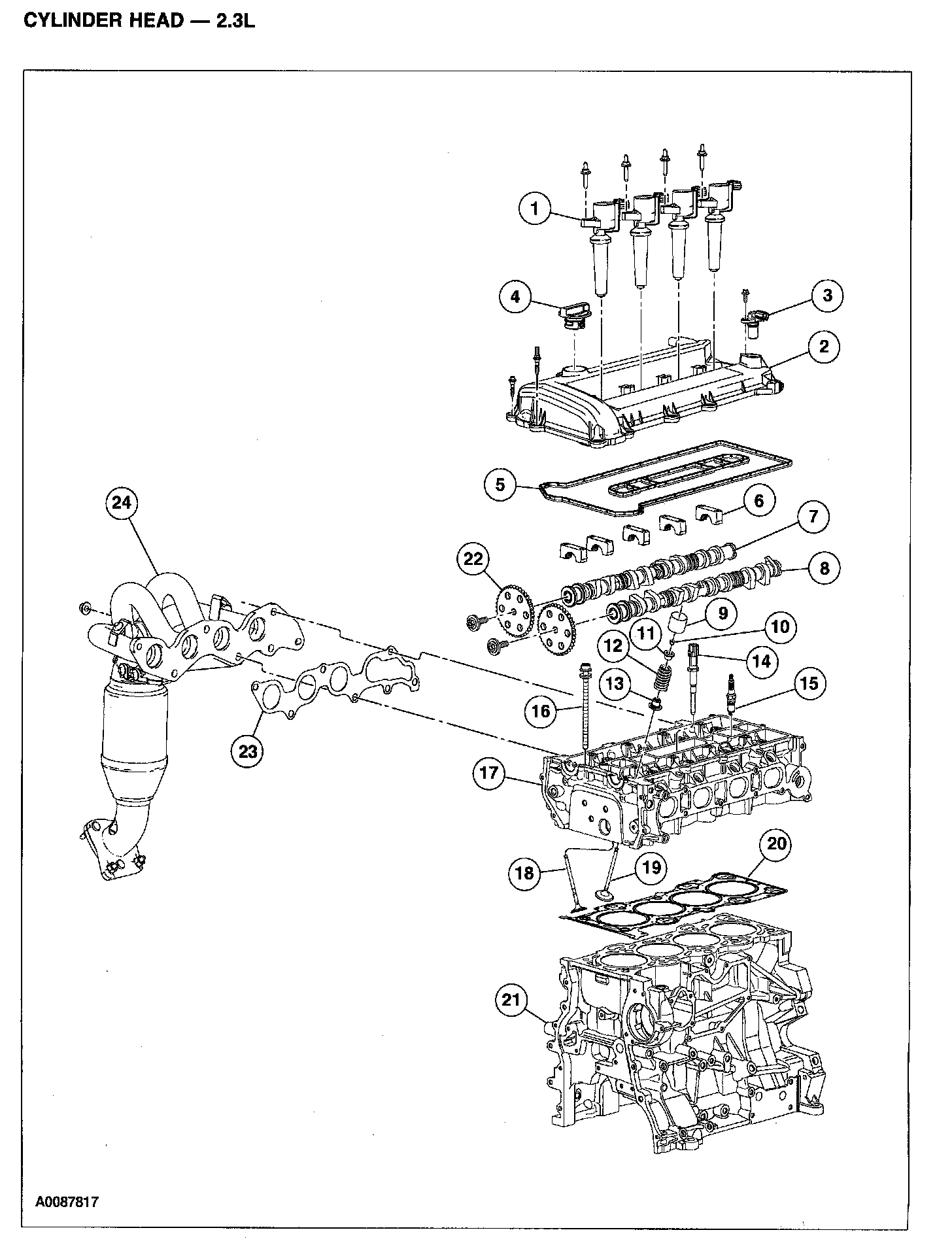

CYLINDER HEAD - 2.3L EXPLODED VIEW

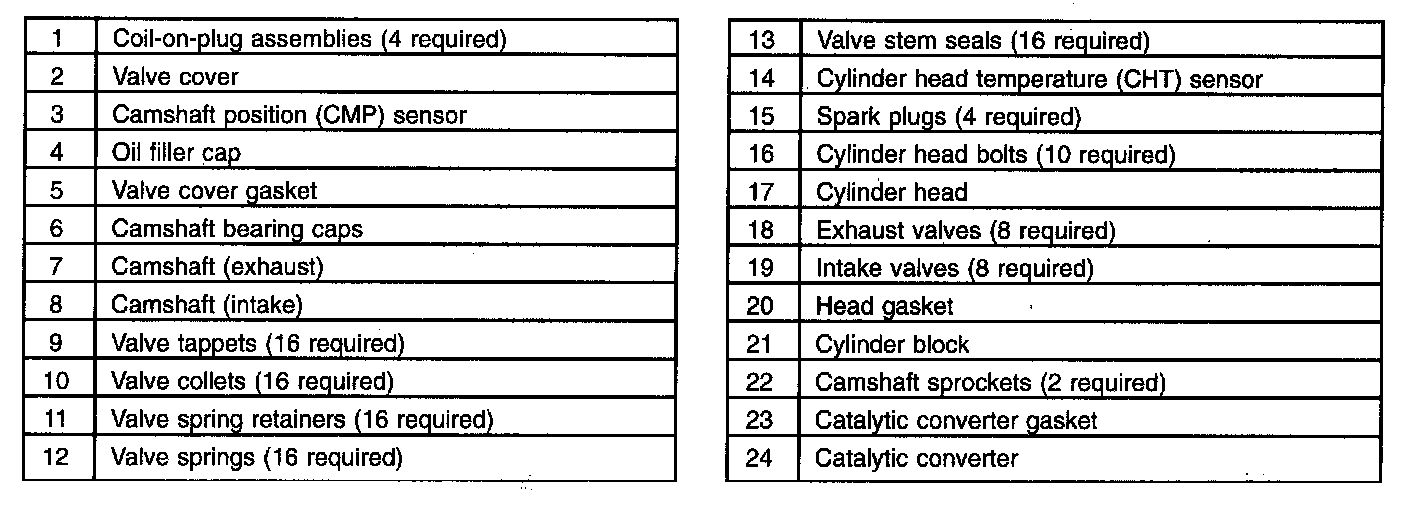

Cylinder Head - 2.3L (Part 1):
Cylinder Head - 2.3L (Part 2):
