Control Module: Service and Repair

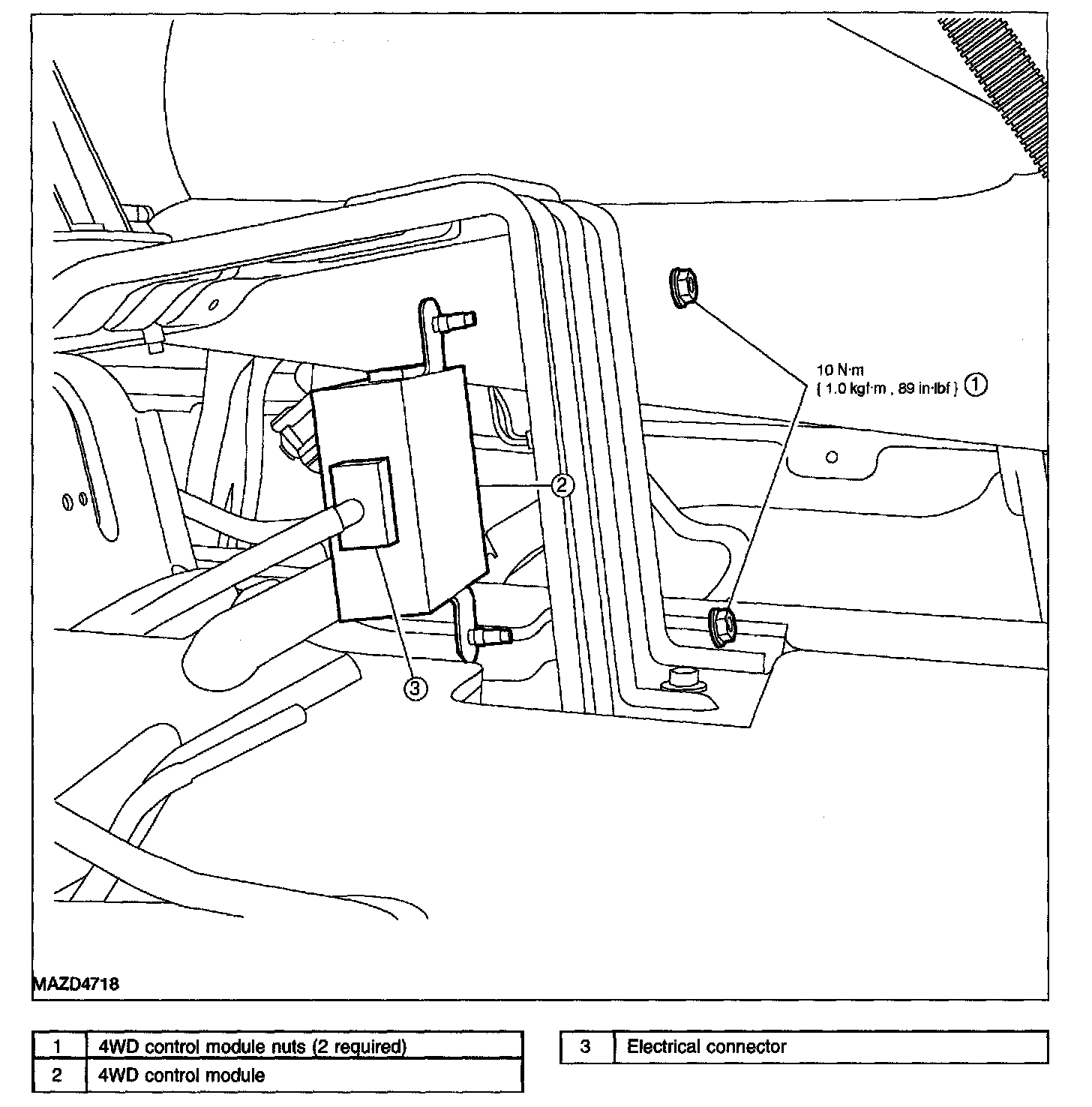

FOUR WHEEL DRIVE (4WD) CONTROL MODULE REMOVAL/INSTALLATION

Four Wheel Drive (4WD) Control Module:

1. Remove the floor console.
2. Remove the two 4WD control module nuts.
^ To install, tighten to 10 N-m {1.0 kgf-m, 89 in-lbf}
3. Remove the 4WD control module.
^ Disconnect the electrical connector.
4. To install, reverse the removal procedure.
