Power Transistor HVAC: Service and Repair

POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the PJB and PJB bracket. Service and Repair

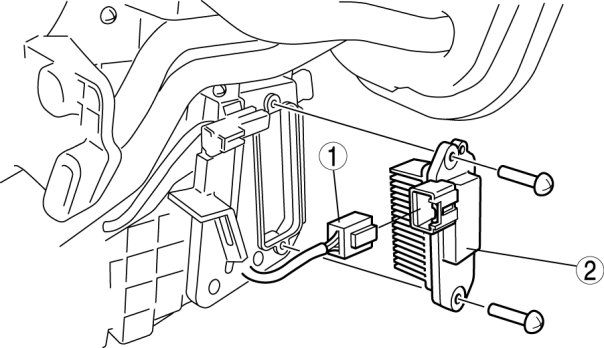

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
