Refrigerant Pressure Sensor / Switch: Testing and Inspection

REFRIGERANT PRESSURE SWITCH INSPECTION

1. Install the gas charging set.

2. Disconnect the refrigerant pressure switch connector.

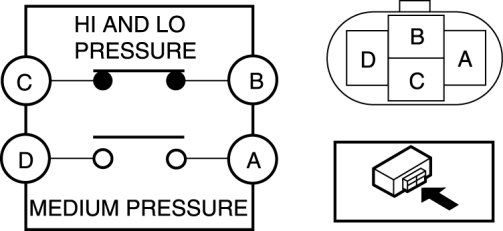

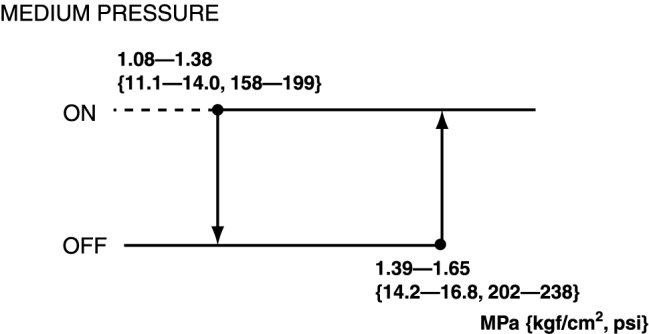

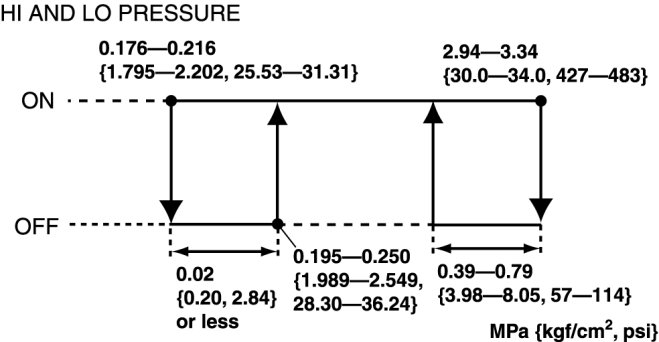

3. Verify the high-pressure side reading of the manifold gauge and continuity between the refrigerant pressure switch terminals.

- If there is any malfunction, replace the refrigerant pressure switch.
