Transmission Position Sensor/Switch: Specifications




TRANSMISSION/TRANSAXLE TECHNICAL DATA

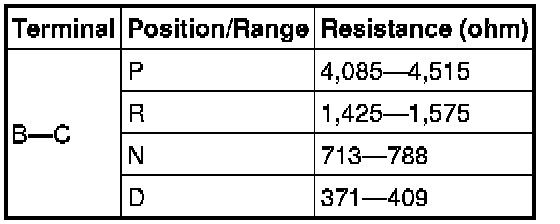

Transaxle range (TR) switch
