Accessory Control Display: Service and Repair

LCD UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the decoration panel. Decoration Panel Removal/Installation

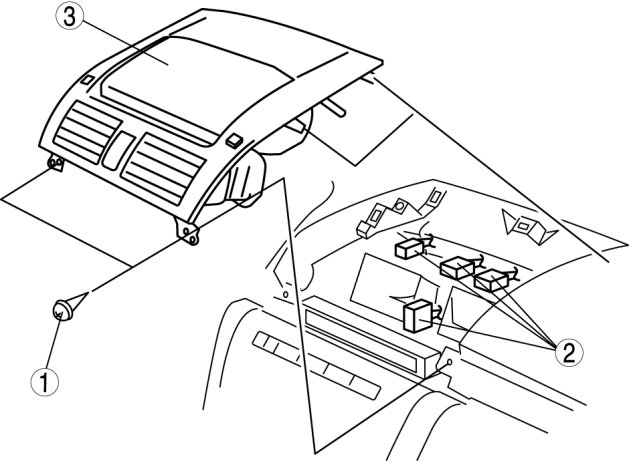

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

LCD Unit Removal Note

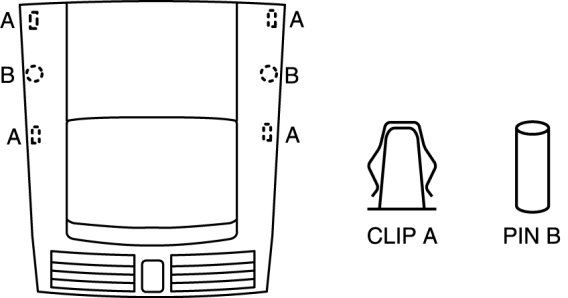

1. Pull the lower LCD unit outward, detach clip A and pin B from the dashboard, and then remove the LCD unit.
