Navigation Function Selector Switch: Service and Repair

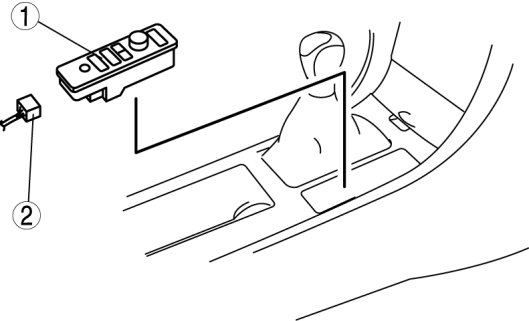

CAR-NAVIGATION CONTROL SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.

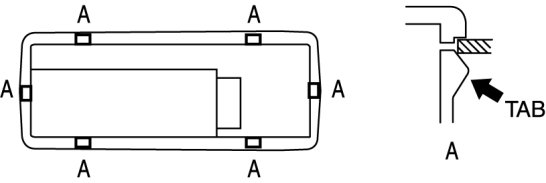

Car-Navigation Control Switch Removal Note

1. Pry the car-navigation control switch from the console using a flathead screwdriver wrapped with protective tape.
