Trunk / Liftgate Lock Cylinder: Service and Repair

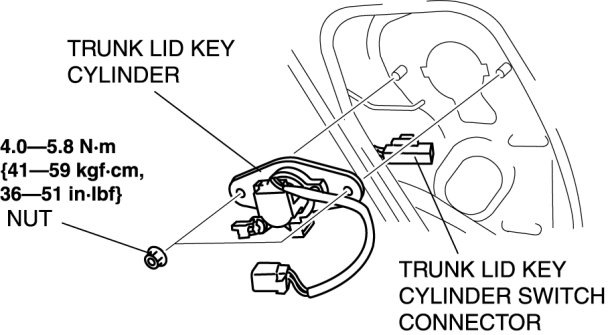

TRUNK LID KEY CYLINDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the trunk lid trim.

3. Detach the rod from the trunk lid key cylinder.

4. Disconnect the trunk lid key cylinder connector.

5. Remove the nuts, then remove the trunk lid key cylinder.






6. Install in the reverse order of removal.
