Radiator Support: Service and Repair

SHROUD PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front bumper Removal and Replacement

b. Front combination light Front Combination Light Removal/Installation

c. Front bumper reinforcement Service and Repair

d. Hood latch Service and Repair

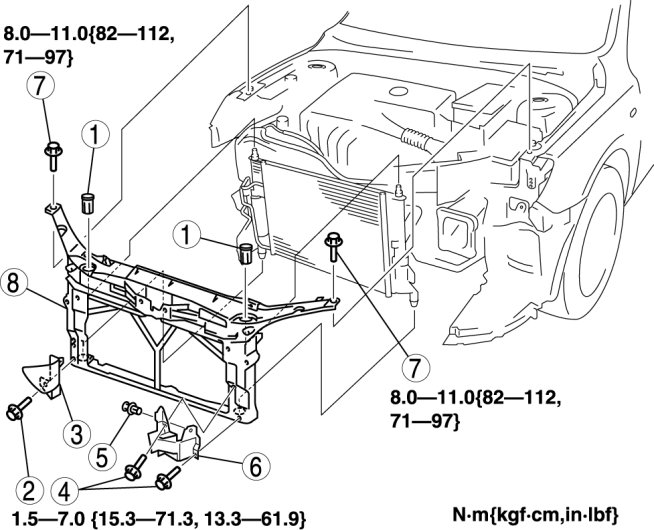

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
