Seat Temperature Switch: Service and Repair

SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the ashtray panel. Removal and Replacement

3. Disconnect the seat warmer connector.

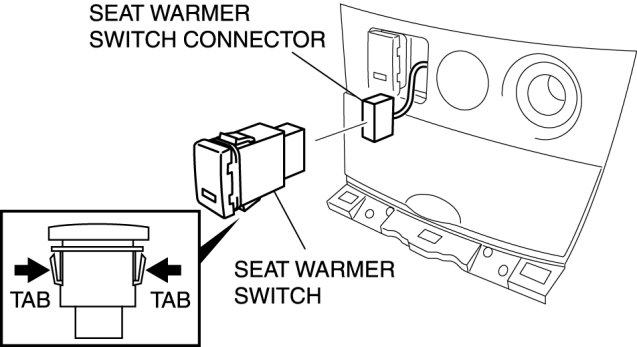

4. Squeeze the tabs of seat warmer switch and pull it outward to remove it.

5. Install in the reverse order of removal.
