Traction Control Switch: Service and Repair




DSC OFF SWITCH REMOVAL/INSTALLATION

1. Remove the lower panel. Lower Panel Removal/Installation

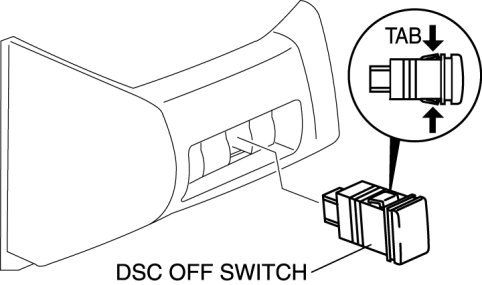

2. While squeezing the tabs of the DSC OFF switch, pull the DSC OFF switch outward to remove it from the lower panel.






3. Install in the reverse order of removal.
