System Specifications

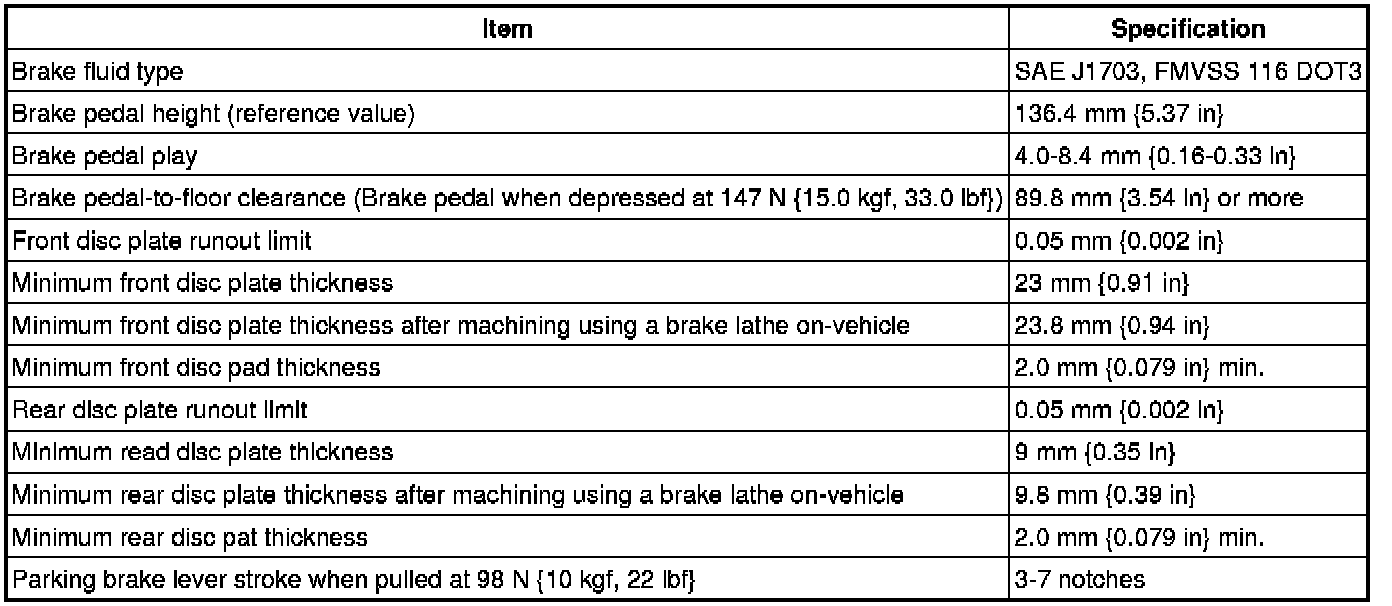

BRAKES TECHNICAL DATA

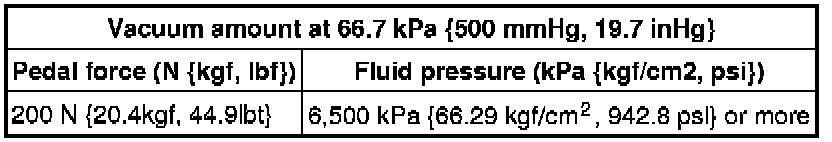

Master cylinder fluid pressure





Master cylinder fluid pressure (except L3 WITH TC)





Master cylinder fluid pressure (L3 WITH TC)

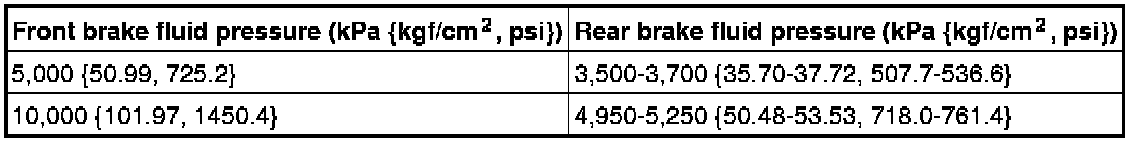

Proportioning valve fluid pressure
