Ignition Switch: Service and Repair

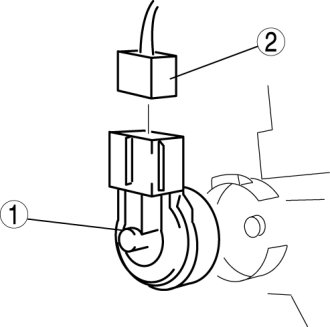

IGNITION SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

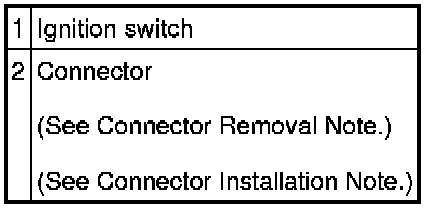

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Connector Removal Note

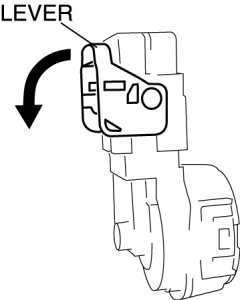

1. Rotate the lever in the direction of the arrow and remove the connector.






Connector Installation Note

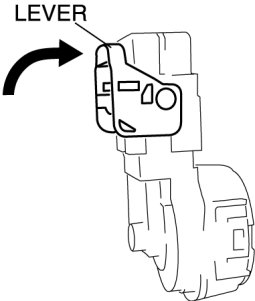

1. After connecting the connector, rotate the lever in the direction of the arrow to install the connector.
