Windshield Washer Switch: Service and Repair

WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (Driver's side) Front Scuff Plate Removal/Installation

b. Front side trim (Driver's side) Front Side Trim Removal/Installation

c. Hood release lever Service and Repair

d. Lower panel Lower Panel Removal/Installation

e. Column cover Service and Repair

3. Disconnect the wiper and washer switch connector.

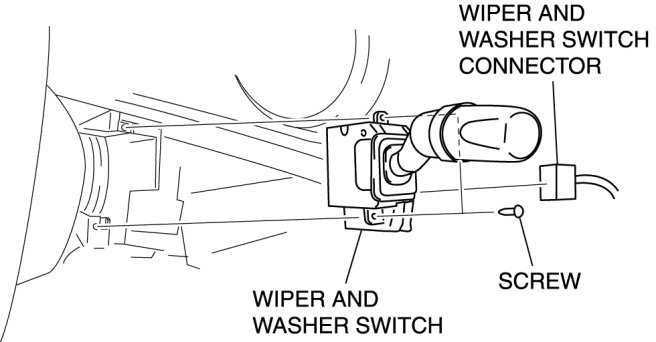

4. Remove the screws, then remove the wiper and washer switch.

5. Install in the reverse order of removal.
