System Specifications




SUSPENSION TECHNICAL DATA

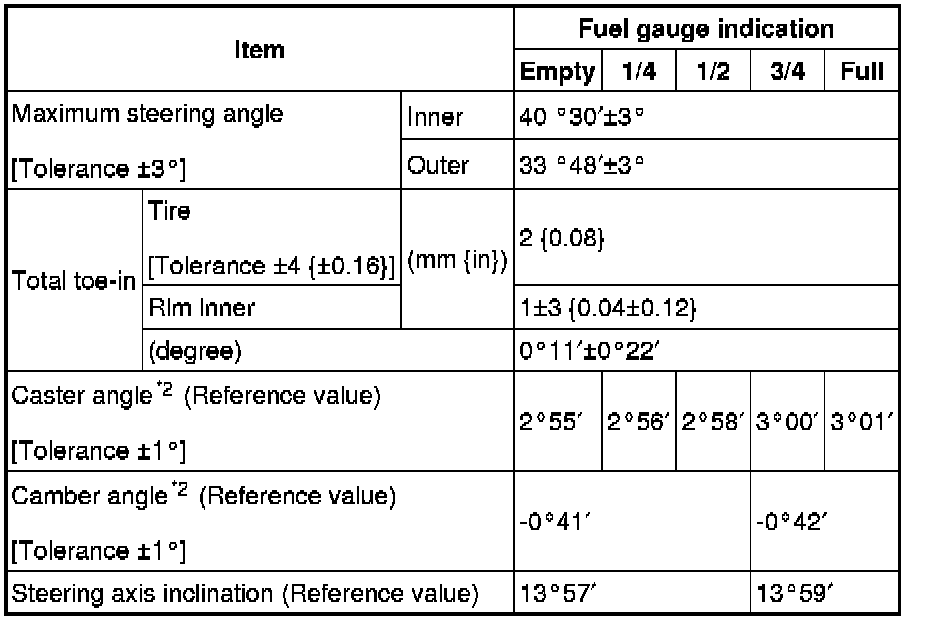

Front wheel alignment (Unloaded)*1





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30′.

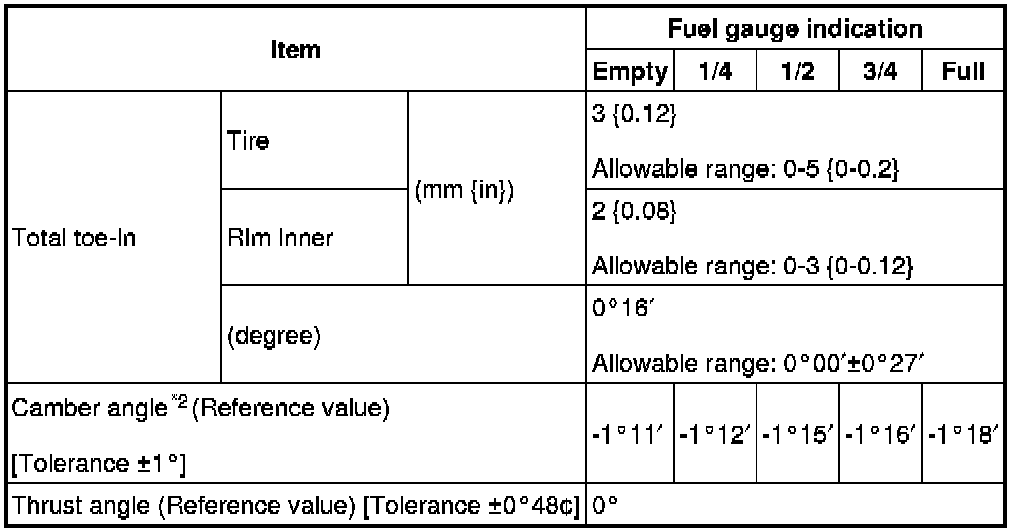

Rear wheel alignment (Unloaded)*1





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30′.

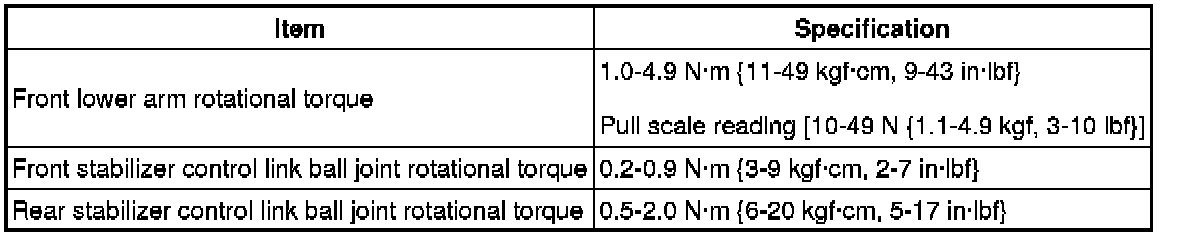

Suspension

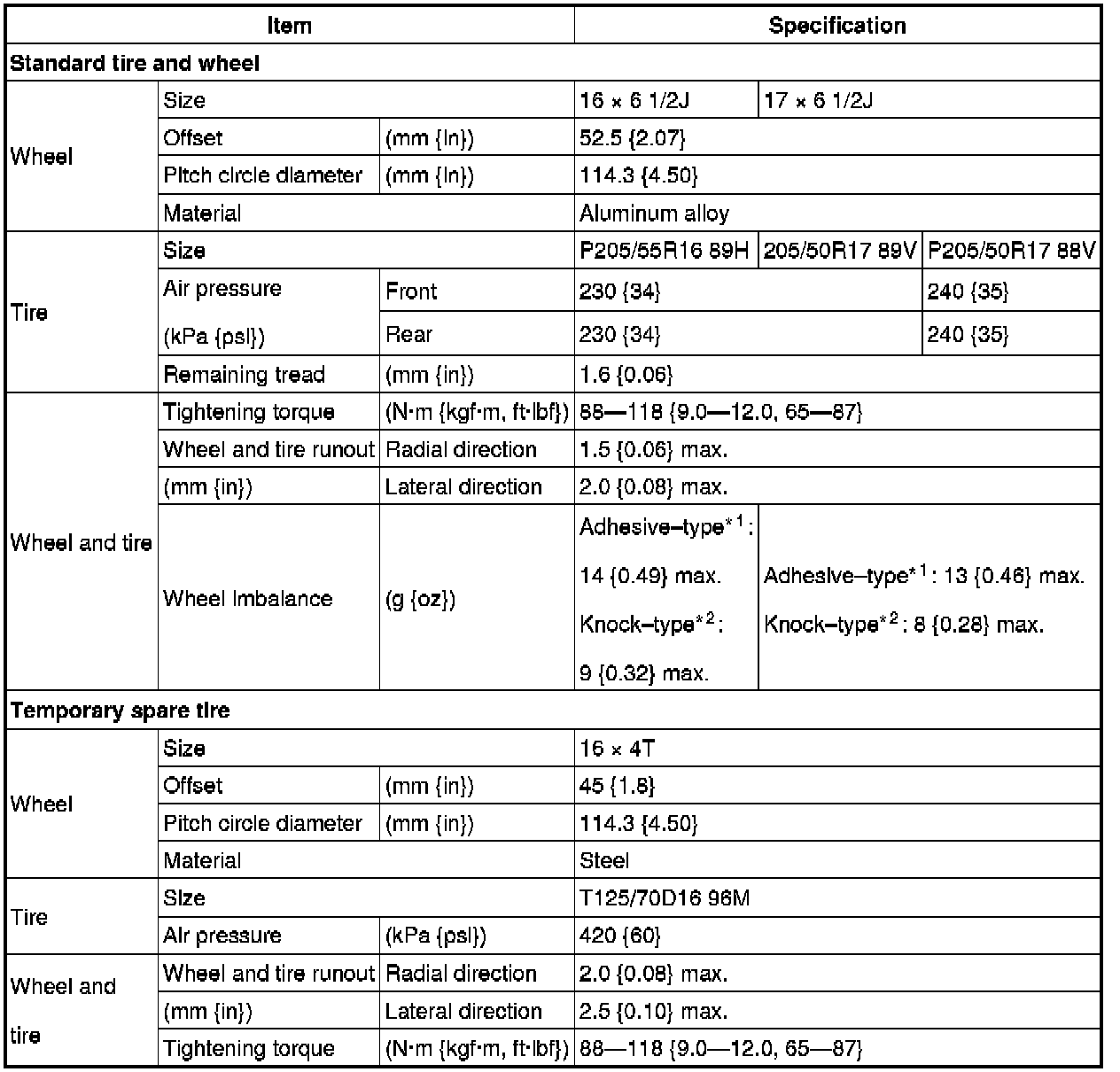

Wheel and tires
