Splash Shield Removal/Installation




SPLASH SHIELD REMOVAL/INSTALLATION

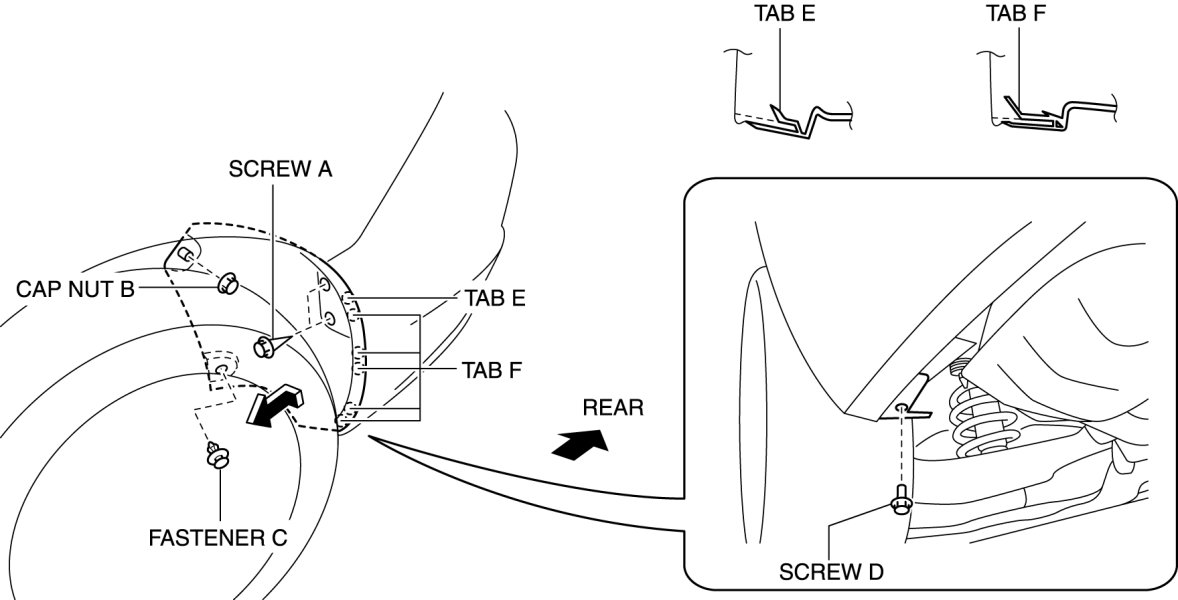

1. Remove the screws and cap nut then remove the splash shield in the direction of the arrow shown in the figure.






2. Install in the reverse order of removal.
