Intake Manifold

Intake Manifold

Throttle Body

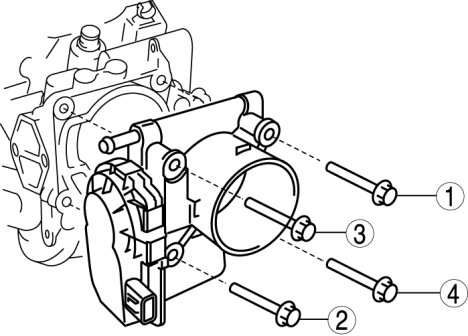

Tighten the installation bolts in the order shown in the figure.

Throttle body tightening torque 8-11 Nm {82-112 kgf-cm, 71-97 in-lbf}
