System Specifications




SUSPENSION TECHNICAL DATA

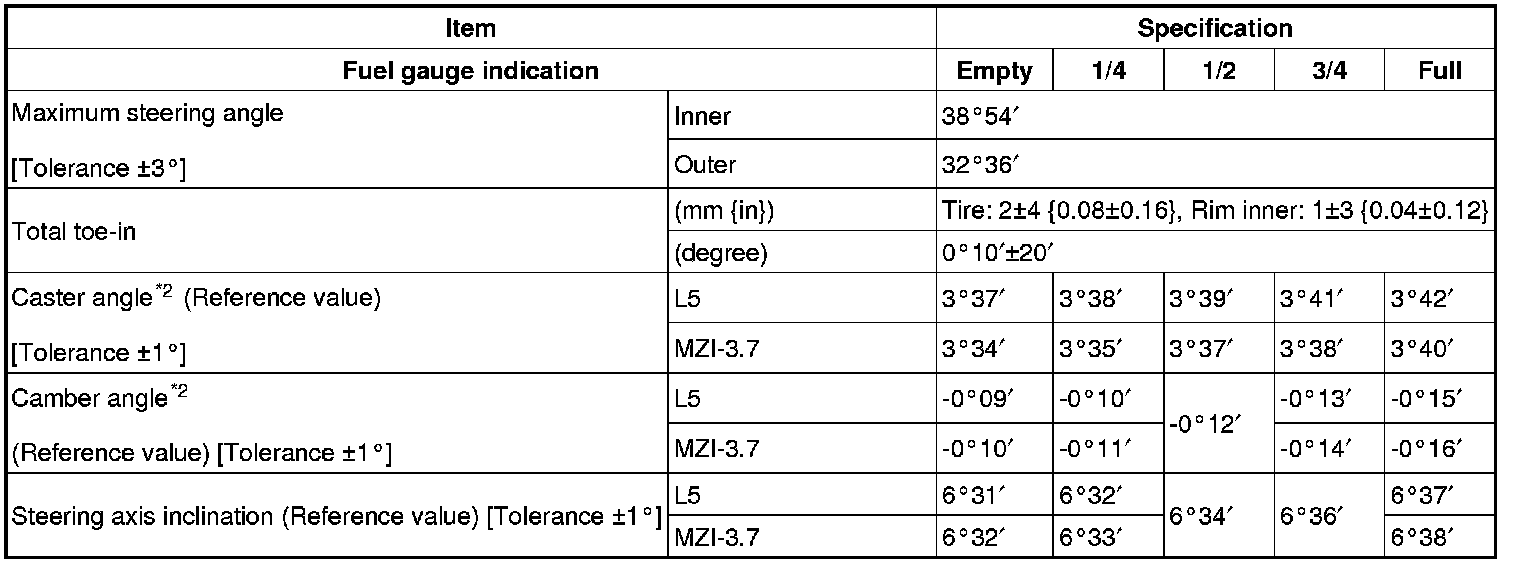

Front wheel alignmen (Unloaded)*1





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30′.

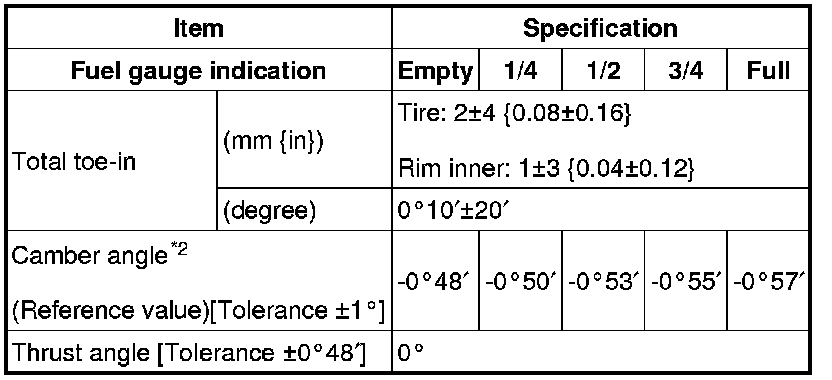

Rear wheel alignmen (Unloaded)*1





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30′.

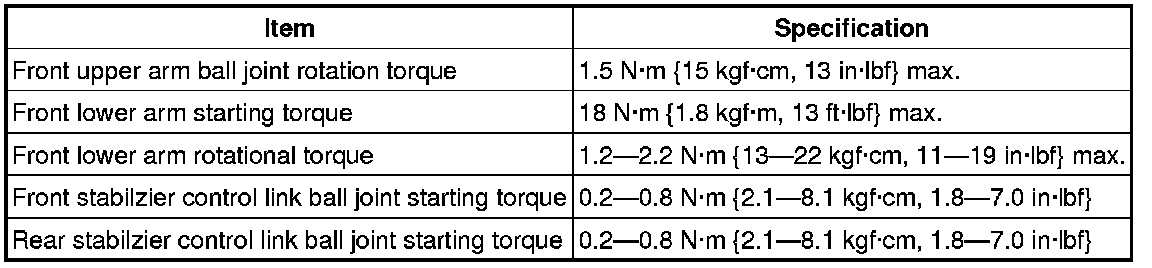

Suspension

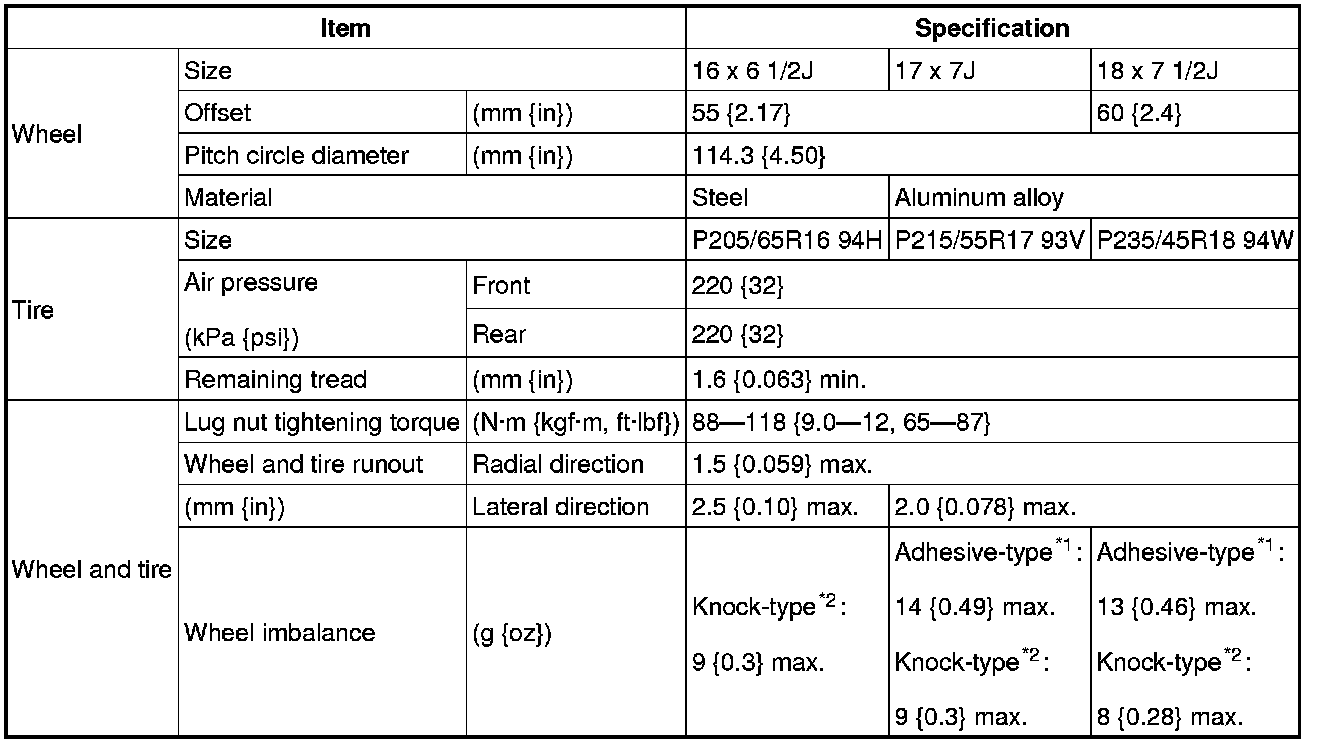

Standard tire and wheel





*1
Total weight exceeds 160 g {5.65 oz}.
*2
One balance weight: 60 g {2.12 oz} max. If the total weight exceeds 100 g {3.53 oz} on one side, rebalance after moving the tire around on the rim. Do not use three or more balance weights.

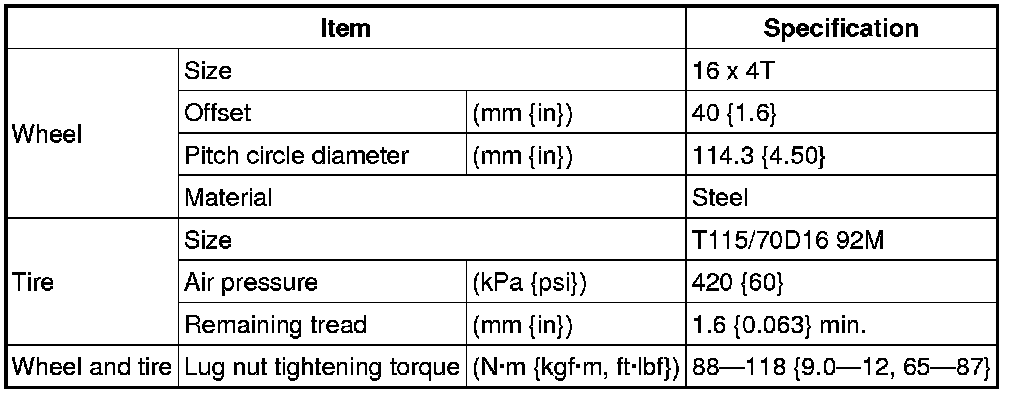

Temporary spare tire and wheel
