Power Window System Customized Function Setting Procedure

POWER WINDOW SYSTEM CUSTOMIZED FUNCTION SETTING PROCEDURE

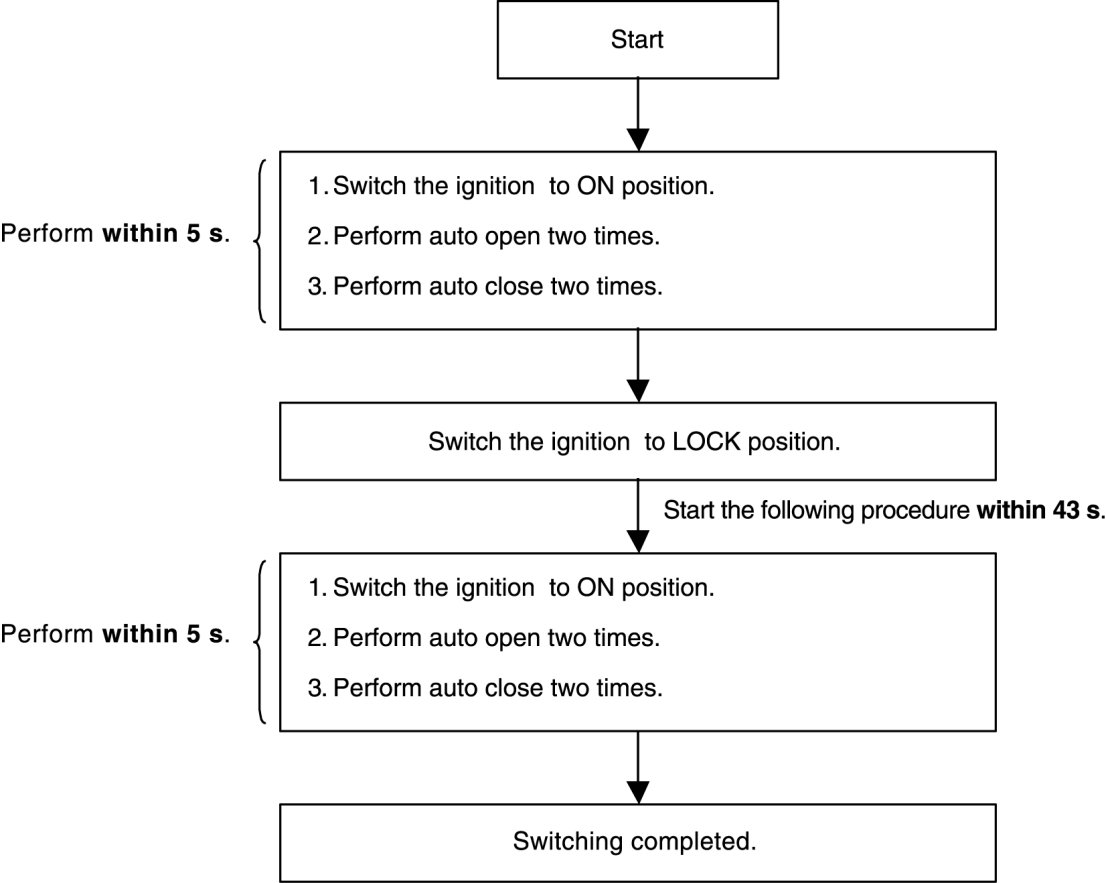

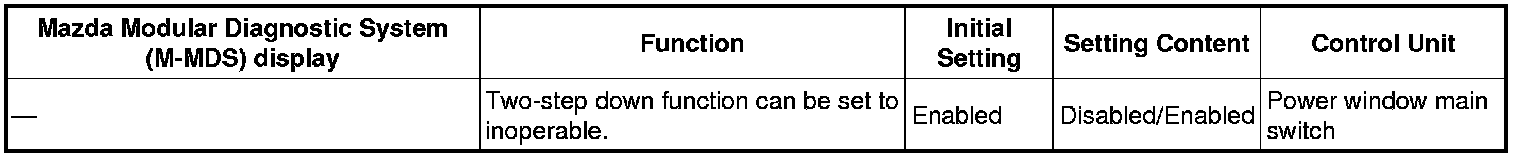

Two-step Down Function Operative/Non-operative Switching

NOTE:
- By following the procedure below, the two-step down function is switched to non-operative when it is operative, and to operative when it is non-operative.

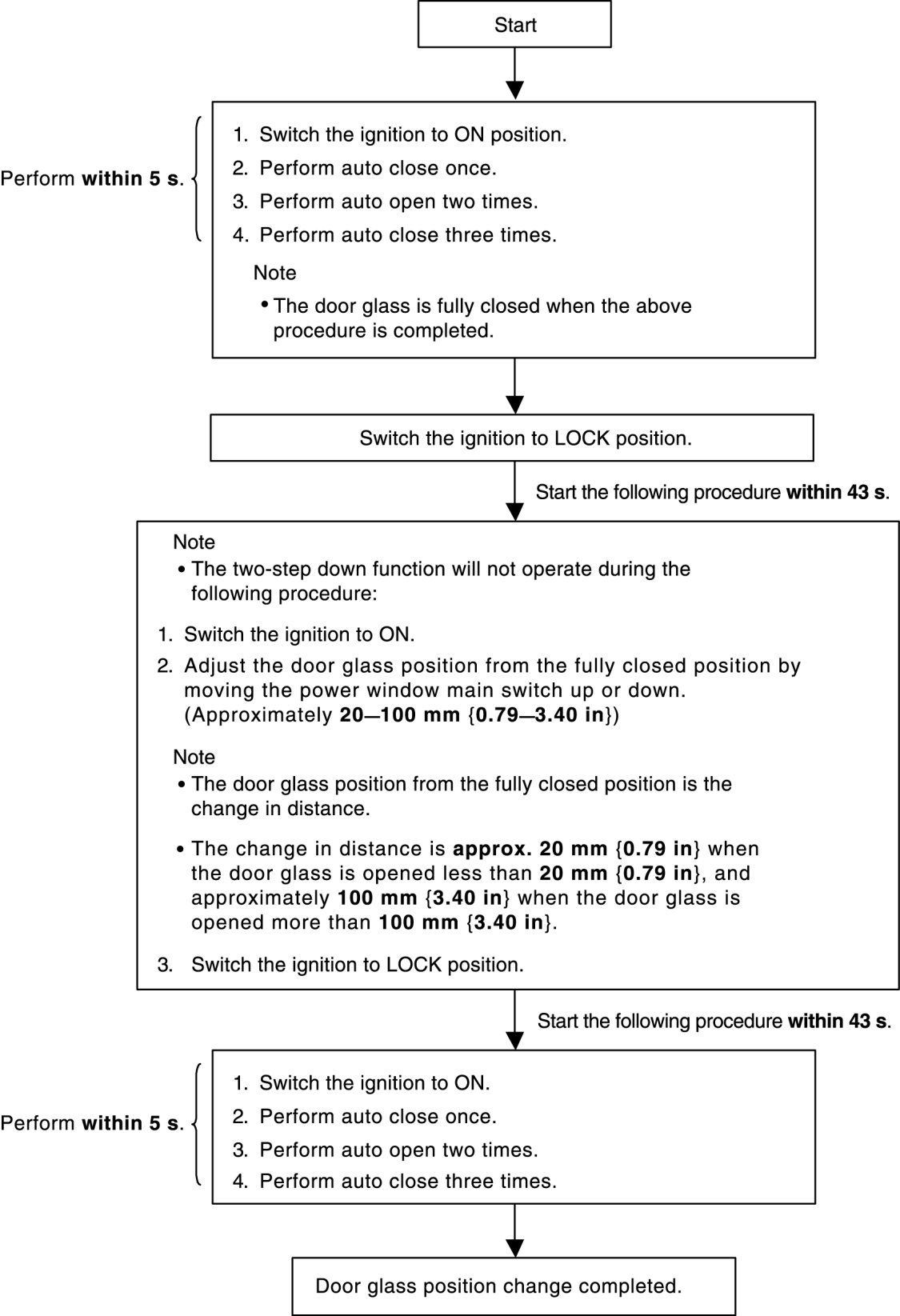

Door Glass Position Change

NOTE:
- After performing the following procedure, verify that the two-step down function operates normally and the door glass position has changed. If the two-step down function does not operate or the door glass position has not changed, the procedure was not performed properly. Repeat the procedure from the beginning.










Exterior Open/Close Function Switching

- The switching of exterior open/close function is controlled by the BCM. (See Programming and Relearning)
