Component Tests and General Diagnostics

AUTO LIGHT/WIPER CONTROL MODULE INSPECTION

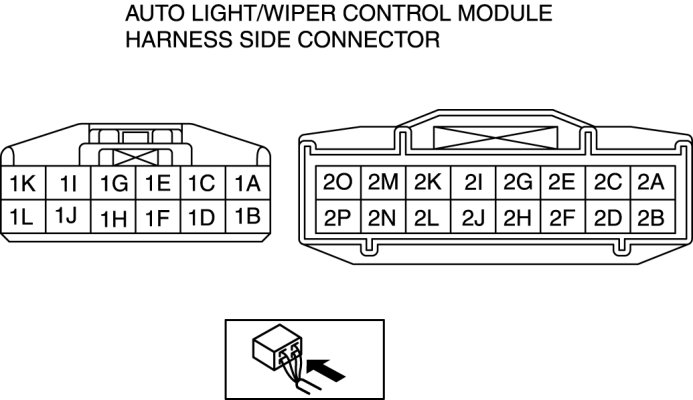

1. Measure the voltage at the auto light/wiper control module terminals as indicated below.

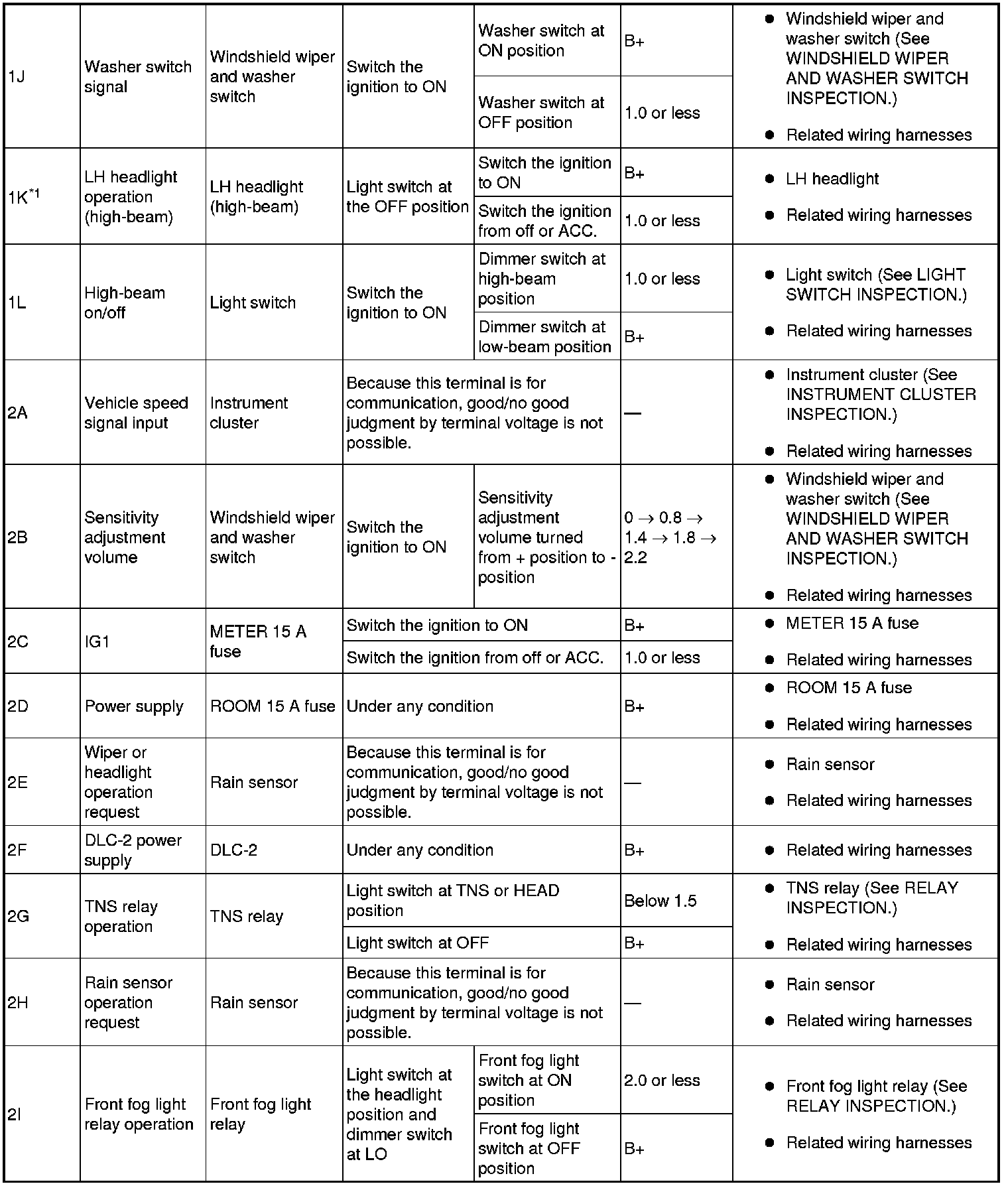

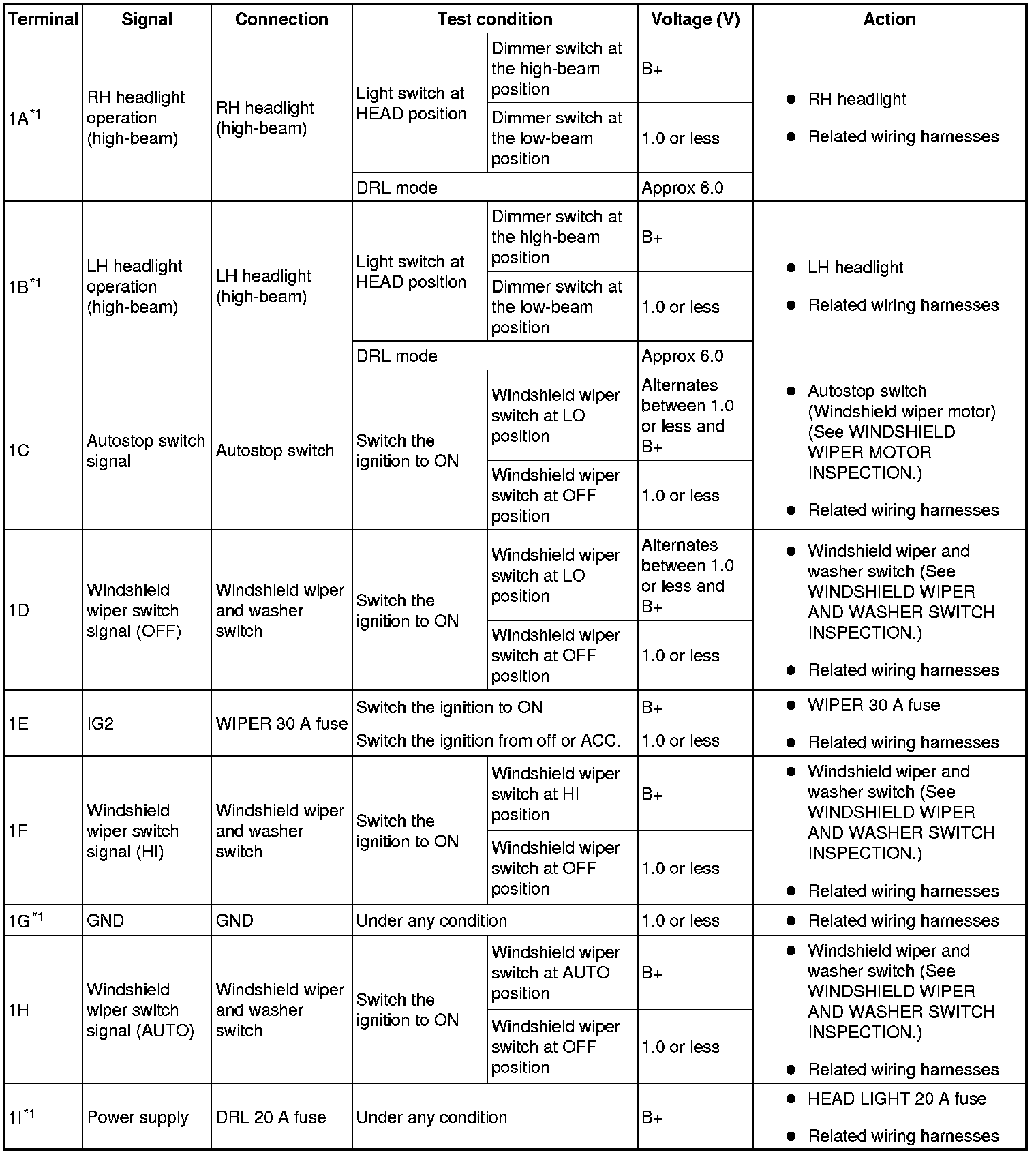

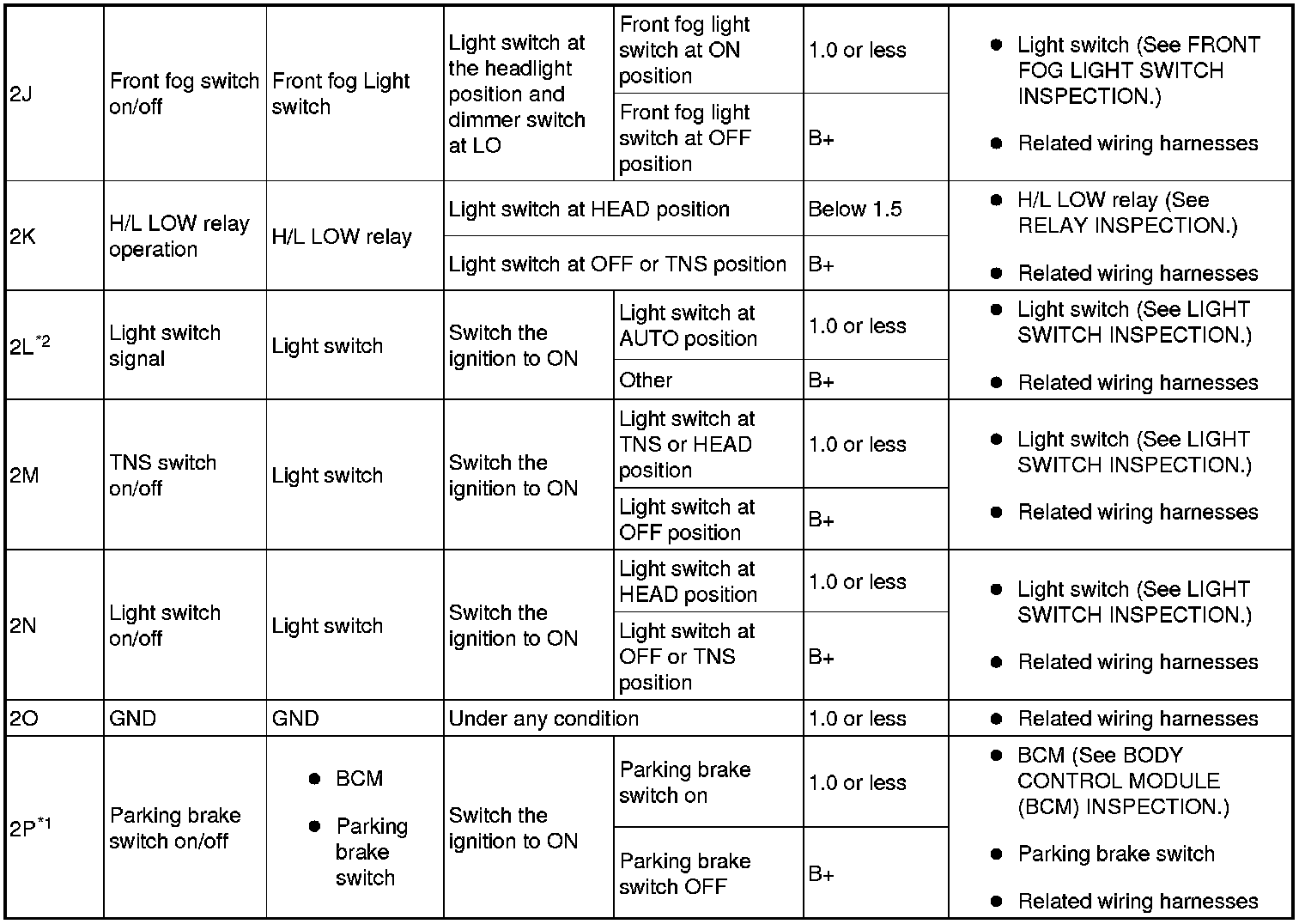

Terminal Voltage List (Reference)

Terminal Voltage List Reference (Part 1):

Terminal Voltage List Reference (Part 2):

Terminal Voltage List Reference (Part 3):

*1
For vehicles with DRL only.
*2
With auto light system
