Keyless Entry System Wiring Diagram [Keyless Entry System]

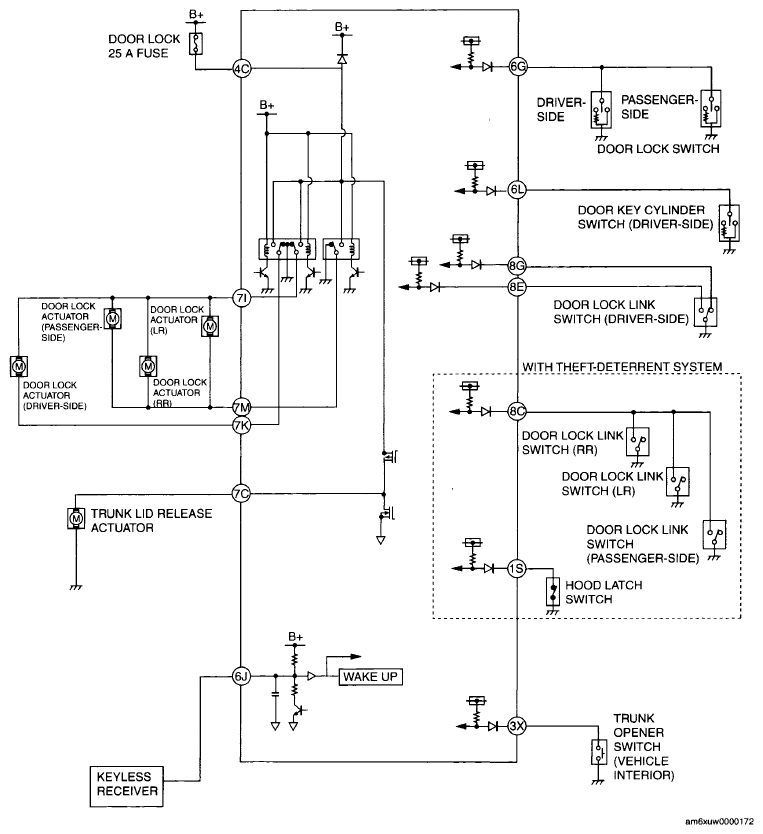

Fig 1: Keyless Entry System Wiring Diagram
G06205675Courtesy of MAZDA MOTORS CORP.
