Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and ABS/TCS HU/CM
  2. Affix protective tape to the connector to prevent brake fluid from entering.
  3. Remove the brake pipe.
  4. Adhere protective tape to the installation area of the ABS/TCS HU/CM brake pipe to prevent foreign material penetration.

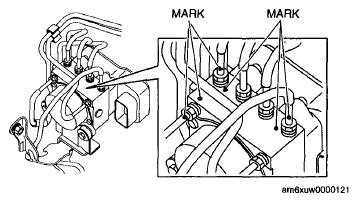

    Fig 1: Identifying Alignment Mark On Brake Pipe And ABS/TCS HU/CM
    G06205560Courtesy of MAZDA MOTORS CORP.
