Abs/TCS Location Index

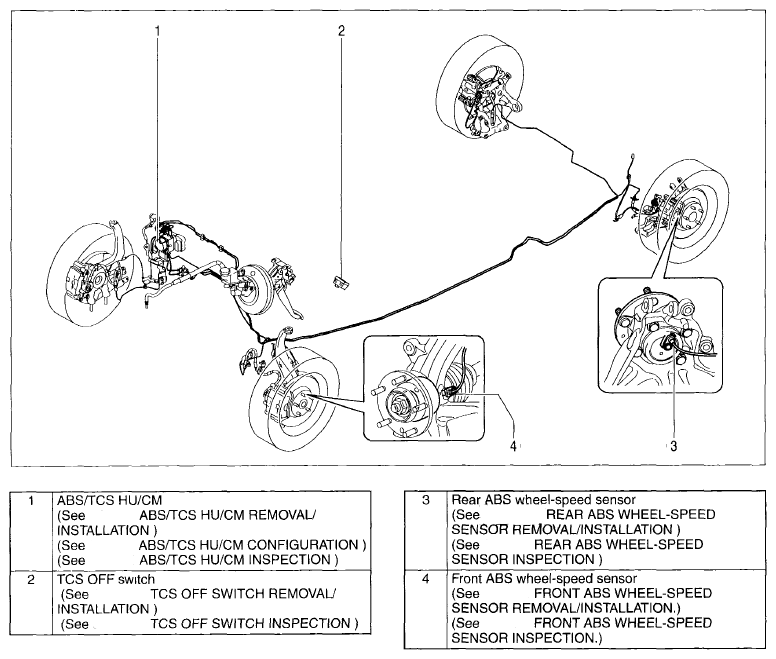

Fig 1: Identifying ABS/TCS Location Index

G06205556

Courtesy of MAZDA MOTORS CORP.
