Front Abs Wheel-Speed Sensor Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, verify that there is no twisting in the ABS wheel-speed sensor.

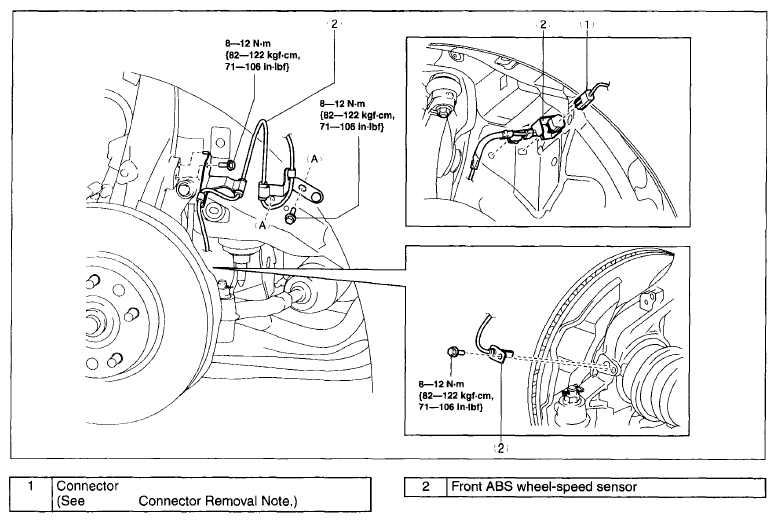

    Fig 1: Identifying Front ABS Wheel-Speed Sensor Removal/Installation Order
    G06205565Courtesy of MAZDA MOTORS CORP.
