TCS Off Switch Inspection
- Remove the TCS OFF switch. See
TCS OFF SWITCH REMOVAL/INSTALLATION .

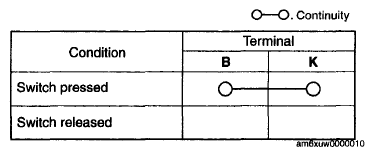

- Verify that the continuity between the TCS OFF switch terminals is as indicated in the table.
- If not as indicated in the table, replace the TCS OFF switch.
Courtesy of MAZDA MOTORS CORP.

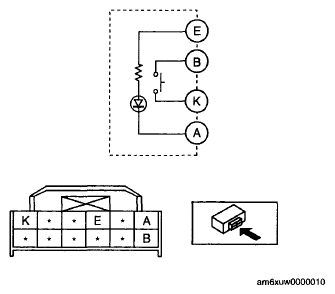

- Apply battery voltage to TCS OFF switch terminal E, and connect terminal A to ground.
- Verify that the LED illuminates.
- If there is any malfunction, replace the TCS OFF switch.
Courtesy of MAZDA MOTORS CORP.
