Connector End Views - Control Systems

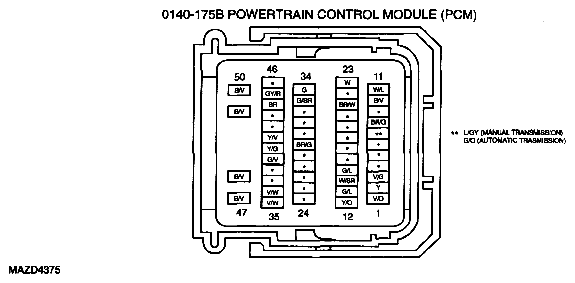

Fig 1: Identifying 0140-175B Powertrain Control Module (PCM) Connector Terminals
G04929077Courtesy of MAZDA MOTORS CORP.

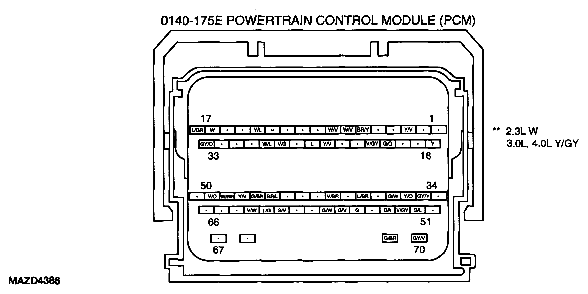

Fig 2: Identifying 0140-175E Powertrain Control Module (PCM) Connector Terminals
G04929096Courtesy of MAZDA MOTORS CORP.

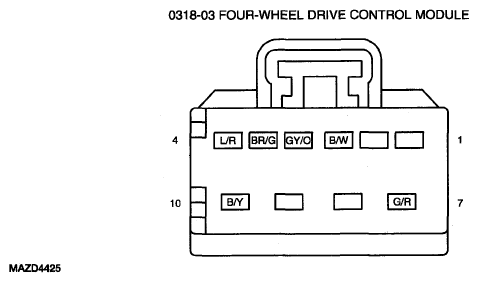

Fig 3: Identifying 0318-03 Four-Wheel Drive Control Module Connector Terminals
G04930281Courtesy of MAZDA MOTORS CORP.

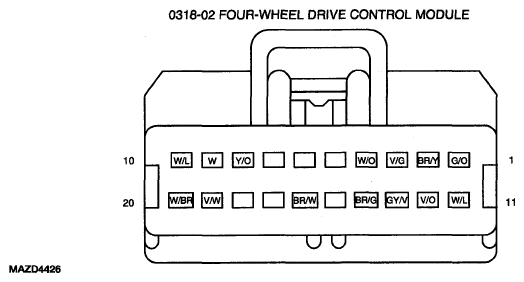

Fig 4: Identifying 0318-02 Four-Wheel Drive Control Module Connector Terminals
G04930280Courtesy of MAZDA MOTORS CORP.

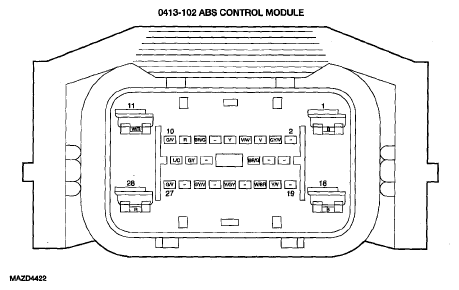

Fig 5: Identifying 0413-102 ABS Control Module Connector Terminals
G04930286Courtesy of MAZDA MOTORS CORP.

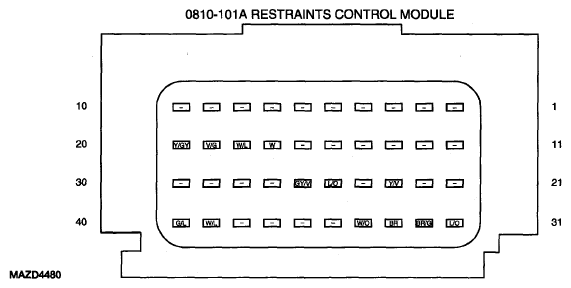

Fig 6: Identifying 0810-101A Restraints Control Module Connector Terminals
G04930829Courtesy of MAZDA MOTORS CORP.

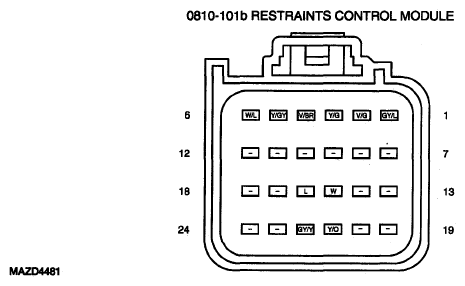

Fig 7: Identifying 0810-101b Restraints Control Module Connector Terminals
G04930830Courtesy of MAZDA MOTORS CORP.

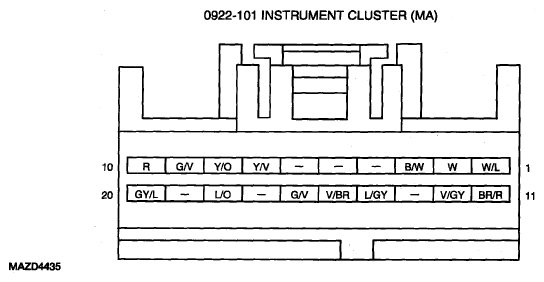

Fig 8: Identifying 0922-101 Instrument Cluster (MA) Connector Terminals
G04930289Courtesy of MAZDA MOTORS CORP.

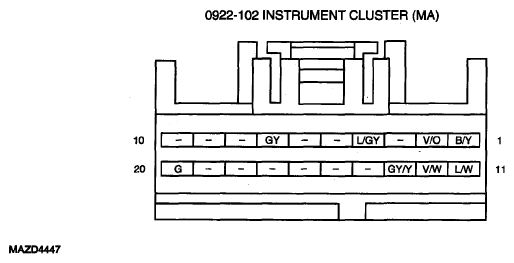

Fig 9: Identifying 0922-102 Instrument Cluster (MA) Connector Terminals
G04930838Courtesy of MAZDA MOTORS CORP.

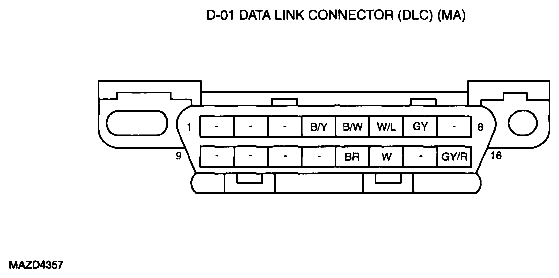

Fig 10: Identifying D-01 Data Link Connector (DLC) (MA) Connector Terminals
G04929026Courtesy of MAZDA MOTORS CORP.

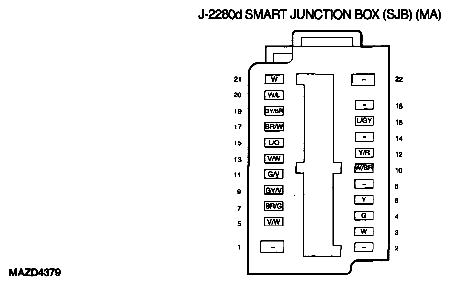

Fig 11: Identifying J-2280d Smart Junction Box (SJB) (MA) Connector Terminals
G04929084Courtesy of MAZDA MOTORS CORP.

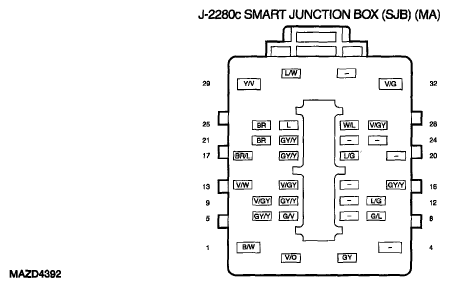

Fig 12: Identifying J-2280c Smart Junction Box (SJB) (MA) Connector Terminals
G04930917Courtesy of MAZDA MOTORS CORP.

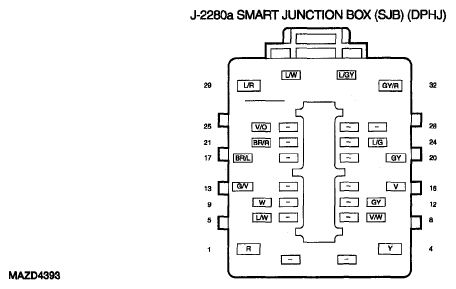

Fig 13: Identifying J-2280a Smart Junction Box (SJB) (DPHJ) Connector Terminals
G04930923Courtesy of MAZDA MOTORS CORP.
