Function Selector Switch Assembly, Front

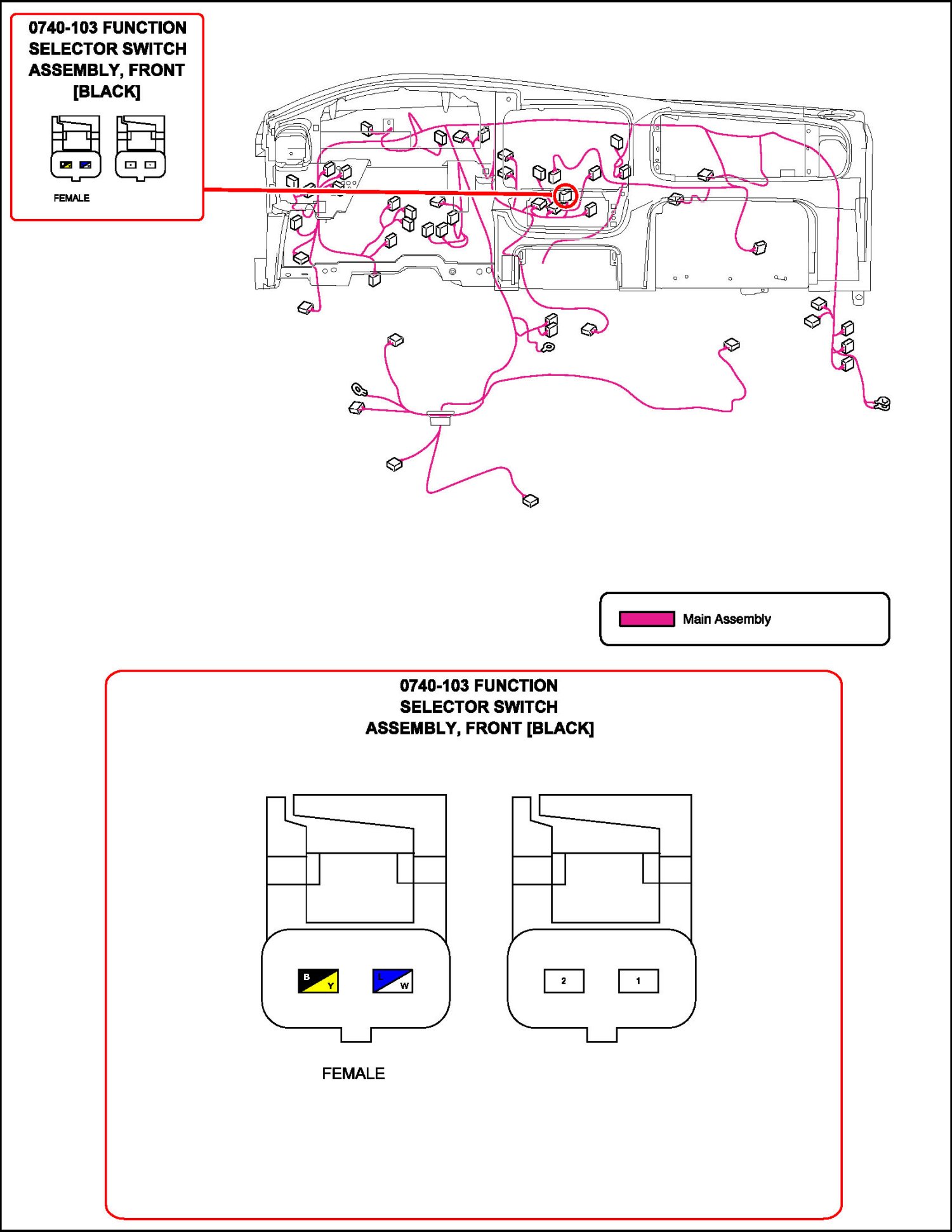

Function Selector Switch Assembly, Front:

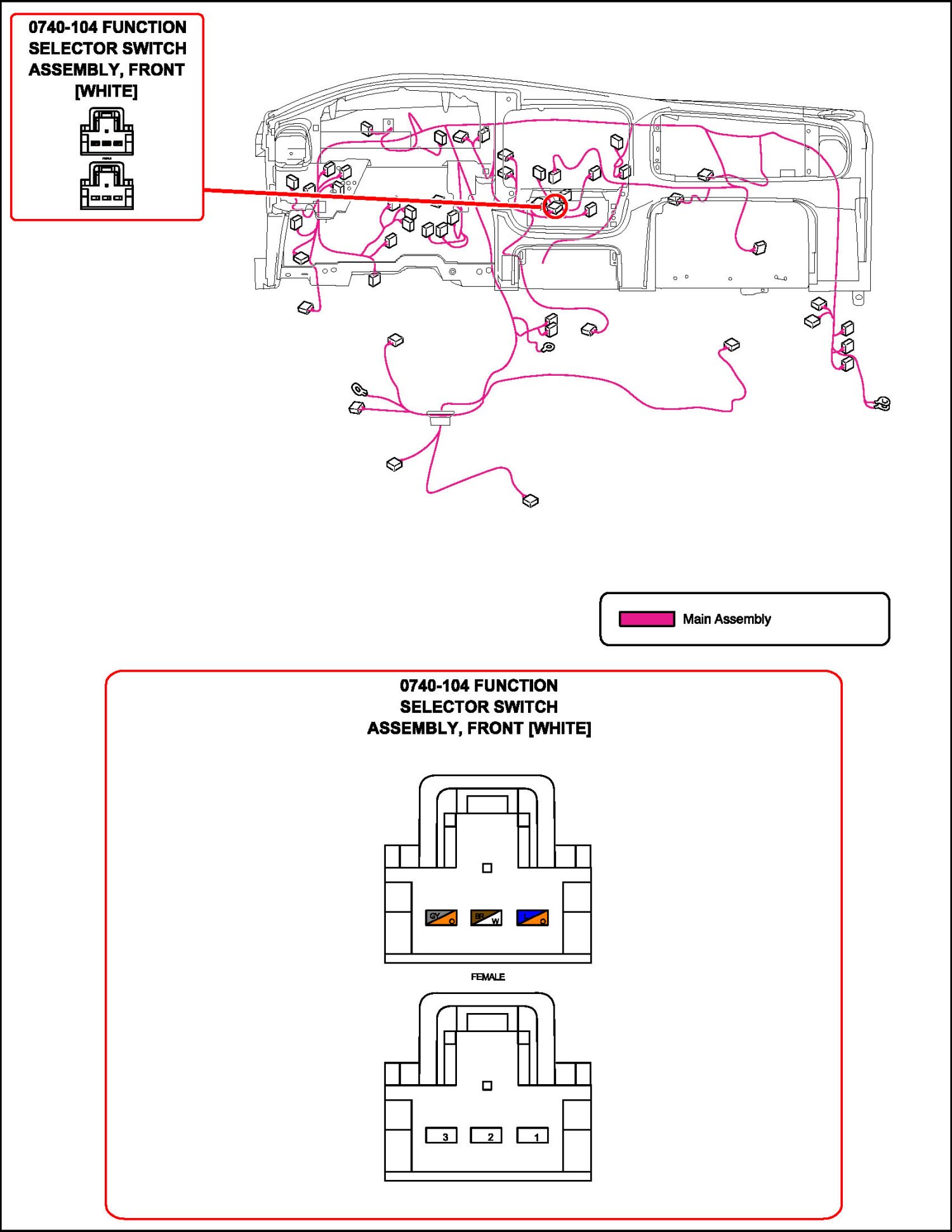

Function Selector Switch Assembly, Front:

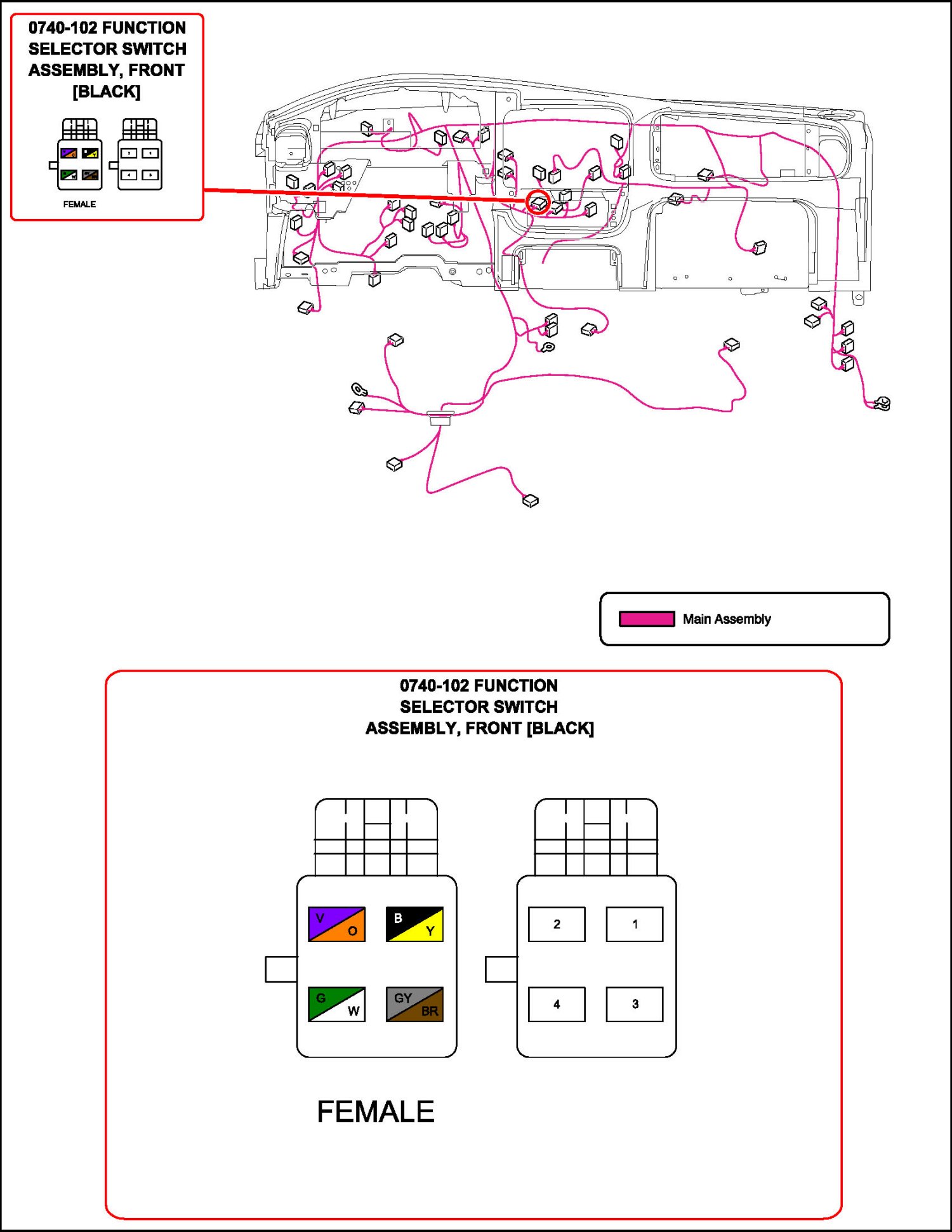

Function Selector Switch Assembly, Front:



Function Selector Switch Assembly, Front:
